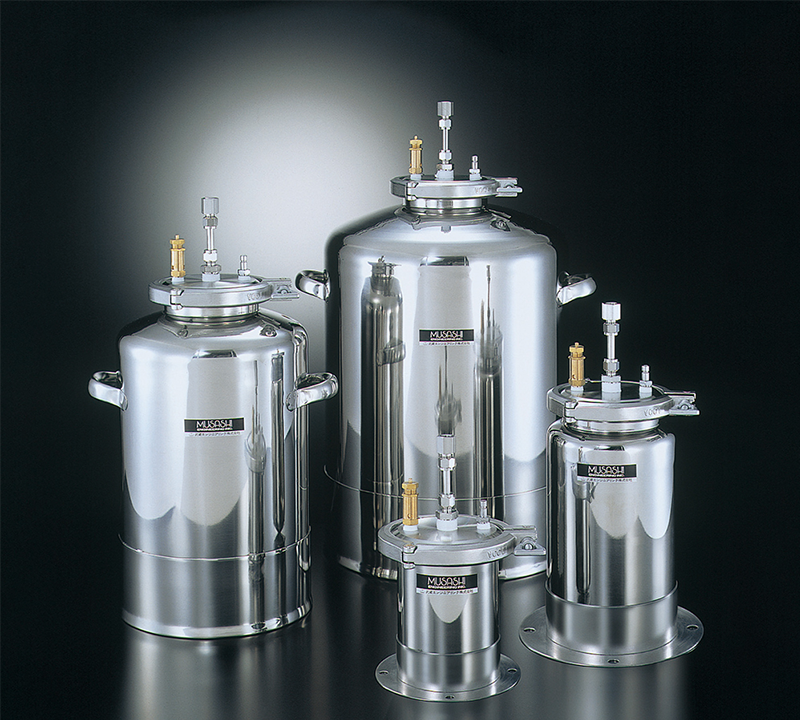

One touch tank Musashi OTT
- The tank has a clamp type lid which allows you to open and close it easily.
- Can be used for a wide range of fluids from low-to highviscosity materials.
- These are fluid material direct feed type tanks.
- Customizable.
Straight one touch tank
＊ The safety valve pressure is set at 0.2/0.5 MPa.

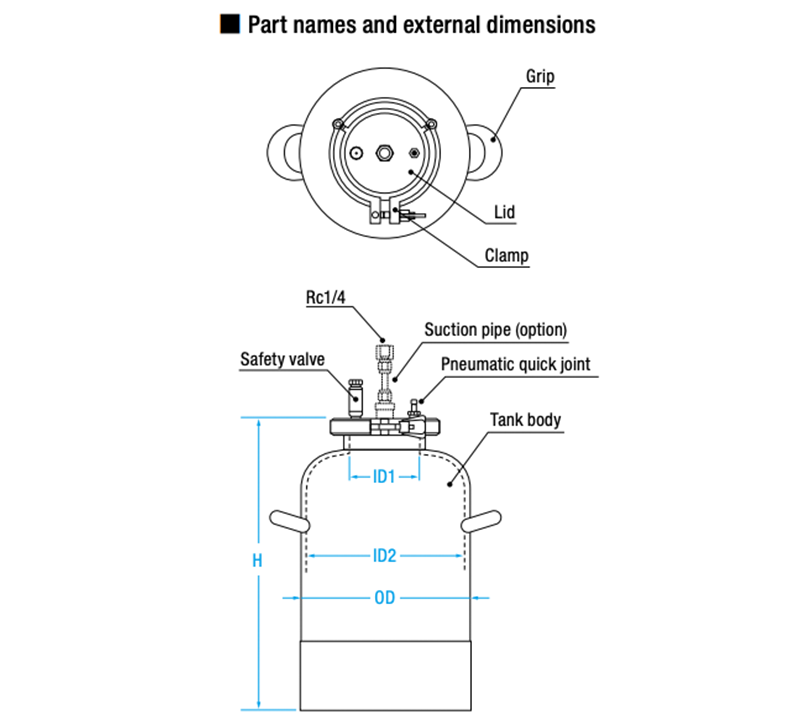

| Capacity (L) | Model | External dimensions (mm) | Weight (kg) | Material | Pressure | Standard accessories | |||
| H | ID | ID2 | OD | ||||||
| 1 | OTT-1 L | 160 | φ108 | φ108 | φ111 | 2.8 | Stainless steel | 0.5 MPa | • Oring (Fluororubber) • Safety valve * • Pneumatic quick joint |
| 2 | OTT-2 L | 280 | φ108 | φ108 | φ111 | 3.2 | |||
| 3 | OTT-3 L | 280 | φ108 | φ150 | φ153 | 3.7 | |||
| 5 | OTT-5 L | 310 | φ108 | φ180 | φ183 | 4.2 | |||
| 10 | OTT-10 L | 400 | φ108 | φ230 | φ283 | 6.3 | |||
| 20 | OTT-20 L | 470 | φ108 | φ279 | φ283 | 9.7 | |||
| 30 | OTT-30 L | 505 | φ108 | φ330 | φ334 | 11.4 | |||
