Sensor
|

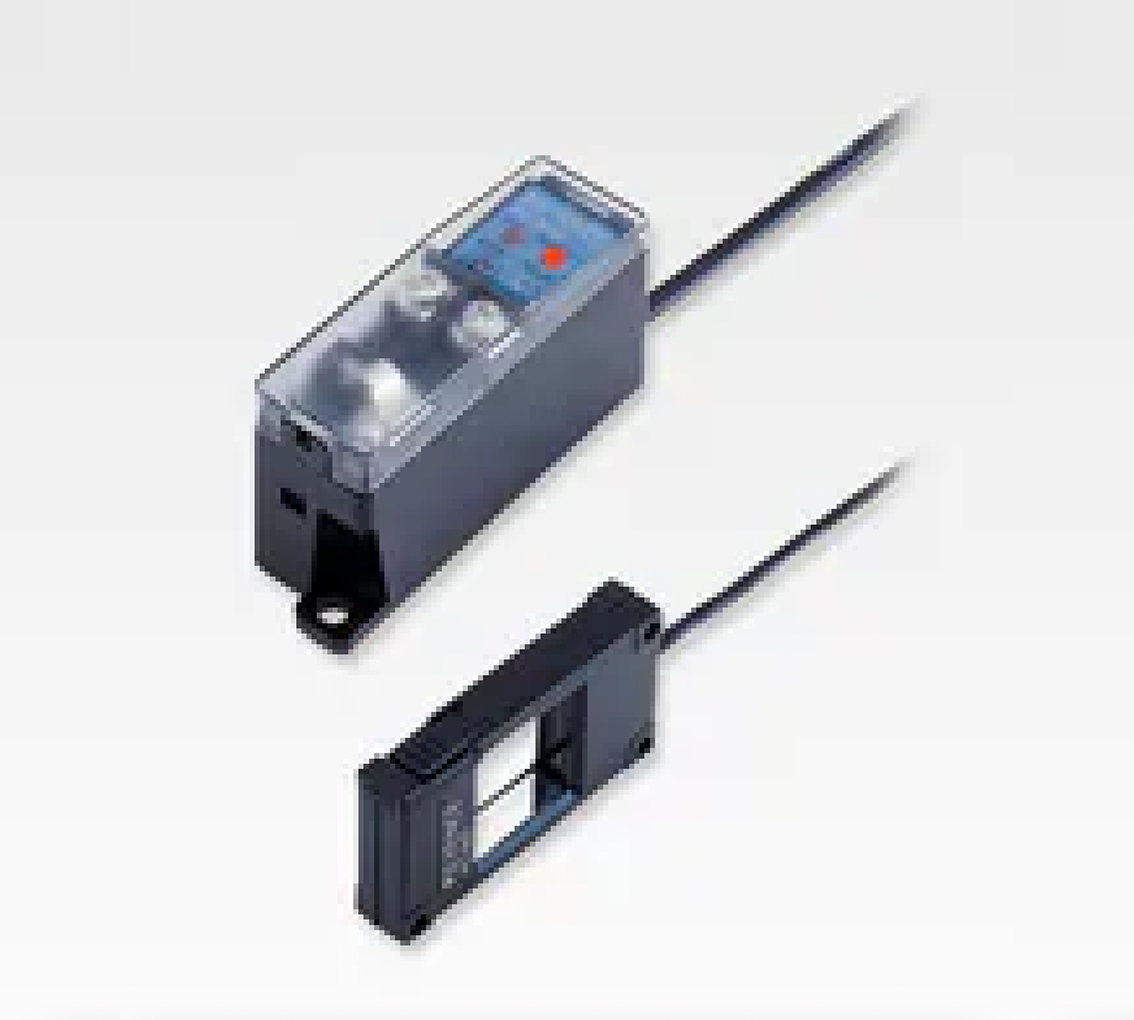

Model |
PG-602 |
|||
|
Type |
Sensor head |
|||
|
Amplifier unit |
PG-610 |
|||
|
Detecting area |
21 x 21 mm 0.83" x 0.83" |
|||
|
Minimum detectable object |
0.5 mm 0.02" dia. min. opaque materials |
|||
|
Light source |
Infrared LED |
|||
|
Sensitivity adjustment |
1-turn trimmer |
|||
|
Indicator lamp |
Output: Red LED, Stable operation: Green LED |
|||
|
Output |
Control output |
NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*1 |
||
|
Self-diagnostic output |
NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*2 |
|||
|
Response time |
0.2 ms*2 |
|||
|
Off-delay time |
0.5 / 70 ms (selectable) |
|||
|
Rating |
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
|
Current consumption |
40 mA or less |
|||
|
Environmental resistance |
Ambient light |
Fluorescent lamp: 10,000 lux max., Sunlight: 1,500 lux max. |
||
|
Ambient temperature |
-10 to +60 °C 14 to 140 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Material |
Polycarbonate |
|||
|
Weight |
Sensor head (including 2-m 6.6' cable): Approx. 40 g, |
|||
|
*1 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP Output Converter. One-shot output (ON when target passes through sensor) |
||||
