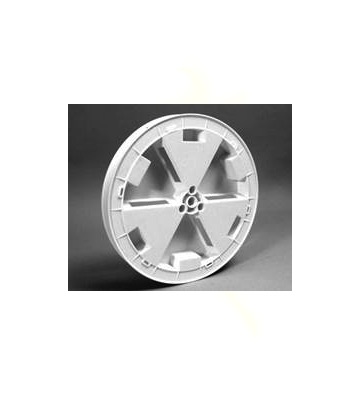

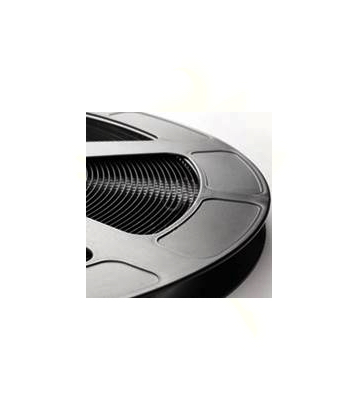

Packaging ReelTo prevent damage to devices during shipping and storage, loaded carrier tape is typically wound onto a plastic take-up reel.
Available in 7", 13", 15", and 22" diameters, Plastlist packaging reel are made from high-impact injection-molded polystyrene (HIPS), offering exceptional mechanical and ESD protection to packaged devices. Every Plastlist packaging reel has a large flange area for increased label space and product protection and are available in most EIA standard carrier tape widths.
| Specification |

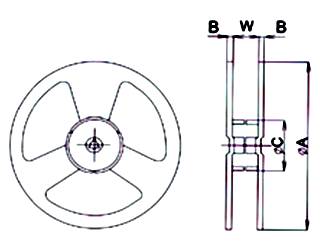

Dimension/mm |
|||
|
A |
W |
C |
B |
|
|
7”*8mm |
178 |
9.0 |
60 |
1.5 |
|
7”*12mm |
178 |
17.5 |
60 |
2.0 |
|
7”*16mm |
178 |
13.5 |
60 |
2.0 |
|
13”*8mm |
330 |
9.0 |
100 |
2.0 |
|
13”*12mm |
330 |
13.5 |
100 |
2.0 |
|
13”*16mm |
330 |
17.5 |
100 |
2.0 |
|
13”*24mm |
330 |
25.5 |
100 |
2.0 |
|
13”*32mm |
330 |
33.5 |
100 |
2.0 |
|
13”*44mm |
330 |
45.5 |
100 |
2.0 |
|
13”*56mm |
330 |
57.5 |
100 |
2.0 |
