| Part Number |
| 11120547 |

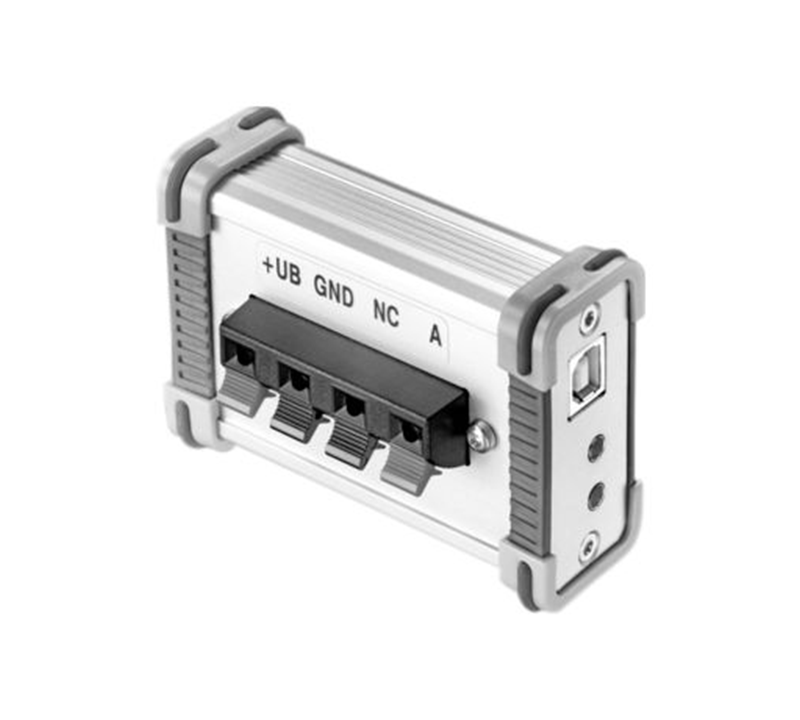

PC Programming Tool Z-PA-EI-P |
| Note: Please order connection cable (see accessories). |
| Scope of Delivery |
| USB Programmer Box, USB cable, CD with Encoder Software |
| Suitable For |
| EIL580P, HS35P, ITD2PH00.2 |
| Accessories |
| Connectors and Cables |
| 11119280 |
Connection cable connector M12 / connector D-SUB, 0.2 m |
| 11119720 |
Connection cable connector M12 / connector D-SUB, 1 m |
| 11119257 |
Connection cable connector M23 / connector D-SUB, 0.2 m (S2BG12/K4SG9) |
| 11119723 |
Connection cable connector M23 / connector D-SUB, 1 m (S2BG12/K4SG9) |
| 11077210 |
Connection cable HS35P with connector MIL, 10-pin / connector D-SUB, 0.5 m |
| 11077212 |
Connection cable HS35P with connector MIL, 7-pin / connector D-SUB, 0.5 m |
| 11072169 |
Connection cable with FCI, 8-pin / wire end sleeves (UL/CSA), 1 m |
| 11079111 |
Connection cable with FCI, 8-pin / D-SUB, 9-pin, 1 m |
| 11135730 |
|
| Programming Accessories |
| 11092084 |
Encoder labels 21.25x15 |
| Technical Data |
| Operating System |
Microsoft Windows 7, 8, 8.1, 10 (others on request) |
| Connection |
Connector D-SUB, 9-pin, female Cable terminals |
| Weight Approx. |
120 g |
| Terminal Assignment |
| Connector D-SUB |
Assignment |
| Pin 1 |
Encoder A+ (A) |
| Pin 2 |
NC |
| Pin 3 |
NC |
| Pin 4 |
Encoder UB (+Vs) |
| Pin 5 |
Encoder GND (0 V) |
| Pin 6 |
NC |
| Pin 7 |
NC |
| Pin 8 |
NC |
| Pin 9 |
NC |
