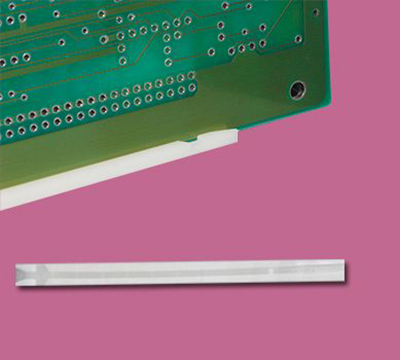

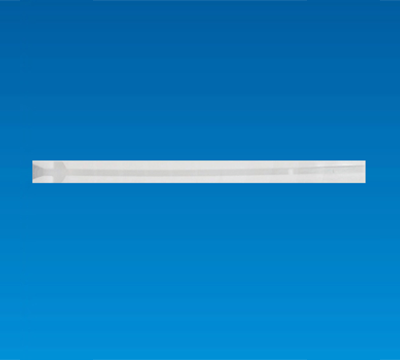

PCB GUIDE RAIL CG-11F
- One end Funnel Design,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-11F
FEATURES
SPECIFICATION
FEATURES
- One end Funnel Design,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

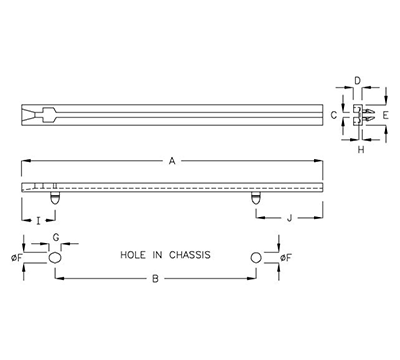

| PART NO | A | B | C | D | E | F | G | H | I | J |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CG-11F
|
115.5
|
77.1
|
1.9
|
3.3
|
7.9
|
4.0
|
4.8
|
1.3
|
12.8
|
25.6
|
1.4
|
100
|
|
CG-192TK
|
92.0
|
67.4
|
1.9
|
3.3
|
7.9
|
4.0
|
4.6
|
1.3
|
12.7
|
11.9
|
1.4
|
