PCB GUIDE RAIL CG-14H
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-14H
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- NO EXTRA SCREW NEEDED

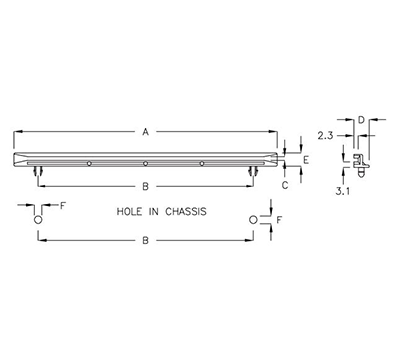

| PART NO | A | B | C | D | E | F | MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
| CG-14H | 140.0 | 114.5 | 1.9 | 8.0 | 7.0 | Ø4.4 | 1.5 | 100 |
