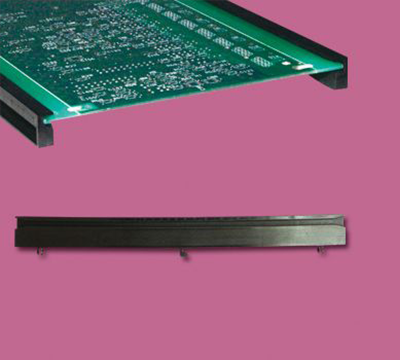

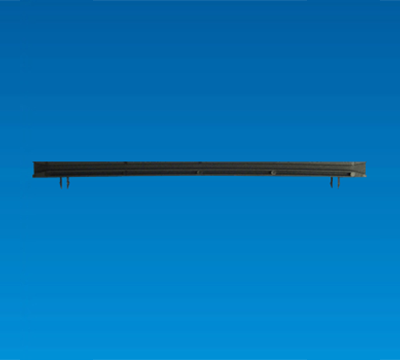

PCB GUIDE RAIL CG-19C
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-19C
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- NO EXTRA SCREW NEEDED
| PART NO | A | B | C | D | E | H |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
| CG-19C | 190.0 | 80.0 | 2.0 | 6.4 | 13.1 | 3.1 | 1.1 |
100
|
