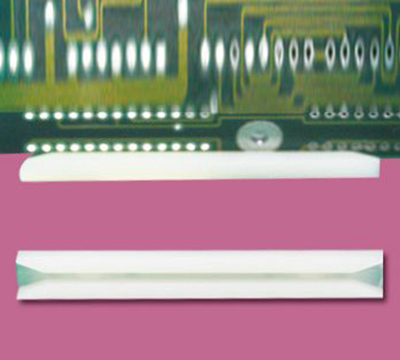

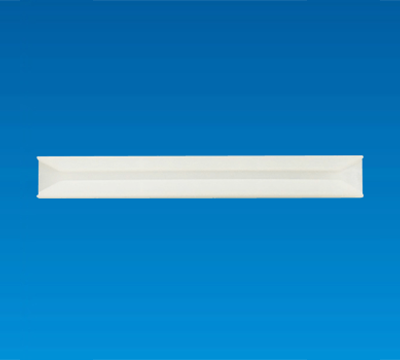

PCB GUIDE RAIL CG-45RK
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-45RK
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

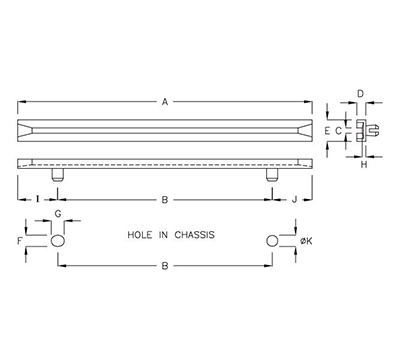

| PART NO | A | B | C | D | E | F | G | H | I | J | K |
CHASSIS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CG-45RK
|
45.0
|
23.0
|
1.9
|
3.3
|
7.9
|
4.5
|
5.1
|
1.3
|
11.0
|
11.0
|
4.6
|
1.4~1.6
|
200
|
|
CG-5C
|
63.5
|
38.1
|
2.3
|
6.4
|
6.4
|
4.5
|
5.1
|
1.3
|
12.7
|
12.7
|
4.5
|
1.2~1.6
|
|
|
CG-6F
|
63.5
|
38.1
|
1.9
|
4.5
|
7.9
|
4.6
|
5.0
|
1.3
|
12.7
|
12.7
|
4.6
|
1.2~1.6
|
|
|
CG-08L
|
88.9
|
63.5
|
1.9
|
4.5
|
7.9
|
4.6
|
5.0
|
1.3
|
12.7
|
12.7
|
4.6
|
1.4~1.6
|
100
|
|
CG-88D
|
88.9
|
63.5
|
1.9
|
3.3
|
7.9
|
4.5
|
5.1
|
1.3
|
12.7
|
12.7
|
4.6
|
1.4~1.6
|
|
|
CG-9AL
|
89.1
|
77.4
|
2.2
|
7.1
|
10.0
|
3.4
|
4.0
|
1.6
|
5.1
|
5.1
|
3.4
|
1.1
|
