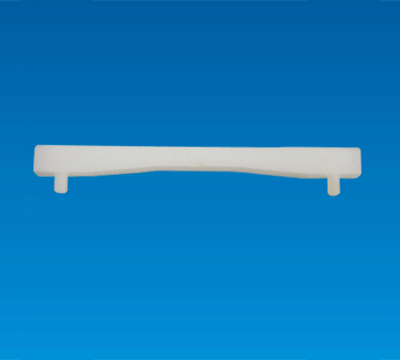

PCB GUIDE RAIL CG-8M

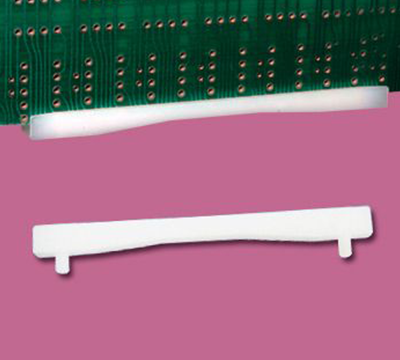

- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-8M
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

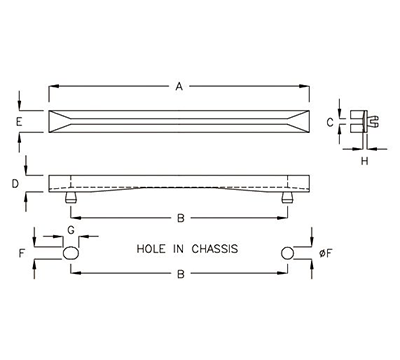

| PART NO | A | B | C | D | E | K | M | N | P | L1 | L2 |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CG-8M
|
81.0
|
65.4
|
2.0
|
8.0
|
10.65
|
6.5
|
5.65
|
5.65
|
33.0
|
27.0
|
38.4
|
1.0
|
100
|
|
CG-10Q
|
101.6
|
75.9
|
1.2
|
7.9
|
7.0
|
4.6
|
3.3
|
3.6
|
41.3
|
35.3
|
40.6
|
1.0
|
