Routering, Drilling & Depaneling

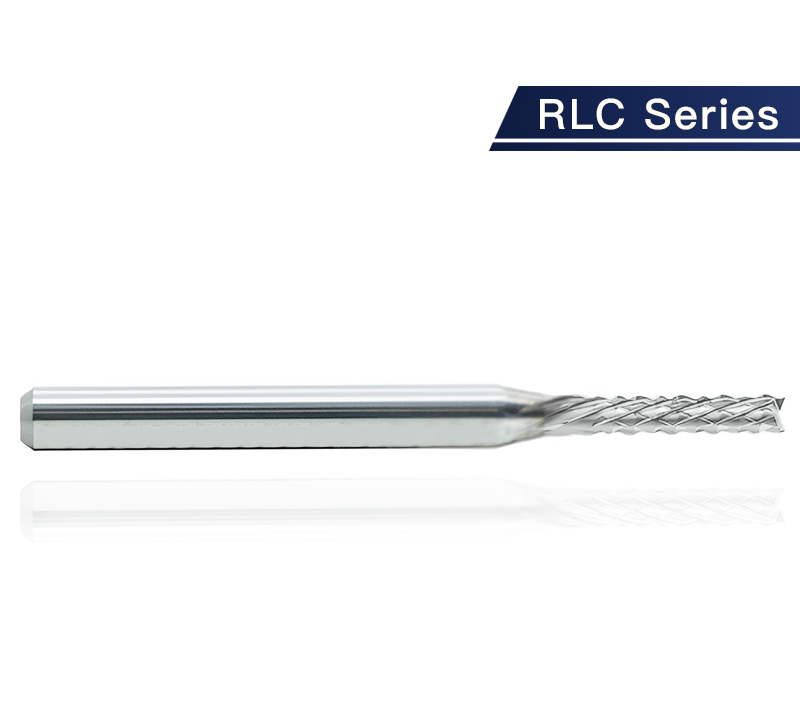

PCB Left Cutting Router Bit
- RLC Series
- For depaneling PCB board assembled (with components already)

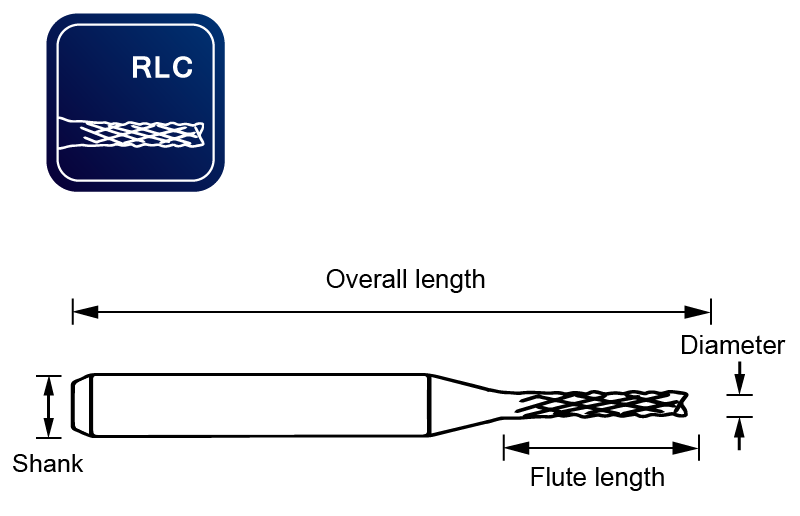

Unit: mm
|
Product |
Overall Length |
Shank Diameter |
Flute Diameter |
Flute Length |
|
PCB Left Cutting Router Bit RLC Series
|
38.1 |
3.175 |
0.8 |
4.0 |
|
38.1 |
3.175 |
1.0 |
5.0 |
|
|
38.1 |
3.175 |
1.0 |
7.0 |
|
|
38.1 |
3.175 |
1.2 |
5.0 |
|
|
38.1 |
3.175 |
1.2 |
8.0 |
|
|
38.1 |
3.175 |
1.5 |
7.0 |
|
|
38.1 |
3.175 |
1.5 |
8.0 |
|
|
38.1 |
3.175 |
1.8 |
8.5 |
|
|
38.1 |
3.175 |
1.8 |
9.5 |
|
|
38.1 |
3.175 |
2.0 |
7.0 |
|
|
38.1 |
3.175 |
2.0 |
9.0 |
|
|
38.1 |
3.175 |
2.0 |
10.0 |
