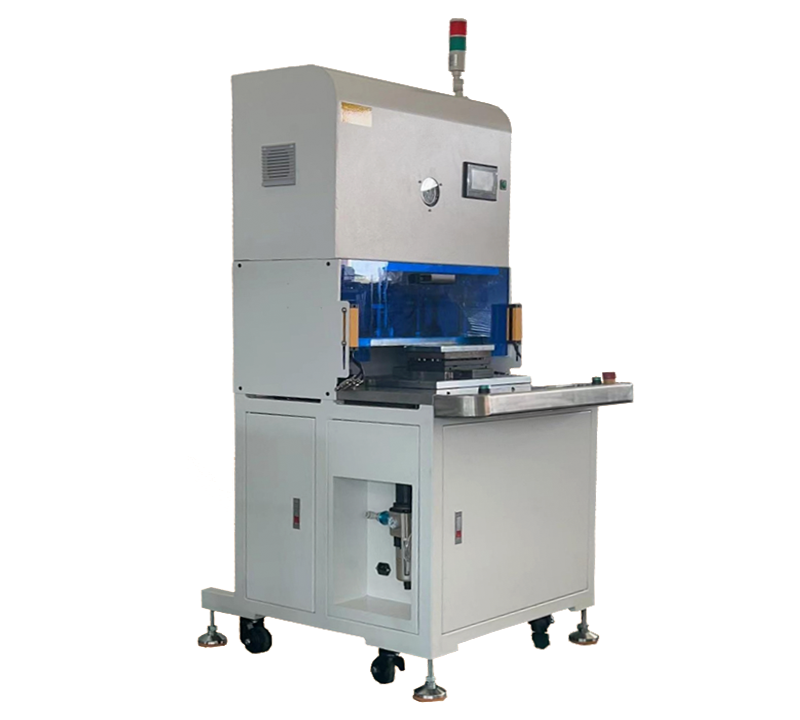

PCB Punching Machine

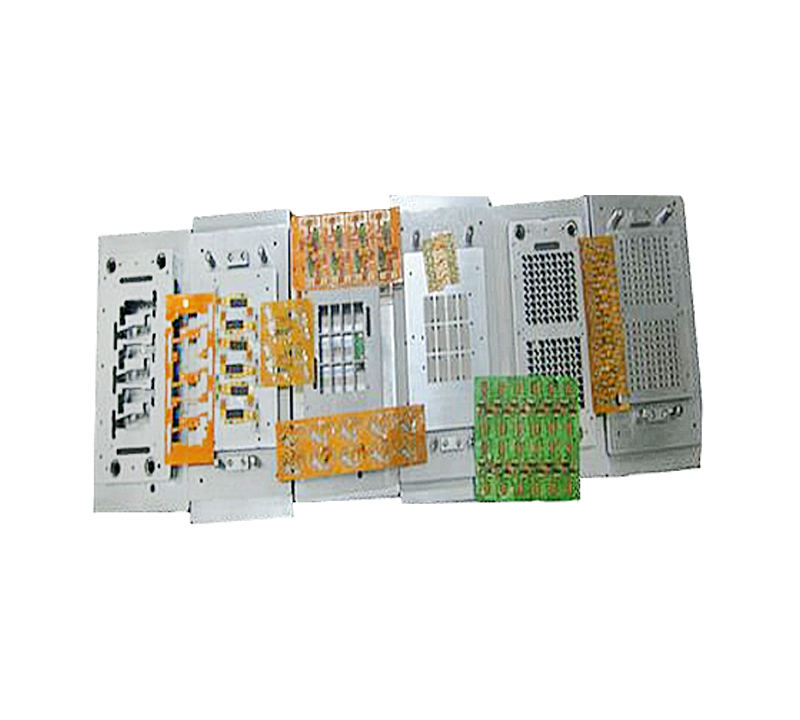

It is convenient to change the punching tool(die),
The touch screen need a special password for changing the die to ensure the safety of operation.
The touch screen need a special password for changing the die to ensure the safety of operation.
Features
Specification
- With high and low air pressure alarm function to ensure consistent punching products
- With accurate counting function, it is convenient to count daily output and total output
- The characteristic features of Pneumatic power is quiet, no oil pollution, energy saving, environmental protection,and easy maintenance;
- Small punching stress to avoid tin cracks, cracks, curling, burrs...
- The stamping efficiency of semi-finished PCB and FPC is high, with a stamping cycle of 7.5 seconds.
Specification
| PCB panel size | 330mm × 220mm |
| Maxi size of PCB (mm) | 322 × 322 |
| Use air pressure | 0.4MPa-0.7MPa |
| Braking method | emergency stop switch |
| Cutting accuracy | ± 0.1mm |
| Punching cycle time | 7.5 seconds |
| Working characteristics | LCD display screen, automatic recording of the number of processed products, automatic punching |
| Movement mode | lower die automatically enters, punching, lower die automatically exits |
| Stamping sheet thickness | 0.08-3.5MM |
| Cutting method | punching |
| Transmission port | international standard |
| Command system | international standard command system |
| Operating language | English |
| Voltage | 220V or 110V, Fuse specification: 3A |
| Composition | main table, booster cylinder, chassis |
| Application | PCB, FR-4 (glass fiber cloth CEM-1/3) composite substrate of glass fiber and paper, etc. |
| Punch die | hardware die |
| Die formulation | according to PCB drawings and physical parts board |
