Routering, Drilling & Depaneling

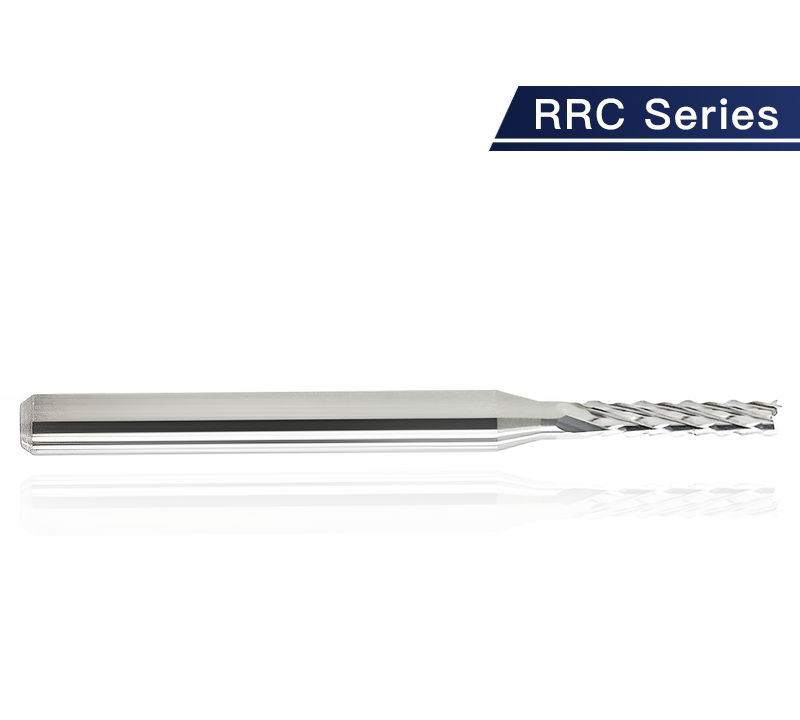

PCB Right Cutting Router Bit
- RRC Series
- For Metal Core PCB (MCPCB), FR-4, FR-5, BT
|

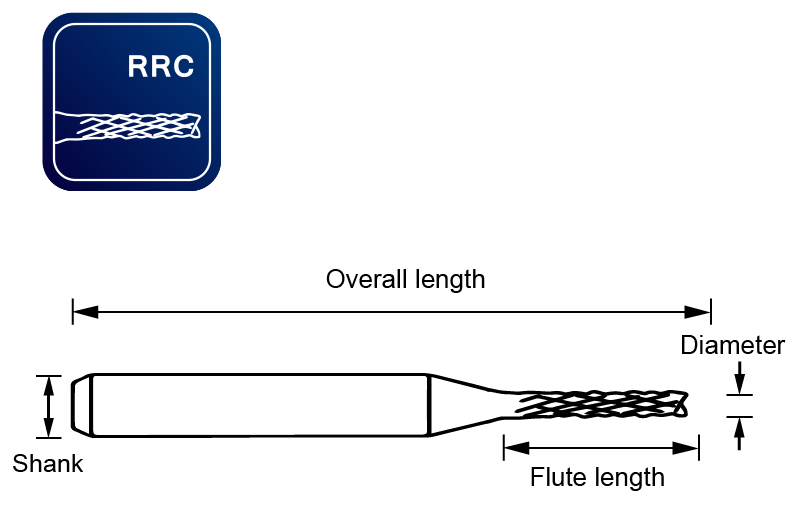

Product |
Overall Length |
Shank Diameter |
Flute Diameter |
Flute Length |
|
PCB Router Bit RRC Series |
38.1 |
3.175 |
0.80 |
5.6 |
|
38.1 |
3.175 |
0.80 |
6.0 |
|
|
38.1 |
3.175 |
0.90 |
6.0 |
|
|
38.1 |
3.175 |
0.94 |
6.0 |
|
|
38.1 |
3.175 |
0.94 |
7.0 |
|
|
38.1 |
3.175 |
1.00 |
5.0 |
|
|
38.1 |
3.175 |
1.00 |
7.5 |
|
|
38.1 |
3.175 |
1.10 |
7.0 |
|
|
38.1 |
3.175 |
1.20 |
7.5 |
|
|
38.1 |
3.175 |
1.30 |
7.5 |
|
|
38.1 |
3.175 |
1.40 |
8.0 |
|
|
38.1 |
3.175 |
1.50 |
8.0 |
|
|
38.1 |
3.175 |
1.60 |
8.0 |
|
|
38.1 |
3.175 |
1.70 |
8.0 |
|
|
38.1 |
3.175 |
1.80 |
9.0 |
|
|
38.1 |
3.175 |
1.90 |
9.5 |
|
|
38.1 |
3.175 |
1.90 |
10.5 |
|
|
38.1 |
3.175 |
2.00 |
10.0 |
|
|
38.1 |
3.175 |
2.10 |
10.0 |
|
|
38.1 |
3.175 |
2.10 |
10.5 |
|
|
38.1 |
3.175 |
2.20 |
10.5 |
|
|
38.1 |
3.175 |
2.30 |
10.5 |
|
|
38.1 |
3.175 |
2.40 |
10.5 |
