Dispensing

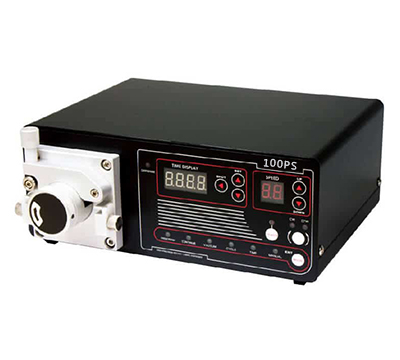

Peristaltic Glue Dispensing Controller 100PS
RT-100 is for low viscosity material use only, such as cyanoacrylate adhesives, UV adhesives.
Features
- Easy function setting and operating, save cost.
- Smart design for changing tube easy.
- No air source required.
- With teaching and program memory saving function.
- Compatible with DT series robot.
- Fully range input power.
- One year warranty.
Specification
| Model | 100PS |
|---|---|
| Speed | 0.01 ~ 6 ml / min 0.1 ~ 20 ml / min |
| Motor Speed | ~ MAX 120 rpm |
| Rotor Way | CW / CCW |
| Shot Time Range | 0.01 ~ 99.99 sec |
| Input Voltage | 12 VDC / 1A |
| Size (WxLxH mm) | 210 x 150 x 80 |
| Weight | 3.5 kg |
