Piston control valve Musashi Mini Val PCV-12
The standard for preventing fluid drips and blockages
- Prevents fluid drips and blockages with suck back mechanism.
- Diaphragm structure prevents fluid material from entering sliding parts.
- The square-shaped, compact and lightweight valves are ideal for use with automated equipment.
- Valve controller: ME-5000VT
- PCV-12-2P

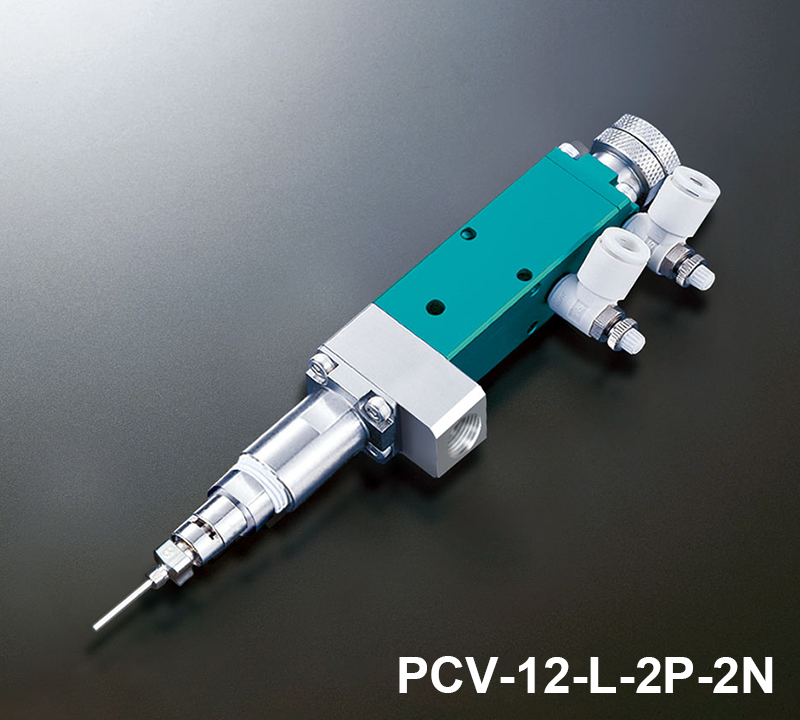

- PCV-12-L-2P-2N
| Model | PCV-12-2P | PCV-12-L-2P-2N |
|---|---|---|
| Driving system | Pneumatic driven system | Pneumatic driven system |
| Minimum dispensing amount | 18 µL | 19 µL |
| Compatible viscosity | Up to 100 Pa·s | Up to 100 Pa·s |
| Control air supply pressure range | 0.35 to 0.6 MPa | 0.35 to 0.6 MPa |
| Fluid material supply pressure range | Max. 0.5 MPa | Max. 0.5 MPa |
| Maximum number of cycles | 580 times/min. | 580 times/min. |
| Fluid intake port | Rc1/8 (fluid feed joint ordered separately) | Rc1/4 (fluid feed joint ordered separately) |
| Fluid dispensing port | Luer lock | Luer lock |
| Control air | One-touch joint for φ6 outer diameter tube (with speed controller) | One-touch joint for φ6 outer diameter tube (with speed controller) |
| Operating temperature range | 5 to 60°C | 5 to 60°C |
| Wetted part material | Stainless steel, Fluorine resin, Brass | Stainless steel, Fluorine resin, Brass |
| Weight | 212 g | 240 g |
