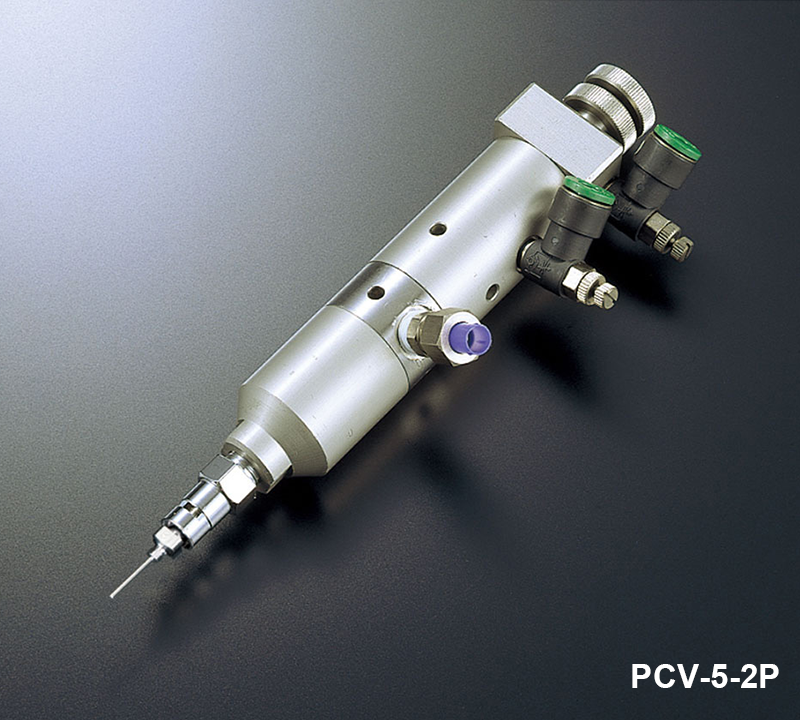

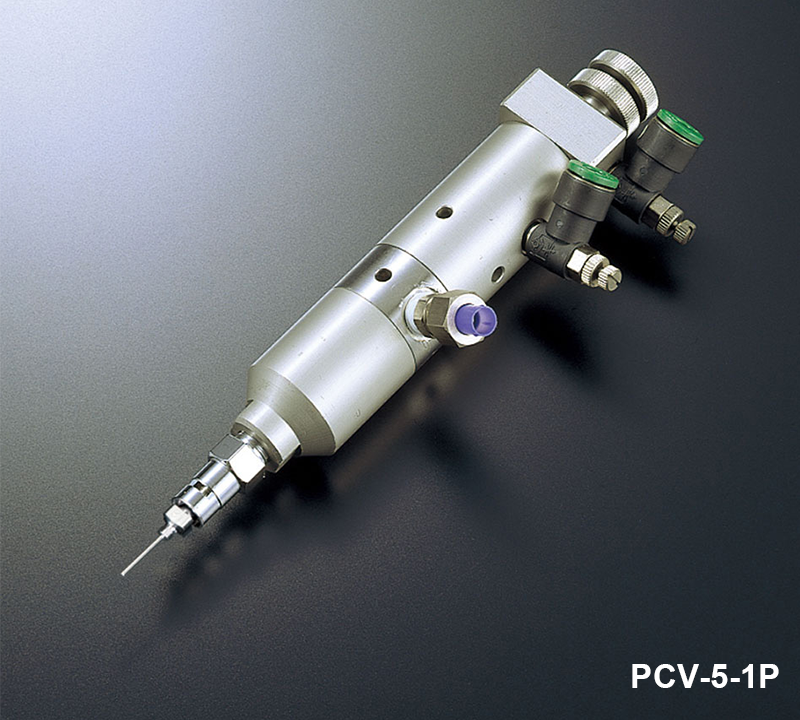

Piston control valve Musashi PCV-5-2P PCV-5-1P

Model	PCV-5-2P	PCV-5-1P
Driving system	Pneumatic driven system	Pneumatic driven system
Minimum dispensing amount	52 µL	53 µL
Compatible viscosity	Up to 100 Pa·s	Up to 100 Pa·s
Applicable fluid materials	Any viscosity fluid	Any viscosity fluid
Control air supply pressure range	0.3 to 0.7 MPa	0.3 to 0.7 MPa
Fluid material supply pressure range	MAX. 0.7 MPa	MAX. 0.7 MPa
Maximum number of cycles	570 times/min.	460 times/min.
Fluid intake port	Rc1/8 (fluid feed joint ordered separately)	Rc1/8 (fluid feed joint ordered separately)
Fluid dispensing port	Luer lock	Luer lock
Control air	One-touch joint for φ6 outer diameter tube (with speed controller)	One-touch joint for φ6 outer diameter tube (with speed controller)
Operating temperature range	5 to 60°C	5 to 60°C
Wetted part material	Stainless steel, Fluorine resin, Brass	Stainless steel, Fluorine resin, Brass
Weight	350 g	400 g

Note: The dispensing volume, compatible viscosity and material type, and max. response count shown in the specifications above are only for reference.
