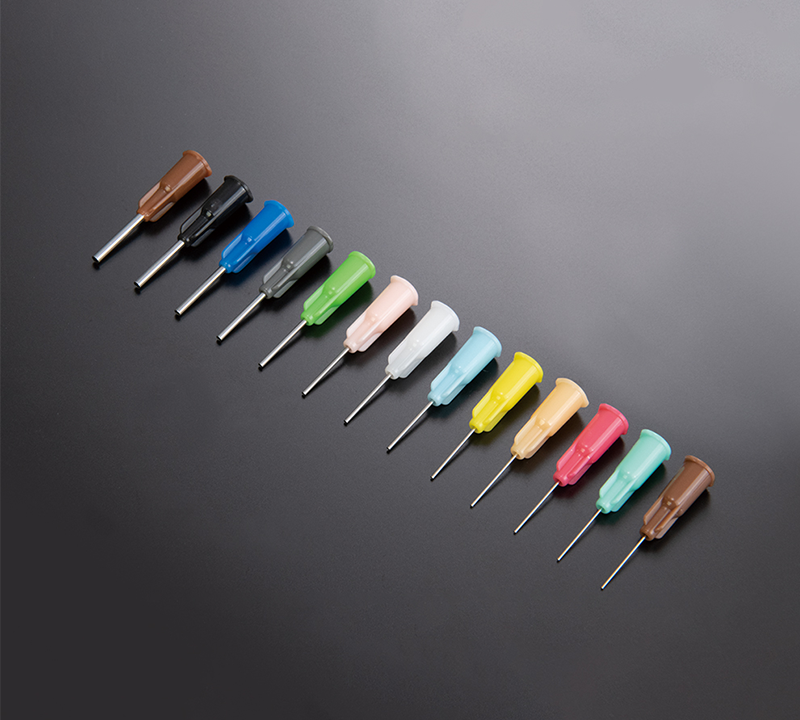

Plastic needles Musashi PN

Gauge	Needle length 8 mm Model	Needle length 13 mm Model	Needle OD (φ)	Needle ID (φ)	Color	Minimum Order Quantity
15	PN-15G-A	PN-15G-B	1.82	1.43	●Brown	50
16	PN-16G-A	PN-16G-B	1.65	1.26	●Black	50
17	PN-17G-A	PN-17G-B	1.50	1.06	●Blue	50
18	PN-18G-A	PN-18G-B	1.27	0.97	●Gray	50
19	PN-19G-A	PN-19G-B	1.08	0.78	●Light green	50
20	PN-20G-A	PN-20G-B	0.90	0.66	●Light pink	50
21	PN-21G-A	PN-21G-B	0.81	0.57	○White	50
22	PN-22G-A	PN-22G-B	0.72	0.47	●Light blue	50
23	PN-23G-A	PN-23G-B	0.64	0.40	●Yellow	50
24	PN-24G-A	PN-24G-B	0.56	0.31	●Ivory	50
25	PN-25G-A	PN-25G-B	0.51	0.29	●Rose	50
26	PN-26G-A	PN-26G-B	0.46	0.25	●Peacock green	50
27	PN-27G-A	PN-27G-B	0.41	0.20	●Brown	50

Note
For specifying needle length, the length from needle base should be notified. Contact our sales department for further information.
