    HomeAutomation & FacilityI/Os and fieldbus systemsPlugs for Pluggable Terminal Blocks TLP Series

    I/Os and fieldbus systems

    Plugs for pluggable terminal blocks TLP Series

    Part No.:
    TLPHS-112
    TLPHSW-112
    TLPHSWA-112
    TLPHS-304
    TLPHSW-304
    TLPHSWA-304

    add to cart Inquiry Now
    guide

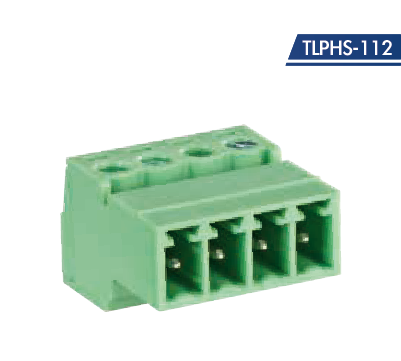

    TLPHS-112

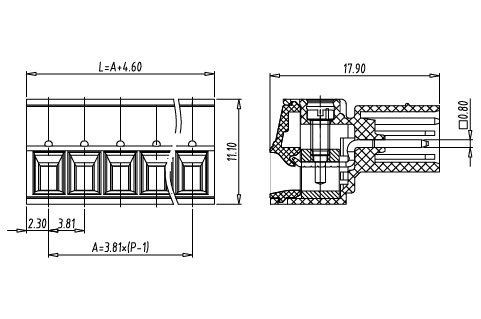

    TLPHS-112-2
    Technical data
    Pitch 3.81mm
    Approval icoc-01 VDE(Applying)
    Rated voltage 300V 160V
    Rated current 8A 8A
    Wire range 30-14AWG 0.2-1.5mm2
    Screw M2
    Part Number
    Poles Model
    02 TLPHS-112-02P
    : :
    24 TLPHS-112-24P

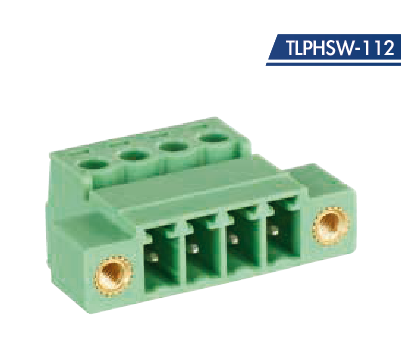

    TLPHSW-112

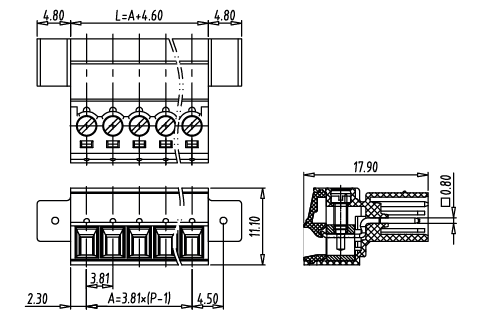

    TLPHSW-112-2
    Technical data
    Pitch 3.50mm(3.81mm)
    Approval icoc-01 VDE(Applying)
    Rated voltage 300V 160V
    Rated current 8A 8A
    Wire range 30-14AWG 0.2-1.5mm2
    Screw M2
    Part Number
    Poles Model
    02 TLPHSW-112-02P
    : :
    24 TLPHSW-112-24P

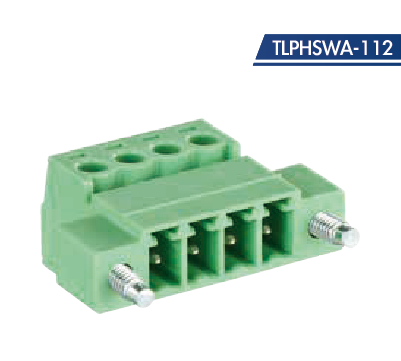

    TLPHSWA-112

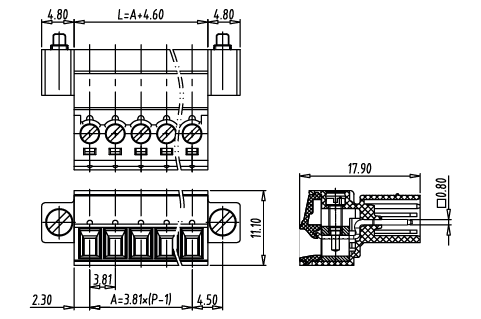

    TLPHSWA-112-2
    Technical data
    Pitch 3.50mm(3.81mm)
    Approval icoc-01 VDE(Applying)
    Rated voltage 300V 160V
    Rated current 8A 8A
    Wire range 30-14AWG 0.2-1.5mm2
    Screw M2
    Part Number
    Poles Model
    02 TLPHSWA-112-02P
    : :
    24 TLPHSWA-112-24P

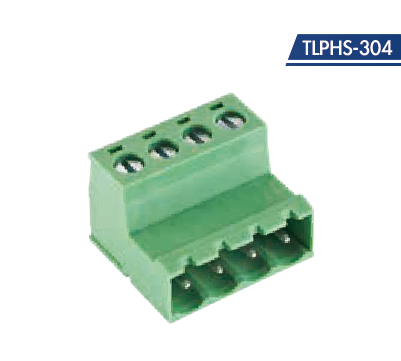

    TLPHS-304

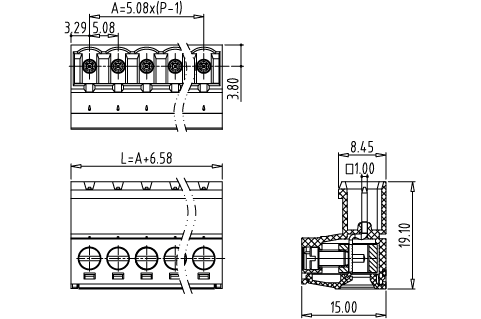

    TLPHS-304-2
    Technical data
    Pitch 5.08mm
    Approval icoc-01 IEC(Applying)
    Rated voltage 300V 320V
    Rated current 20A 20A
    Wire range 30-12AWG  0.2-2.5mm2 sol/str 4mm2 sol
    Screw M3
    Part Number
    Poles Model
    02 TLPHS-304-02P
    : :
    24 TLPHS-304-24P

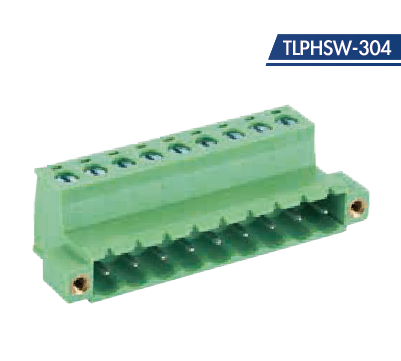

    TLPHSW-304
    TLPHSW-304-2
    Technical data
    Pitch 5.08mm
    Approval icoc-01 IEC(Applying)
    Rated voltage 300V 320V
    Rated current 20A 20A
    Wire range 30-14AWG 0.2-2.5mm2 sol/str 4mm2 sol
    Screw M3
    Part Number
    Poles Model
    02 TLPHSW-304-02P
    : :
    24 TLPHSW-304-24P
    TLPHSWA-304

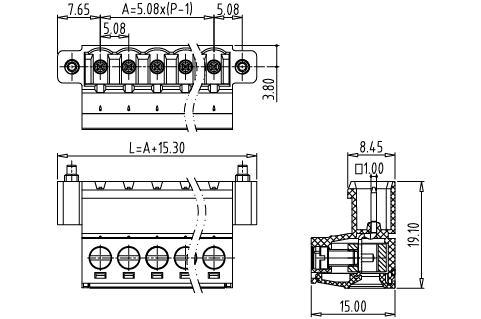

    TLPHSWA-304-2
    Technical data
    Pitch 5.08mm
    Approval icoc-01 IEC(Applying)
    Rated voltage 300V 320V
    Rated current 20A 20A
    Wire range 30-12AWG 0.2-2.5mm2 sol/str 4mm2 sol
    Screw M3
    Part Number
    Poles Model
    02 TLPHSWA-304-02P
    : :
    24 TLPHSWA-304-24P
