Plugs for pluggable terminal blocks TLP Series
Part No.:
TLPS-001V(TLPS-100V)
TLPSW-001V(TLPSW-100V)
TLPS-001R(TLPS-100R)
TLPSW-001R(TLPSW-100R)
TLPS-001RL(TLPS-100RL)
TLPSW-001RL(TLPSW-100RL)

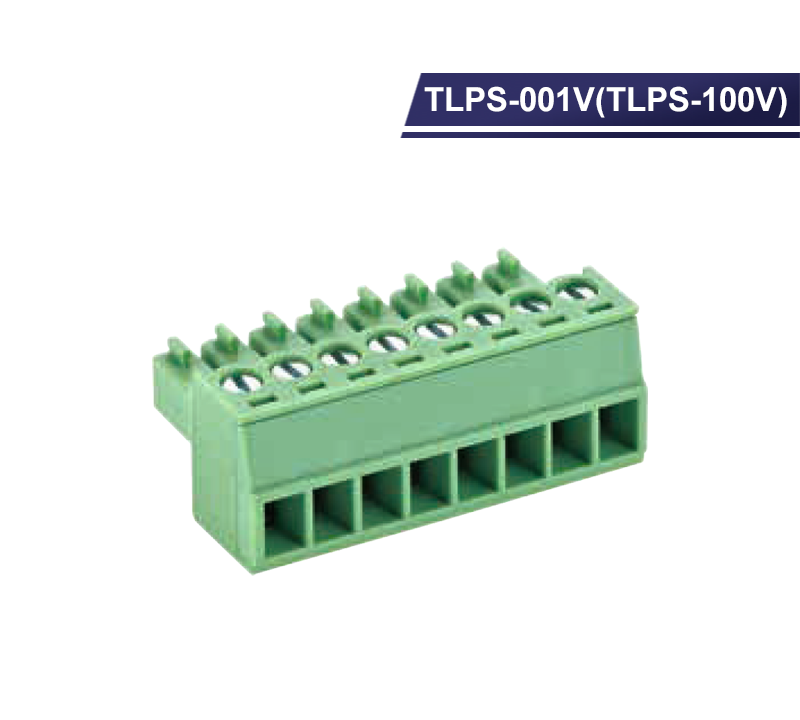

TLPS-001V(TLPS-100V)
TLPSW-001V(TLPSW-100V)
TLPS-001R(TLPS-100R)
TLPSW-001R(TLPSW-100R)
TLPS-001RL(TLPS-100RL)
TLPSW-001RL(TLPSW-100RL)

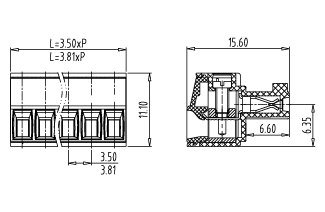

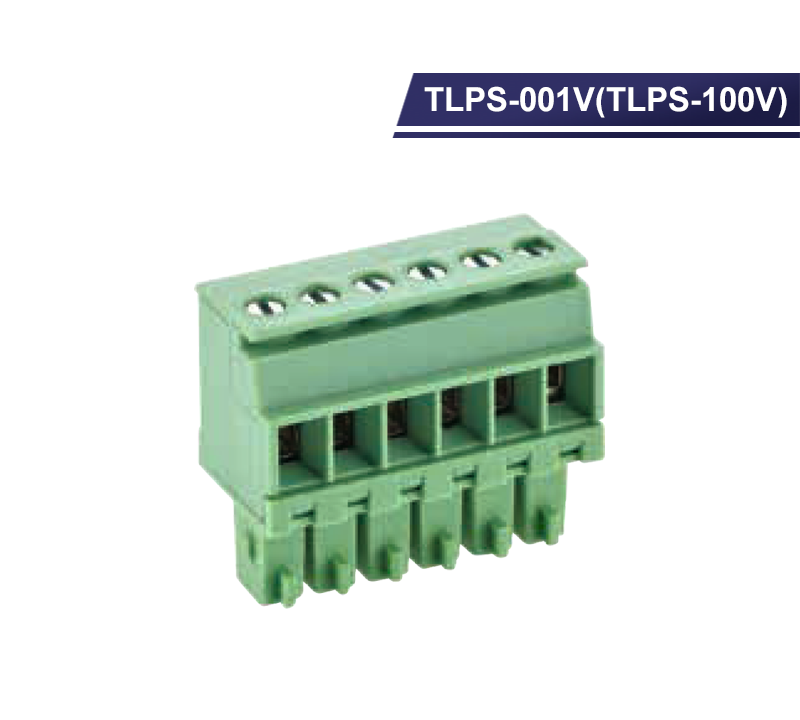

.png "TLPS-001V(TLPS-100V)") |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval |  |
 |
| Rated voltage | 300V | 150V |
| Rated current | 8A | 10A |
| Wire range | 30-14AWG | 1.5mm2 |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-001V-02P (TLPS-100V-02P) |
|
| : | : | |
| 24 | TLPS-001V-24P (TLPS-100V-24P) |
|

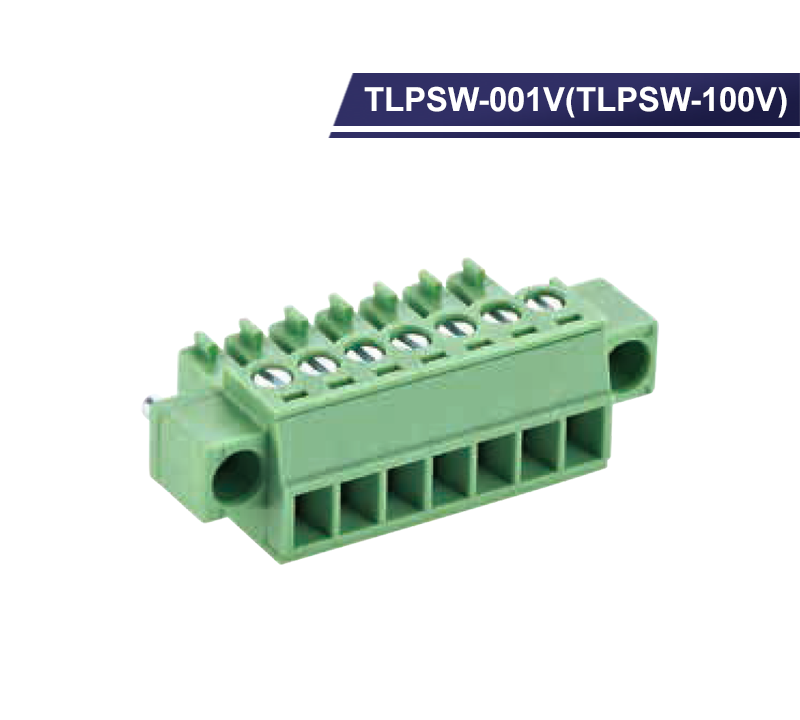

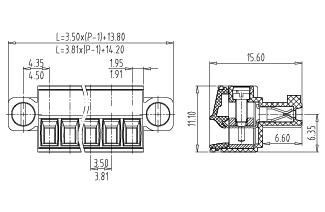

.png "TLPSW-001V(TLPSW-100V)") |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | 150V |
| Rated current | 8A | 10A |
| Wire range | 30-14AWG | 1.5mm2 |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-001V-02P (TLPSW-100V-02P) |
|
| : | : | |
| 24 | TLPSW-001V-24P (TLPSW-100V-24P) |
|

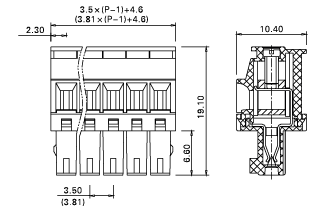

.png "TLPS-001R(TLPS-100R)") |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | |
| Rated current | 8A | |
| Wire range | 30-14AWG | |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-001R-02P (TLPS-100R-02P) |
|
| : | : | |
| 24 | TLPS-001R-24P (TLPS-100R-24P) |
|

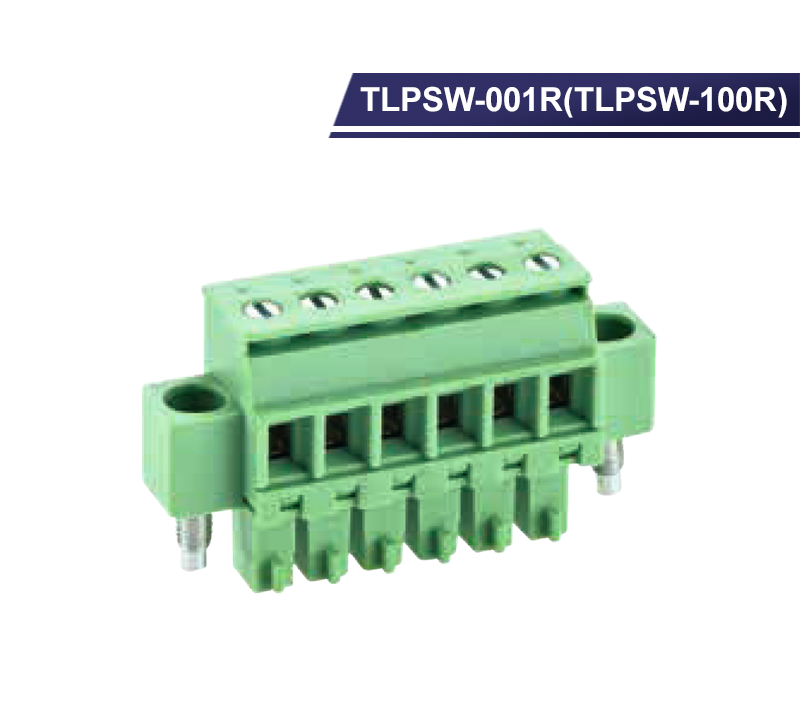

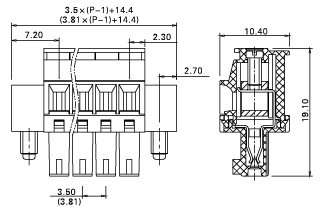

.png "TLPSW-001R(TLPSW-100R)") |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | 150V |
| Rated current | 8A | |
| Wire range | 30-14AWG | |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-001R-02P (TLPSW-100R-02P) |
|
| : | : | |
| 24 | TLPSW-001R-24P (TLPSW-100R-24P) |
|

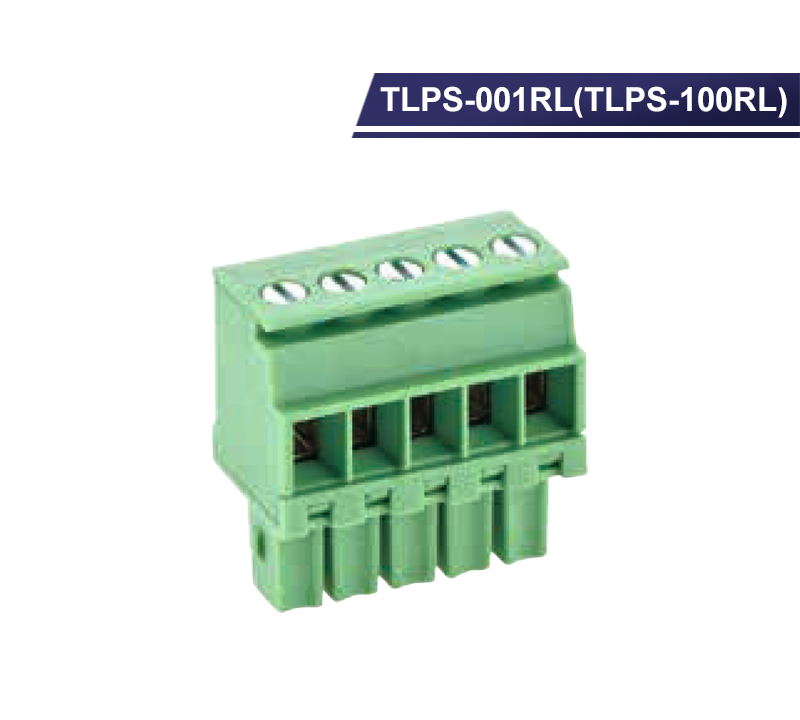

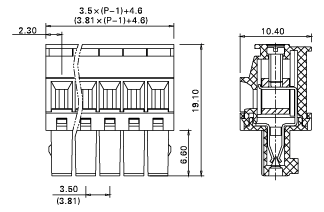

.png "TLPS-001RL(TLPS-100RL)") |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | |
| Rated current | 8A | |
| Wire range | 30-14AWG | |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-001 RL-02P (TLPS-100RL-02P) |
|
| : | : | |
| 24 | TLPS-001 RL-24P (TLPS-100RL-24P) |
|

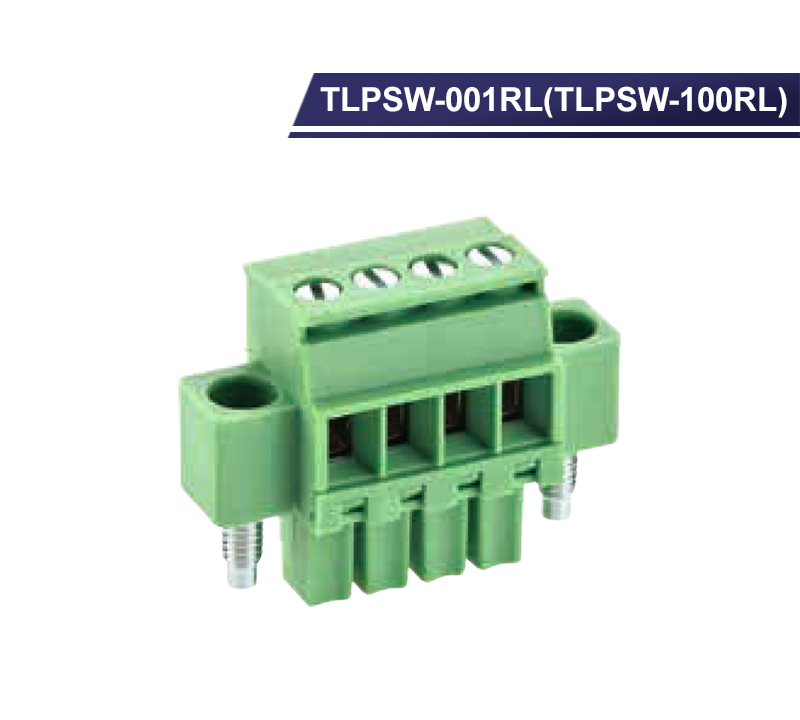

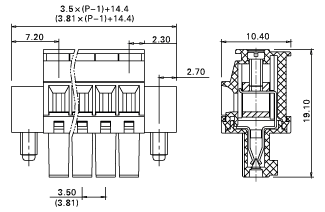

.png "TLPSW-001RL(TLPSW-100RL)") |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | |
| Rated current | 8A | |
| Wire range | 30-14AWG | |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-001RL-02P (TLPSW-100RL-02P) |
|
| : | : | |
| 24 | TLPSW-001RL-24P (TLPSW-100RL-24P) |
|
