I/Os and fieldbus systems
Plugs for pluggable terminal blocks TLP Series
Part No.:
TLPS-002V(TLPS-101V)
TLPSW-002V(TLPSW-101V)
TLPS-003
TLPS-006V
TLPS-007(TLPS-107)
TLPSD-007

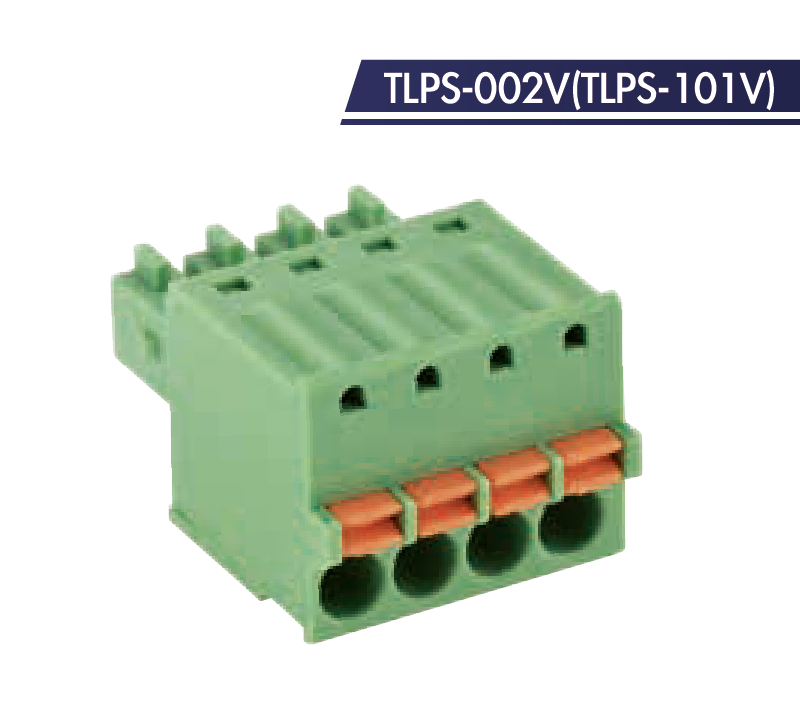

TLPS-002V(TLPS-101V)

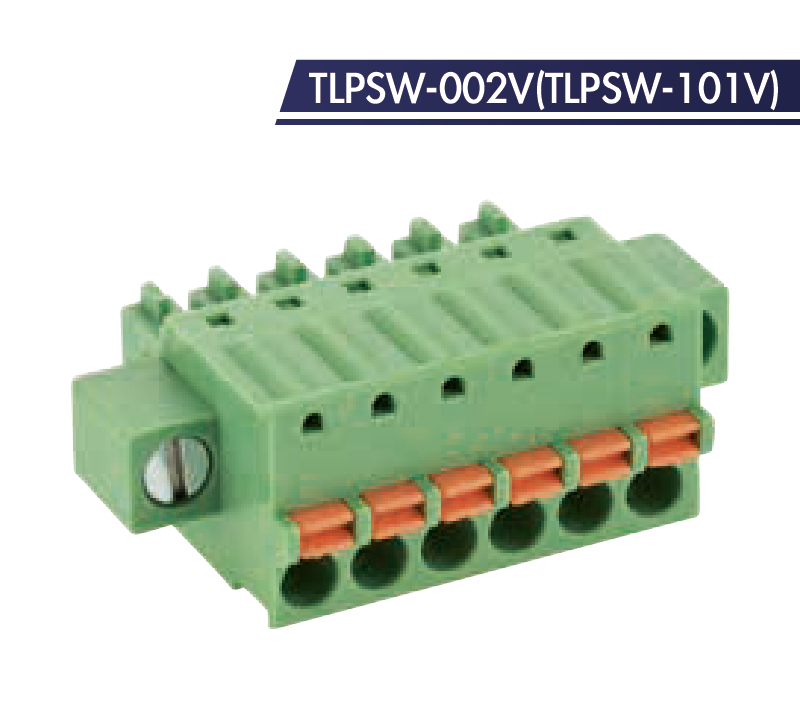

TLPSW-002V(TLPSW-101V)

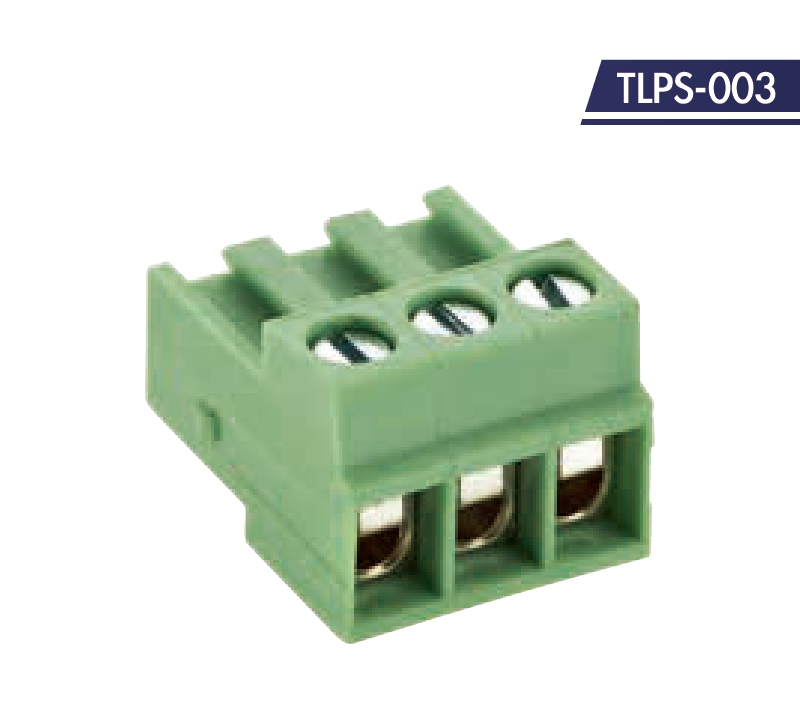

TLPS-003

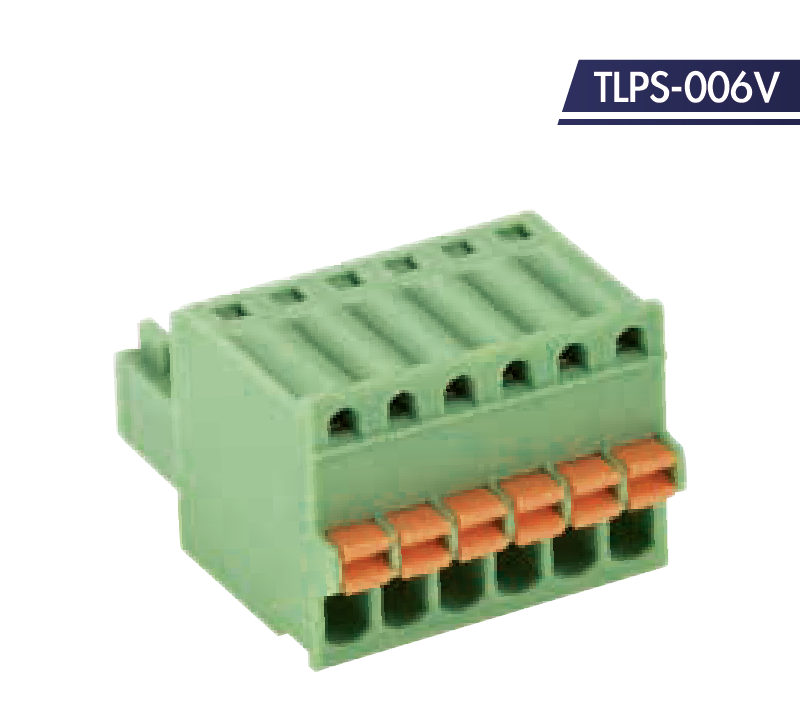

TLPS-006V

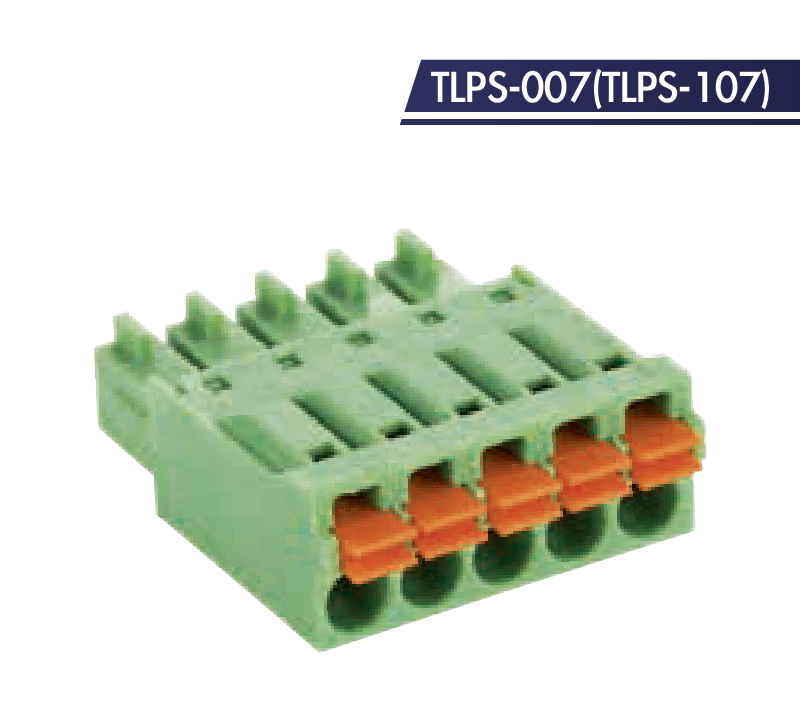

TLPS-007(TLPS-107)

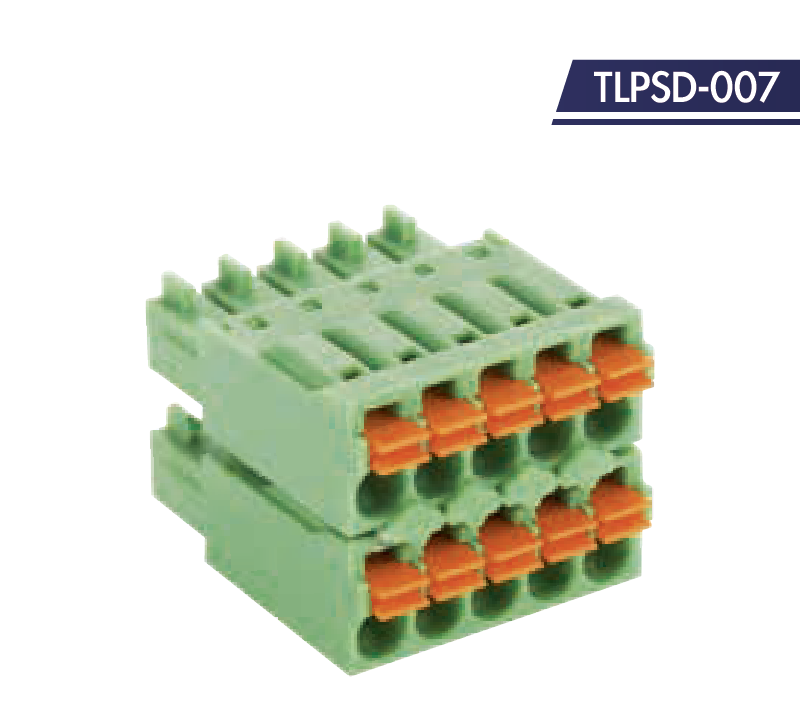

TLPSD-007
.png "TLPS-002V(TLPS-101V)") |
||
-2.png "TLPS-002V(TLPS-101V)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval |  |
|
| Rated voltage | 300V | |
| Rated current | 8A | |
| Wire range | 28-16AWG | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-002V-02P (TLPS-101V-02P) |
|
| : | : | |
| 24 | TLPS-002V-24P (TLPS-101V-24P) |
|
.png "TLPSW-002V(TLPSW-101V)") |
||
-2.png "TLPSW-002V(TLPSW-101V)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | |
| Rated current | 8A | |
| Wire range | 30-16AWG | |
| Screw | M2.5 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-002V-02P (TLPSW-101V-02P) |
|
| : | : | |
| 24 | TLPSW-002V-24P (TLPSW-101V-24P) |
|
 |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval | |
|
| Rated voltage | 300V | |
| Rated current | 10A | |
| Wire range | 30-16AWG | |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-003-02P |
|
| : | : | |
| 24 | TLPS-003-24P |
|
|
||
 |
||
| Technical data | ||
| Pitch | 2.50mm | |
| Approval | |
|
| Rated voltage | 150V | |
| Rated current | 5A | |
| Wire range | 30-14AWG | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-006V-02P | |
| : | : | |
| 24 | TLPS-006V-24P | |
.png "TLPS-007(TLPS-107)") |
||
-2.png "TLPS-007(TLPS-107)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
 |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 30-14AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-007-02P (TLPS-107-02P) |
|
| : | : | |
| 24 | TLPS-007-24P (TLPS-107-24P) |
|
 |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval | |
|
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 30-14AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |
| 04 | TLPSD-007-04P | |
| : | : | |
| 48 | TLPSD-007-48P | |
