Plugs for pluggable terminal blocks TLP Series
Part No.:

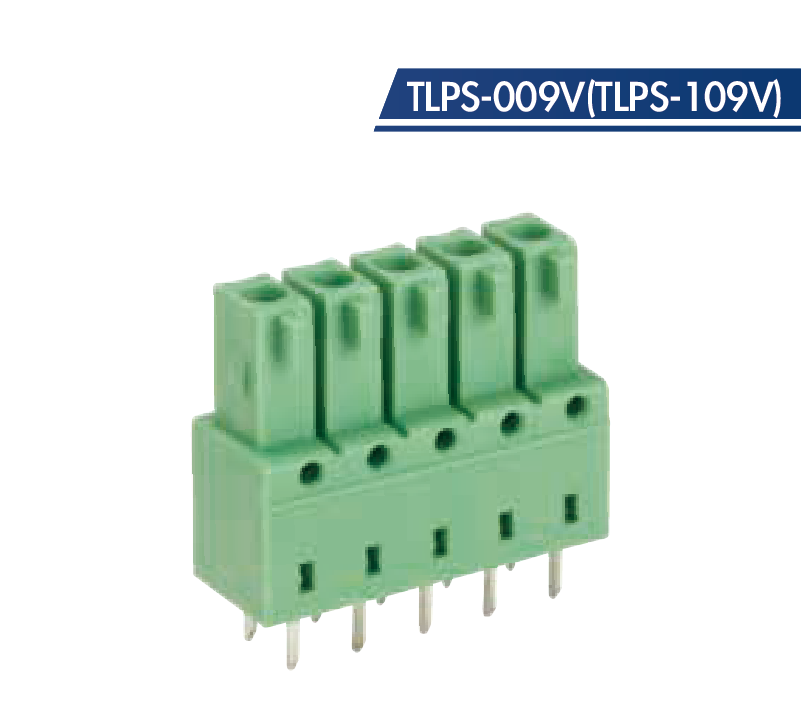

TLPS-009V(TLPS-109V)

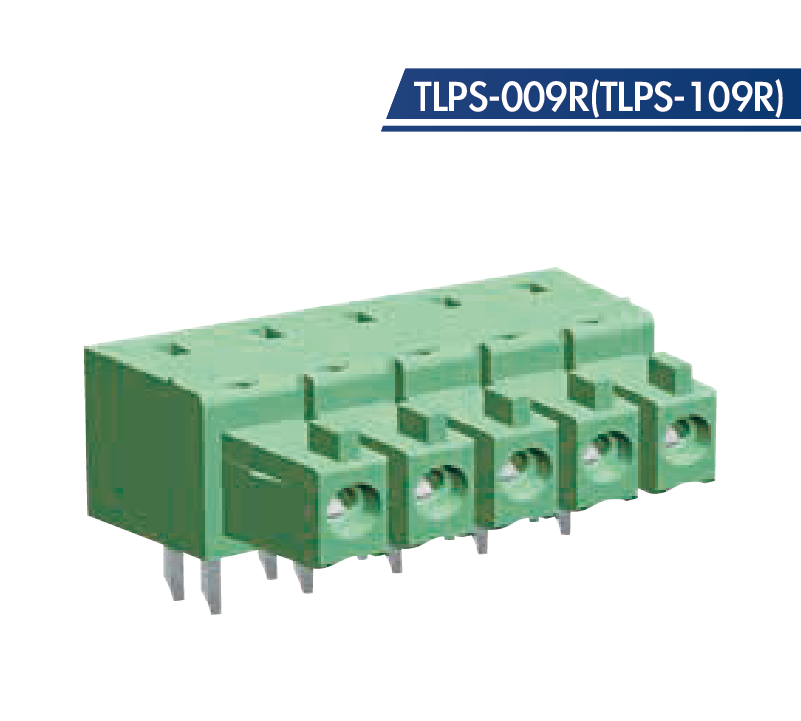

TLPS-009R(TLPS-109R)

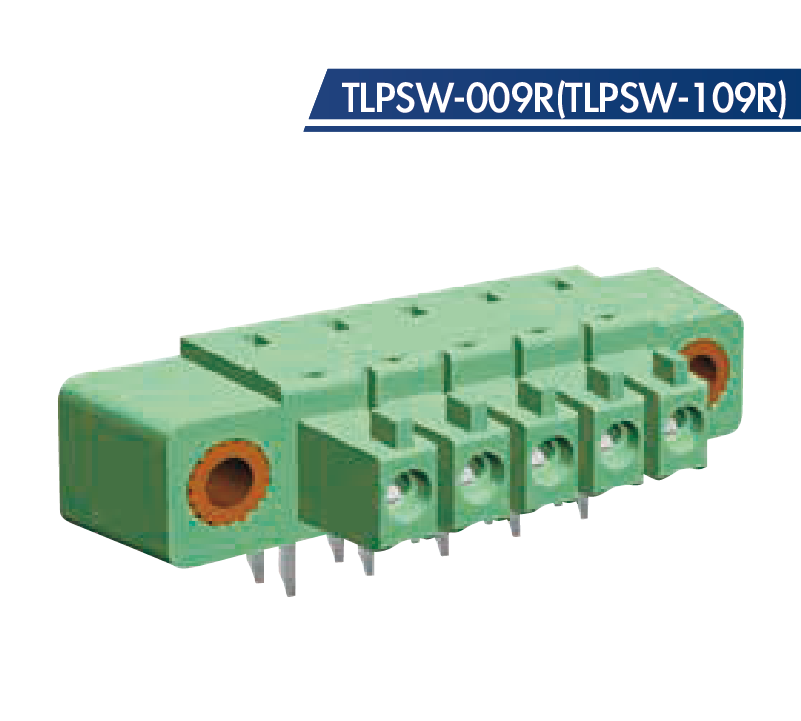

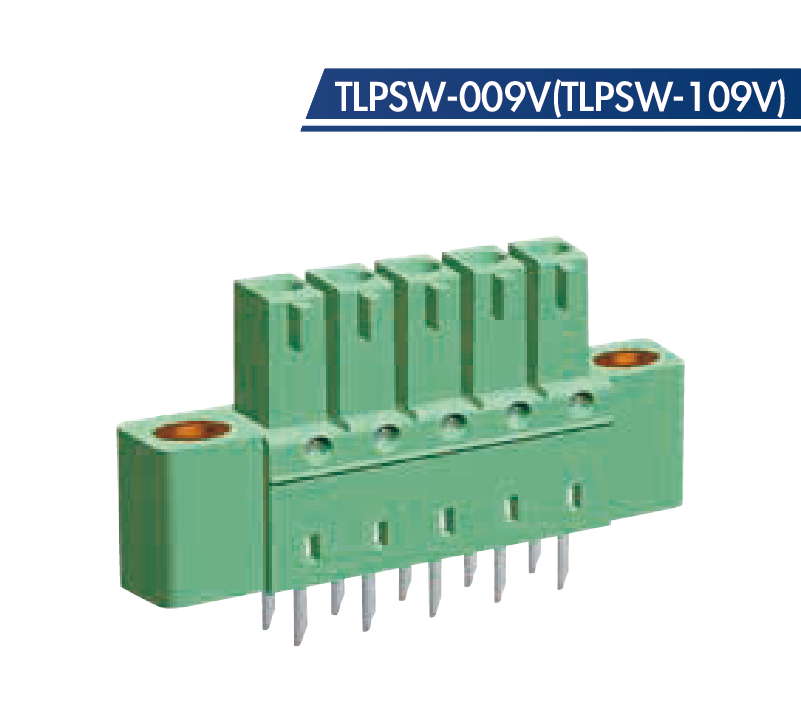

TLPSW-009V(TLPSW-109V)
TLPSW-009R(TLPSW-109R)

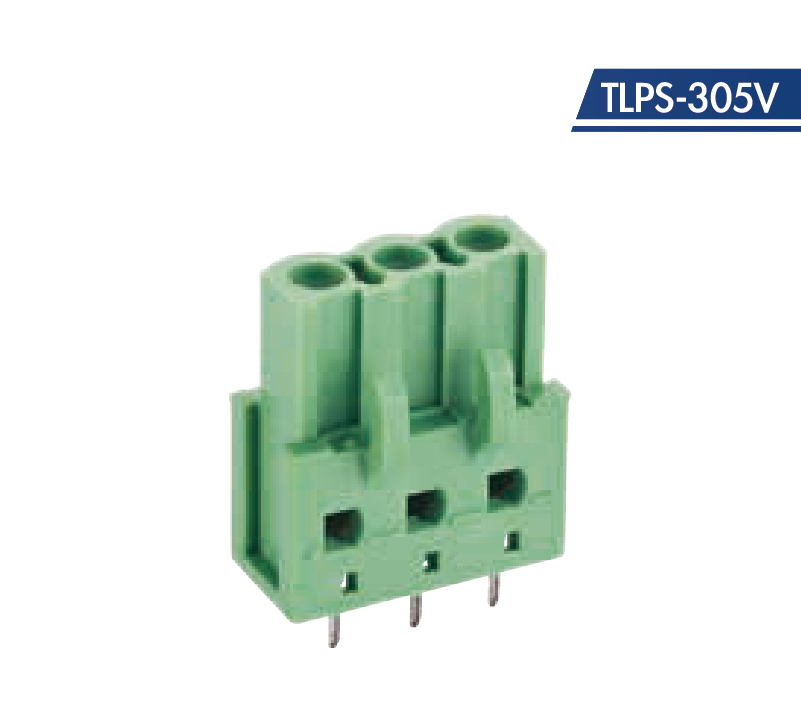

TLPS-305V

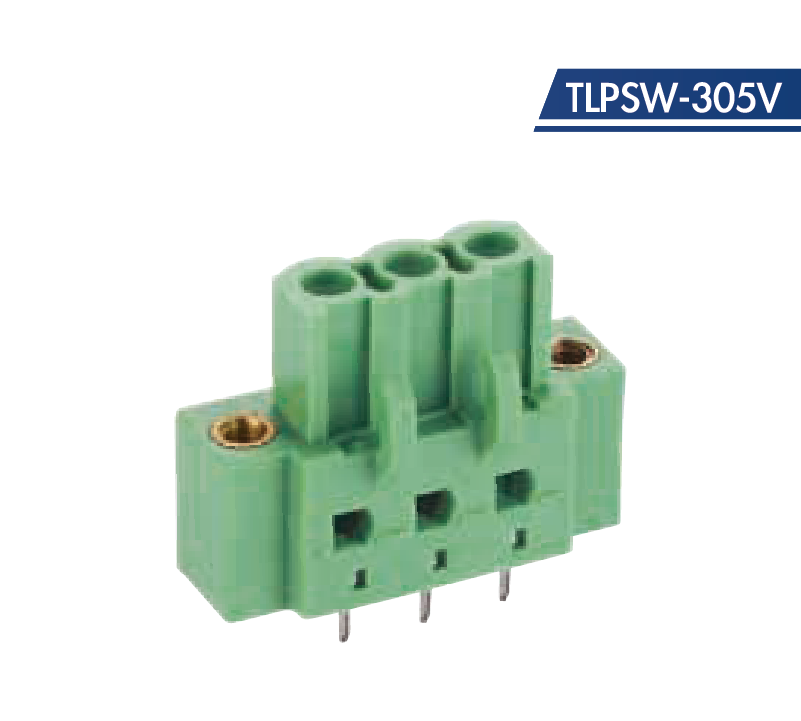

TLPSW-305V
TLPS-009V(TLPS-109V)
TLPS-009R(TLPS-109R)
TLPSW-009V(TLPSW-109V)
TLPSW-009R(TLPSW-109R)
TLPS-305V
TLPSW-305V
 |
||

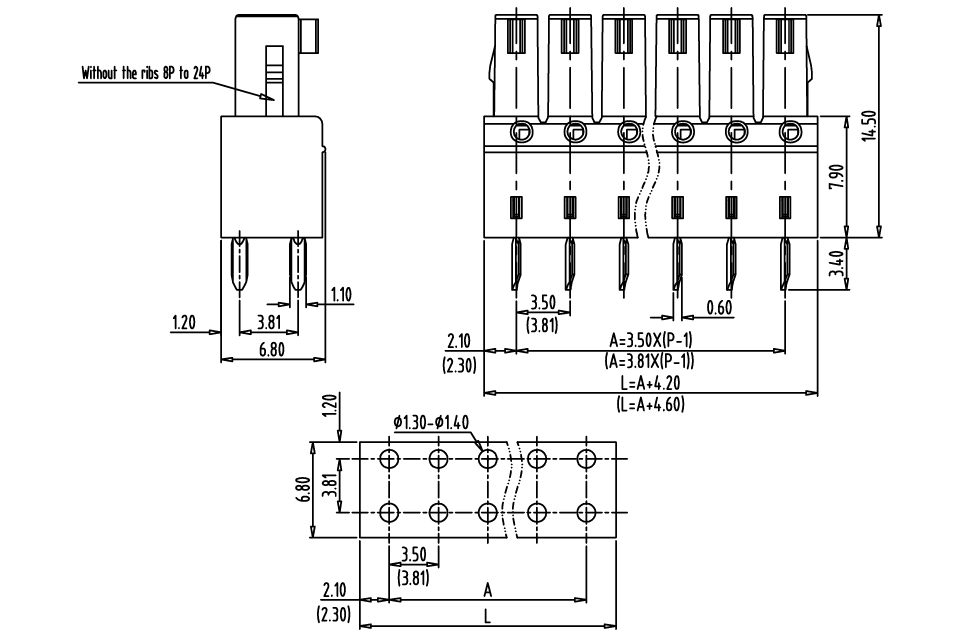

-2.png "TLPS-009V(TLPS-109V)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval |  |
VDE(Applying) |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 8A |
| PCB hole Dia (PCB) | Φ1.3mm-Φ1.4mm | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-009V-02P (TLPS-109V-02P) |
|
| : | : | |
| 24 | TLPS-009V-24P (TLPS-109V-24P) |
|

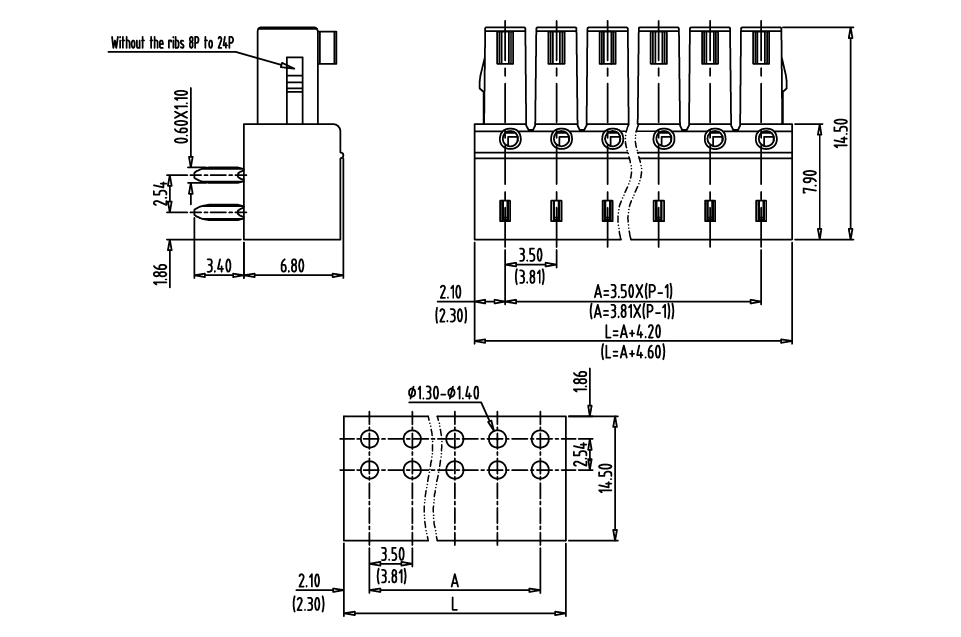

.png "TLPS-009R(TLPS-109R)") |
||
-2.png "TLPS-009R(TLPS-109R)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
VDE(Applying) |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 8A |
| PCB hole Dia (PCB) | Φ1.3mm-Φ1.4mm | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-009R-02P (TLPS-109R-02P) |
|
| : | : | |
| 24 | TLPS-009R-24P (TLPS-109R-24P) |
|

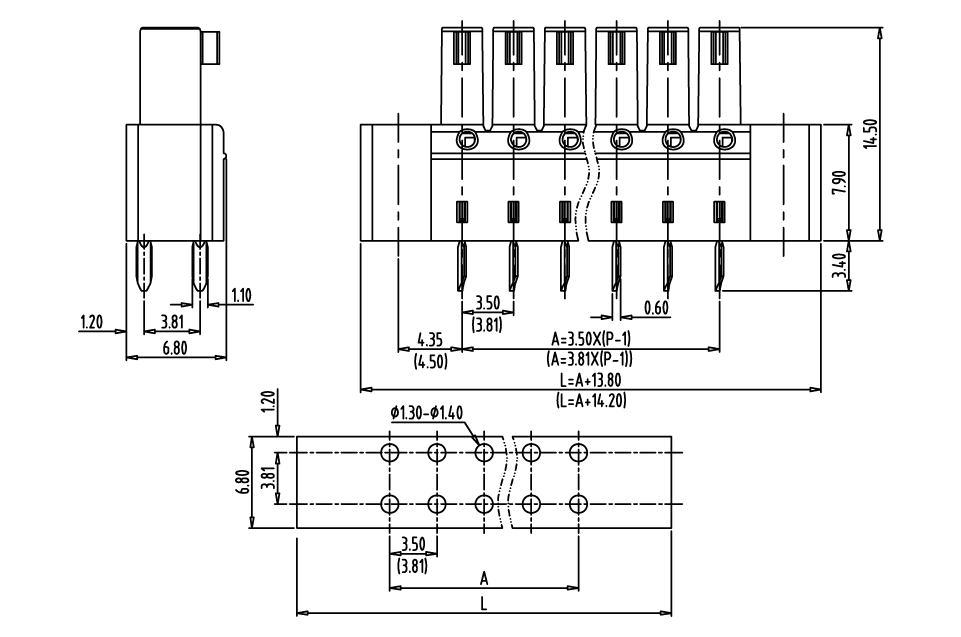

.png "TLPSW-009V(TLPSW-109V)") |
||
-2.png "TLPSW-009V(TLPSW-109V)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
VDE(Applying) |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 8A |
| PCB hole Dia (PCB) | Φ1.3mm-Φ1.4mm | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-009V-02P (TLPSW-109V-02P) |
|
| : | : | |
| 24 | TLPSW-009V-24P (TLPSW-109V-24P) |
|
.png "TLPSW-009R(TLPSW-109R)") |
||
-2.png "TLPSW-009R(TLPSW-109R)-2") |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
VDE(Applying) |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 8A |
| PCB hole Dia (PCB) | Φ1.3mm-Φ1.4mm | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-009R-02P (TLPSW-109R-02P) |
|
| : | : | |
| 24 | TLPSW-009R-24P (TLPSW-109R-24P) |
|
 |
||
 |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
IEC(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| PCB hole Dia (PCB) | Φ1.4mm | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-305V-02P | |
| : | : | |
| 24 | TLPS-305V-24P | |
|
||
 |
||

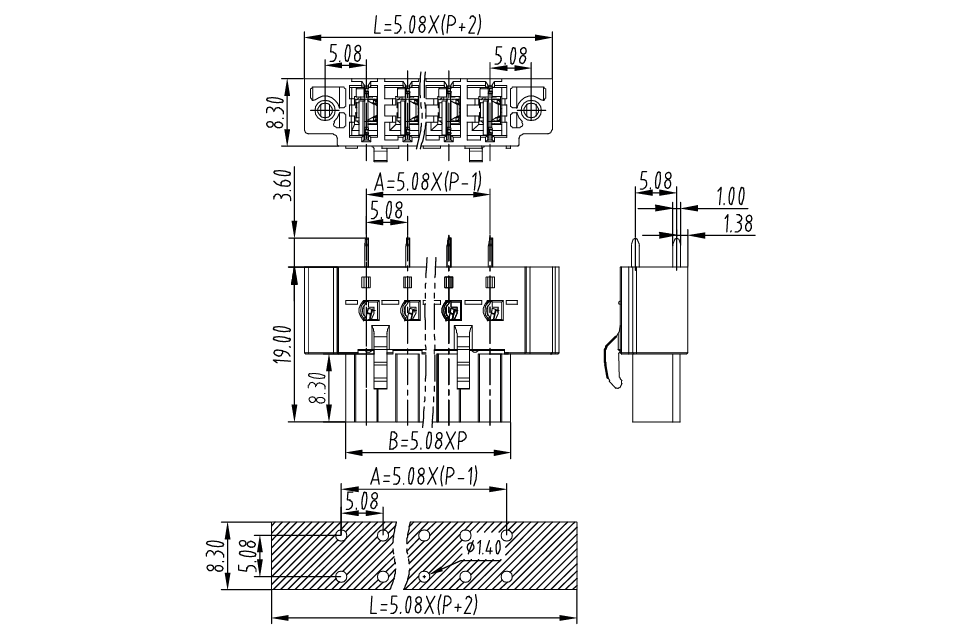

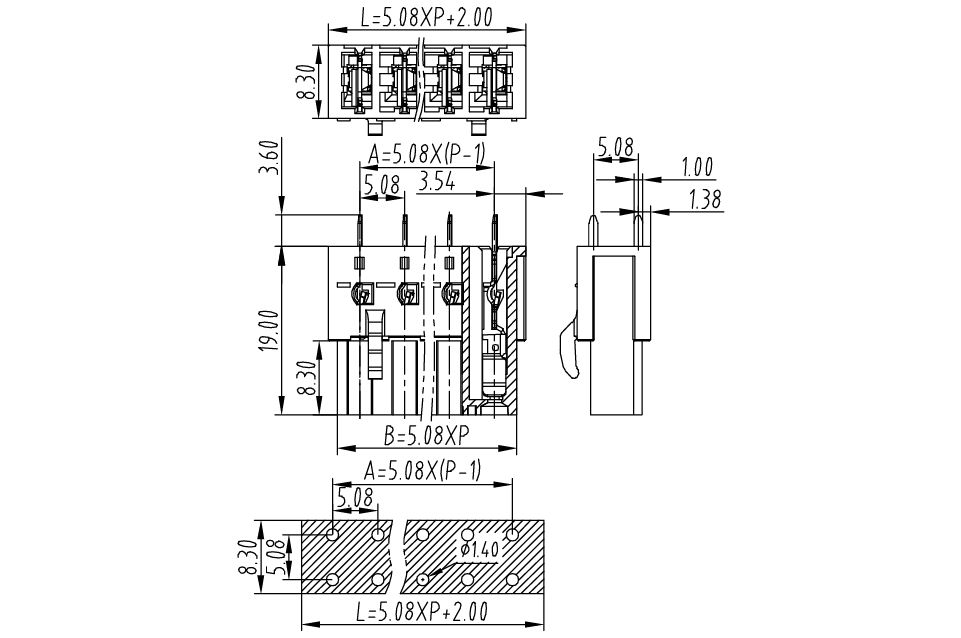

| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
IEC(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| PCB hole Dia (PCB) | Φ1.4mm | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-305V-02P | |
| : | : | |
| 24 | TLPSW-305V-24P | |
