Plugs for pluggable terminal blocks TLP Series
Part No.:
TLPS-305R
TLPSW-305R
TLPS-308
TLPSW-308
TLPS-309
TLPSW-309
TLPS-305R
TLPSW-305R
TLPS-308
TLPSW-308
TLPS-309
TLPSW-309
 |
||
-2.png "TLPS-009V(TLPS-109V)-2") |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval |  |
VDE(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| PCB hole Dia (PCB) | Φ1.4mm | |
| Part Number | ||
| Poles | Model | |

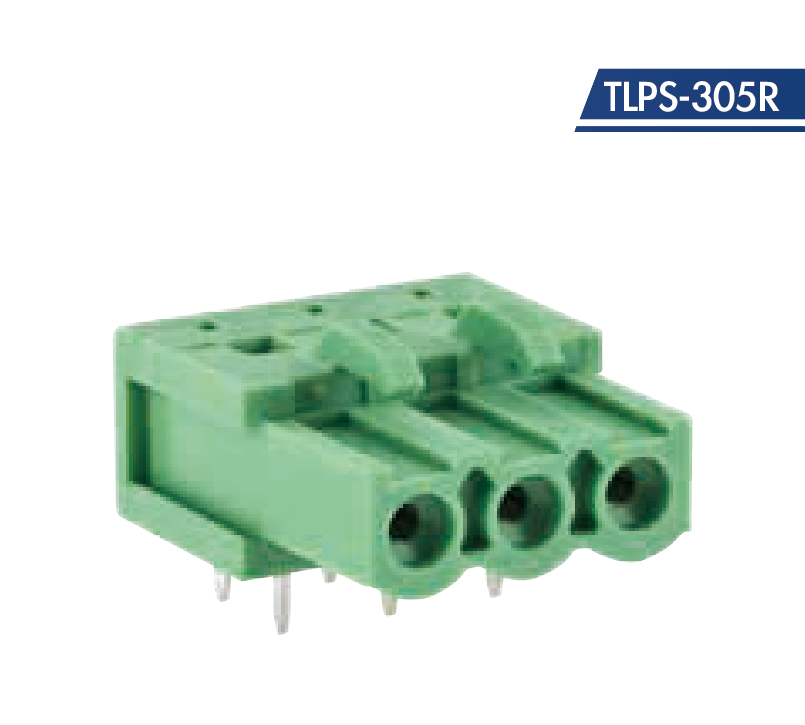

| 02 | TLPS-305R-02P | |
| : | : | |
| 24 | TLPS-305R-24P | |
.png "TLPS-009R(TLPS-109R)") |
||
-2.png "TLPS-009R(TLPS-109R)-2") |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
VDE(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| PCB hole Dia (PCB) | Φ1.4mm | |
| Part Number | ||
| Poles | Model | |

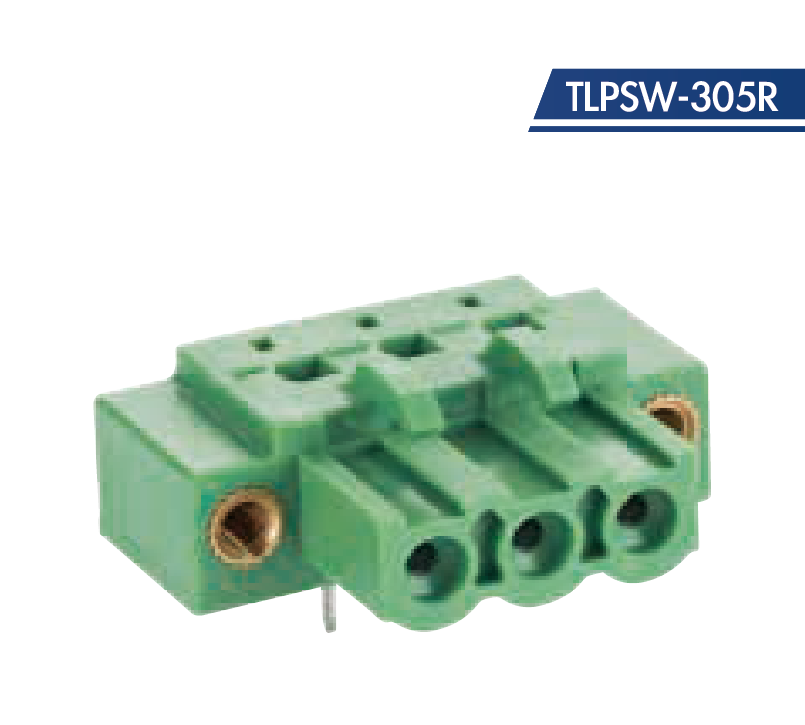

| 02 | TLPSW-305R-02P | |
| : | : | |
| 24 | TLPSW-305R-24P | |
.png "TLPSW-009V(TLPSW-109V)") |
||
-2.png "TLPSW-009V(TLPSW-109V)-2") |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
VDE(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| Wire range | 30-12AWG | 0.2-2.5mm2 sol/str 4mm2 sol |
| Screw | M3.0 | |
| Part Number | ||
| Poles | Model | |

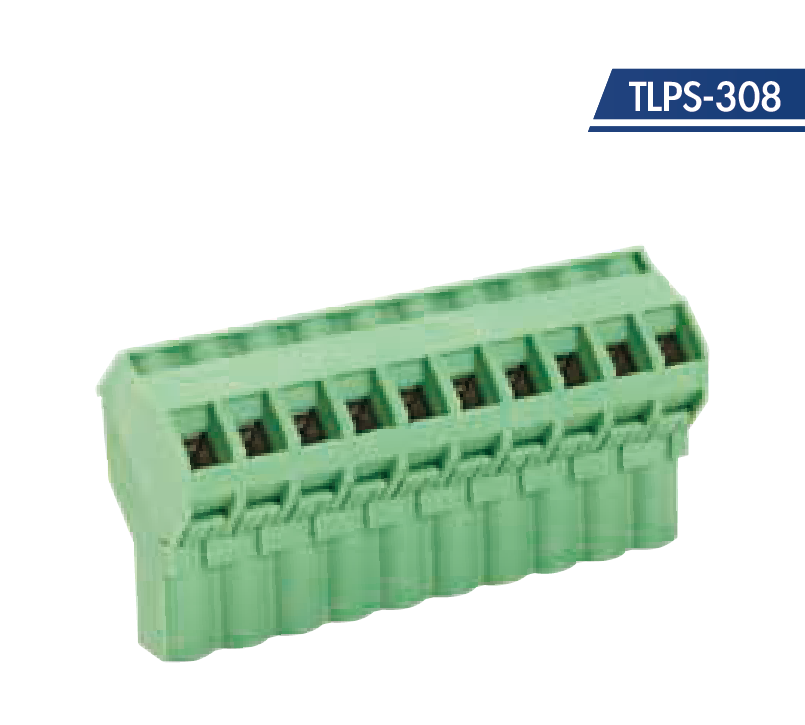

| 02 | TLPS-308-02P | |
| : | : | |
| 24 | TLPS-308-24P | |
.png "TLPSW-009R(TLPSW-109R)") |
||
-2.png "TLPSW-009R(TLPSW-109R)-2") |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
VDE(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| Wire range | 30-12AWG | 0.2-2.5mm2 sol/str 4mm2 sol |
| Screw | M3.0 | |
| Part Number | ||
| Poles | Model | |

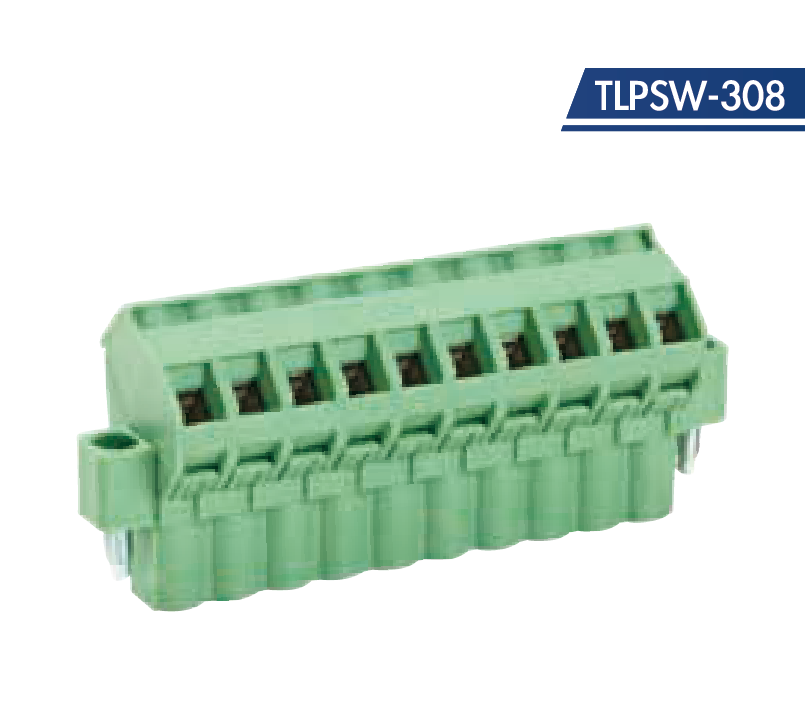

| 02 | TLPSW-308-02P | |
| : | : | |
| 24 | TLPSW-308-24P | |
 |
||
 |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
 |
| Rated voltage | 300V | 320V |
| Rated current | 15A | 15A |
| Wire range | 26-12AWG | 0.34-2.5mm2 |
| Part Number | ||
| Poles | Model | |

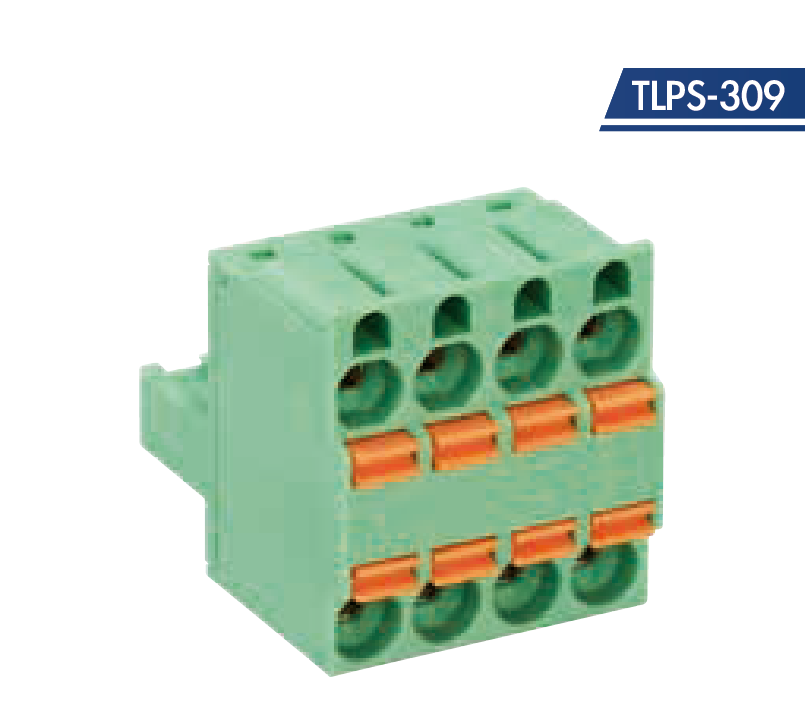

| 02 | TLPS-309-02P | |
| : | : | |
| 24 | TLPS-309-24P | |
|
||
 |
||
| Technical data | ||
| Pitch | 5.08mm | |
| Approval | |
|
| Rated voltage | 300V | 320V |
| Rated current | 15A | 15A |
| Wire range | 26-12AWG | 0.34-2.5mm2 |
| Screw | M2.5 | |
| Part Number | ||
| Poles | Model | |

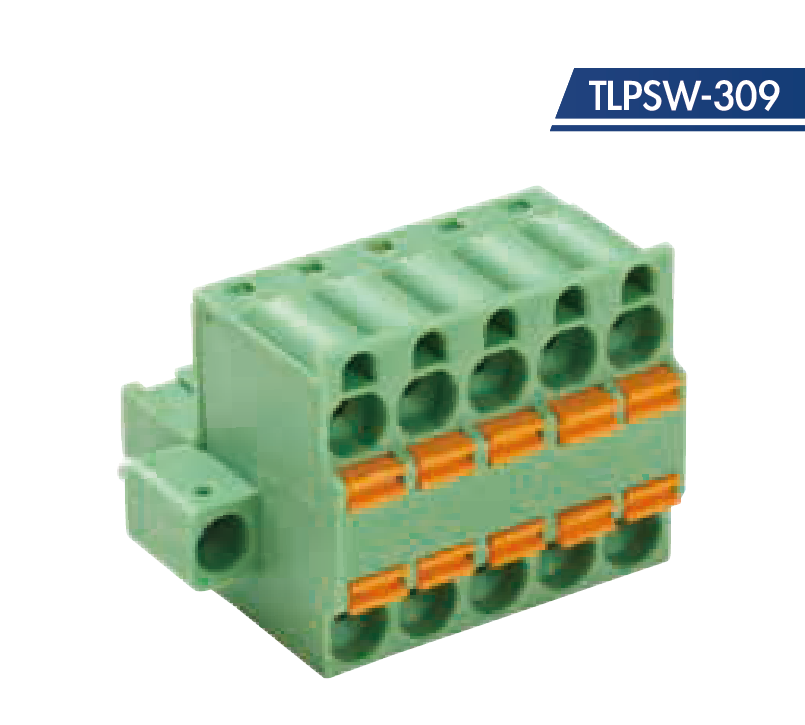

| 02 | TLPSW-309-02P | |
| : | : | |
| 24 | TLPSW-309-24P | |
