Plugs for pluggable terminal blocks TLP Series
Part No.:
TLPSW-007(TLPSW-107)
TLPSDW-007
TLPSL-007(TLPSL-107)
TLPSDL-007
TLPSD-010
TLPSDW-010
TLPSW-007(TLPSW-107)
TLPSDW-007
TLPSL-007(TLPSL-107)
TLPSDL-007
TLPSD-010
TLPSDW-010

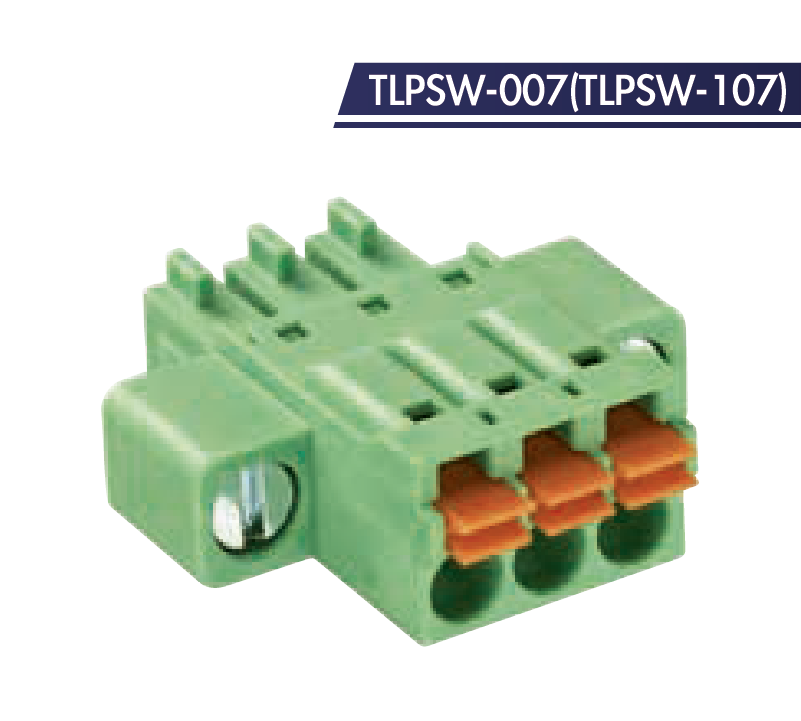

.png "TLPSW-007(TLPSW-107)") |
||

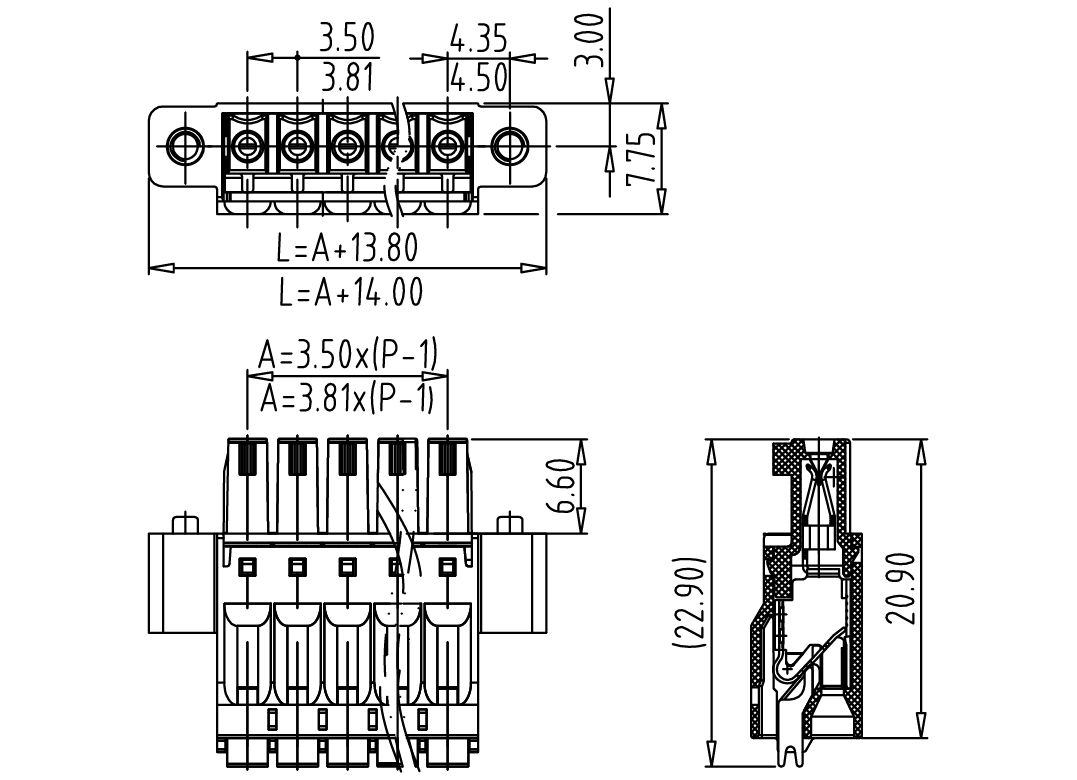

-2.png "TLPSW-007(TLPSW-107)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval |  |
 |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 28-16AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-007-02P (TLPSW-107-02P) |
|
| : | : | |
| 24 | TLPSW-007-24P (TLPSW-107-24P) |
|
 |
||
 |

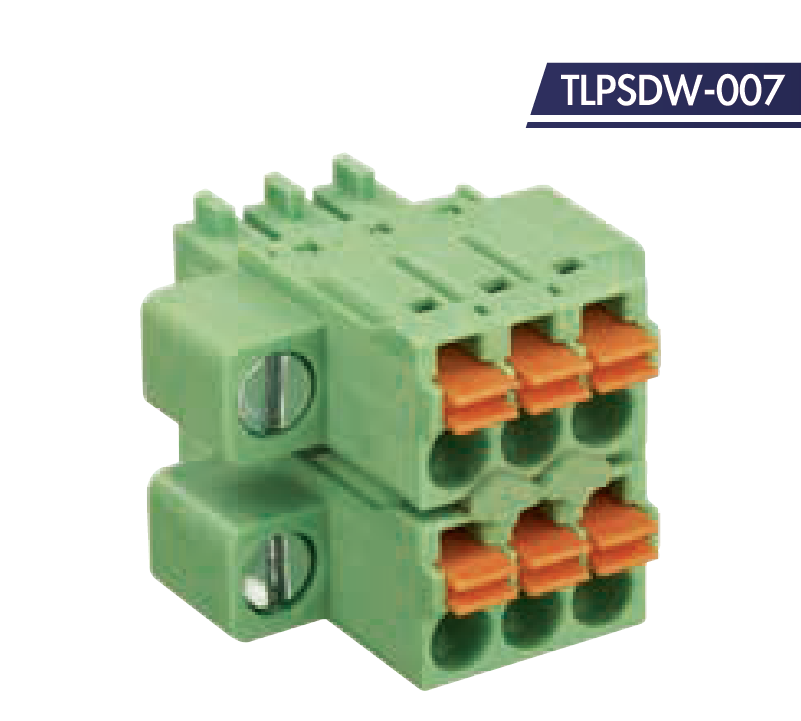

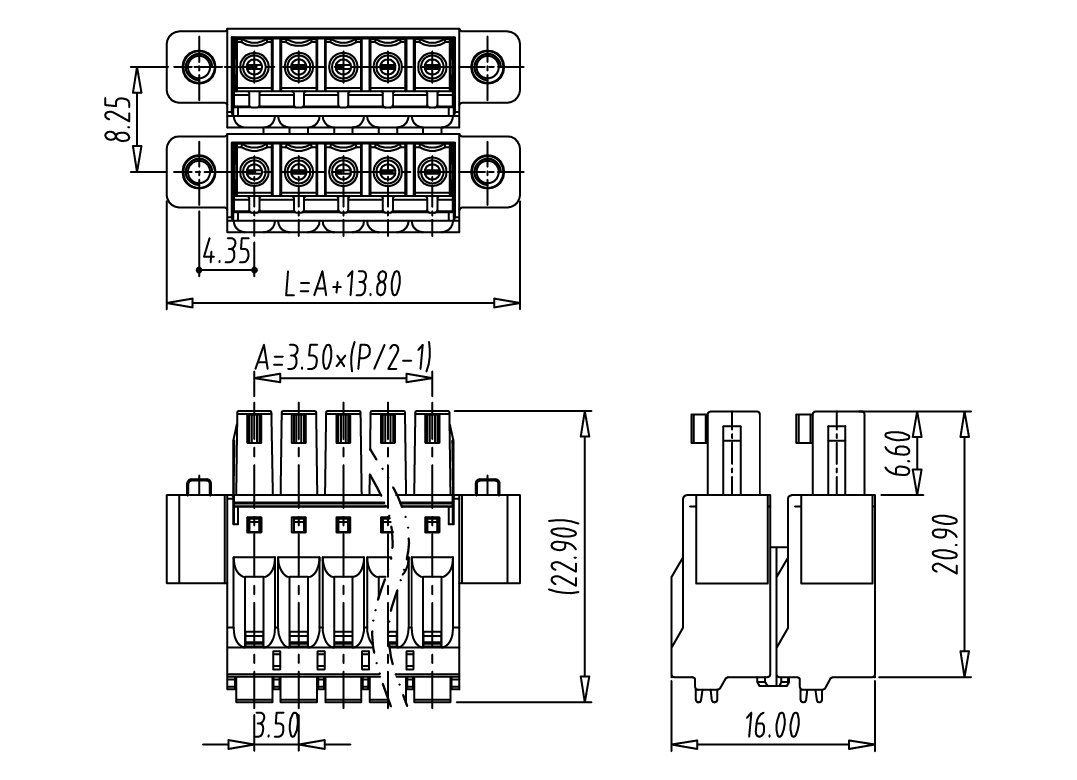

||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval | |
|
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 28-16AWG | 0.34-1.5mm2 |
| Screw | M2.5 | |
| Part Number | ||
| Poles | Model | |
| 04 | TLPSDW-007-04P | |
| : | : | |
| 48 | TLPSDW-007-48P | |

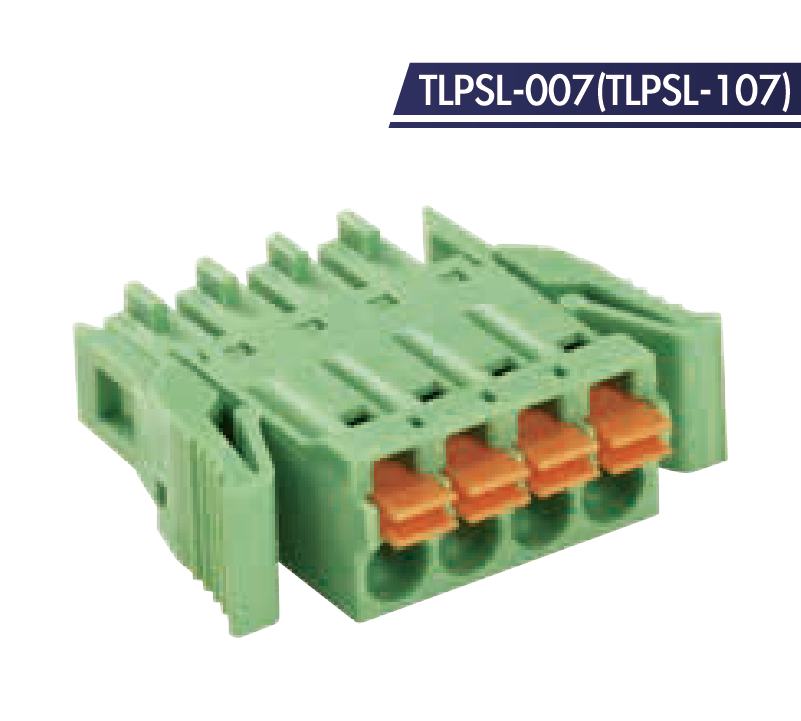

.png "TLPSL-007(TLPSL-107)") |
||

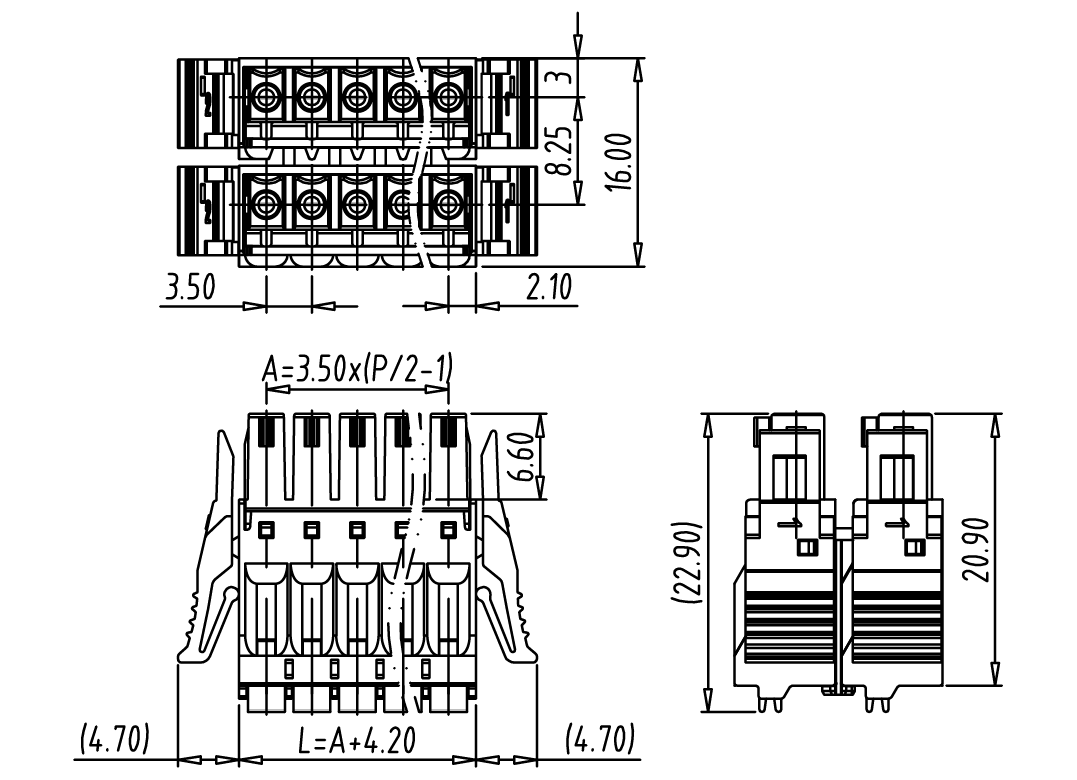

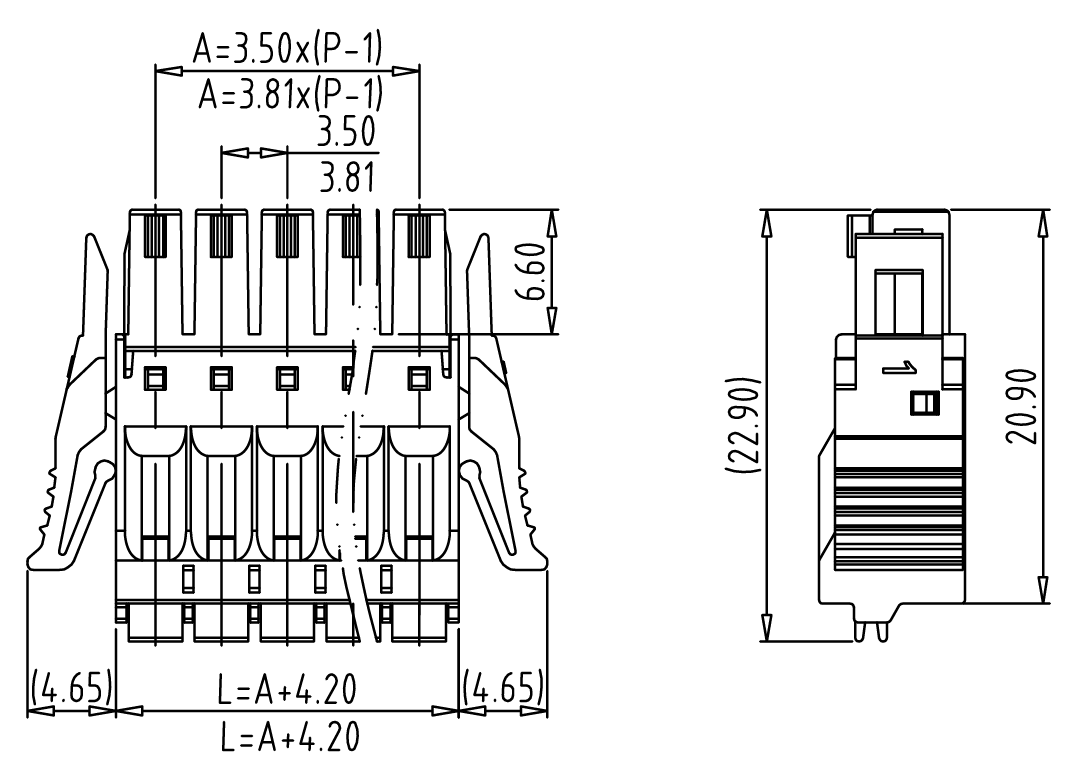

-2.png "TLPSL-007(TLPSL-107)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 28-16AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSL-007-02P (TLPSL-107-02P) |
|
| : | : | |
| 24 | TLPSL-007-24P (TLPSL-107-24P) |
|
 |
||
 |

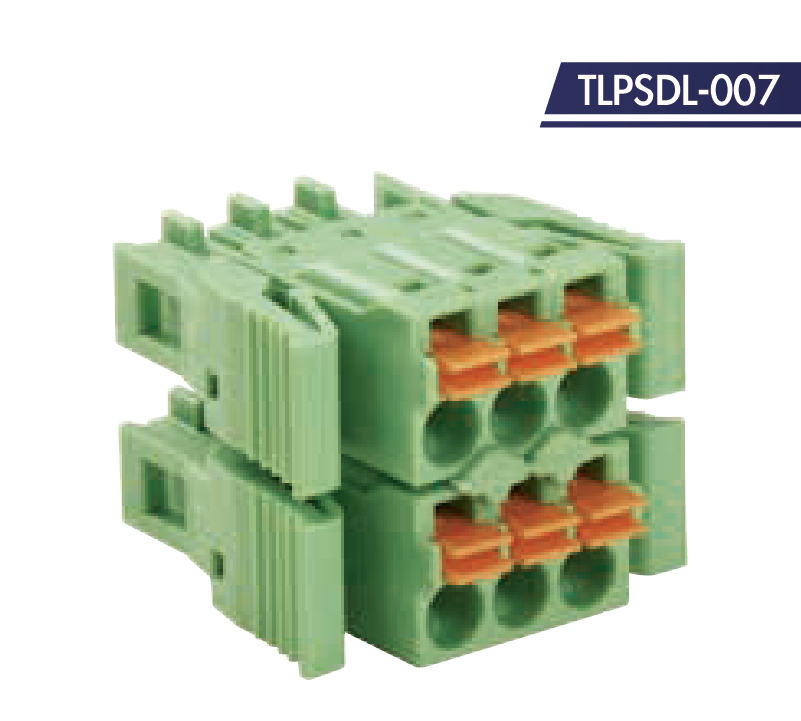

||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval | |
|
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 28-16AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |
| 04 | TLPSDL-007-04P | |
| : | : | |
| 48 | TLPSDL-007-48P | |
 |
||
 |

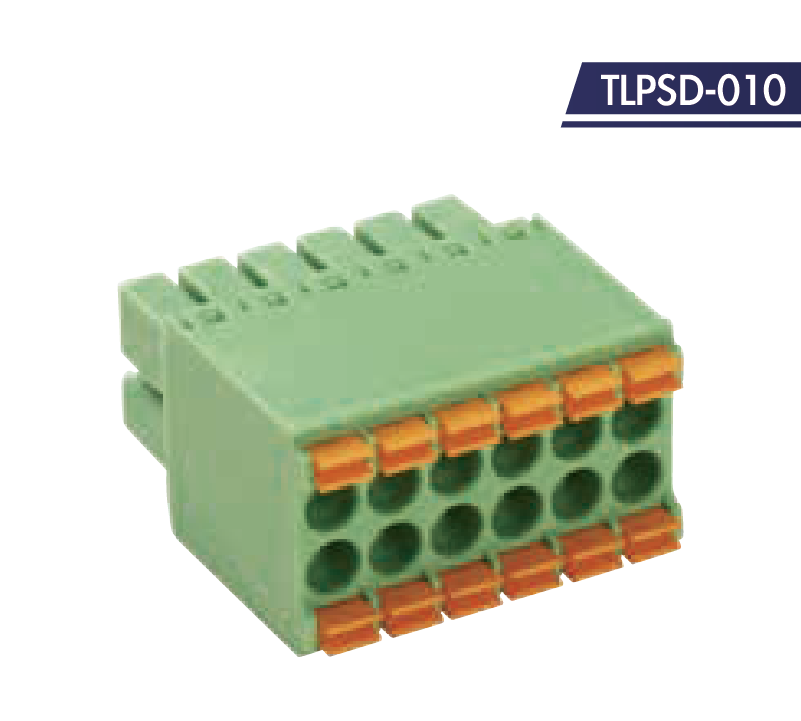

||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval | |
|
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 28-16AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |

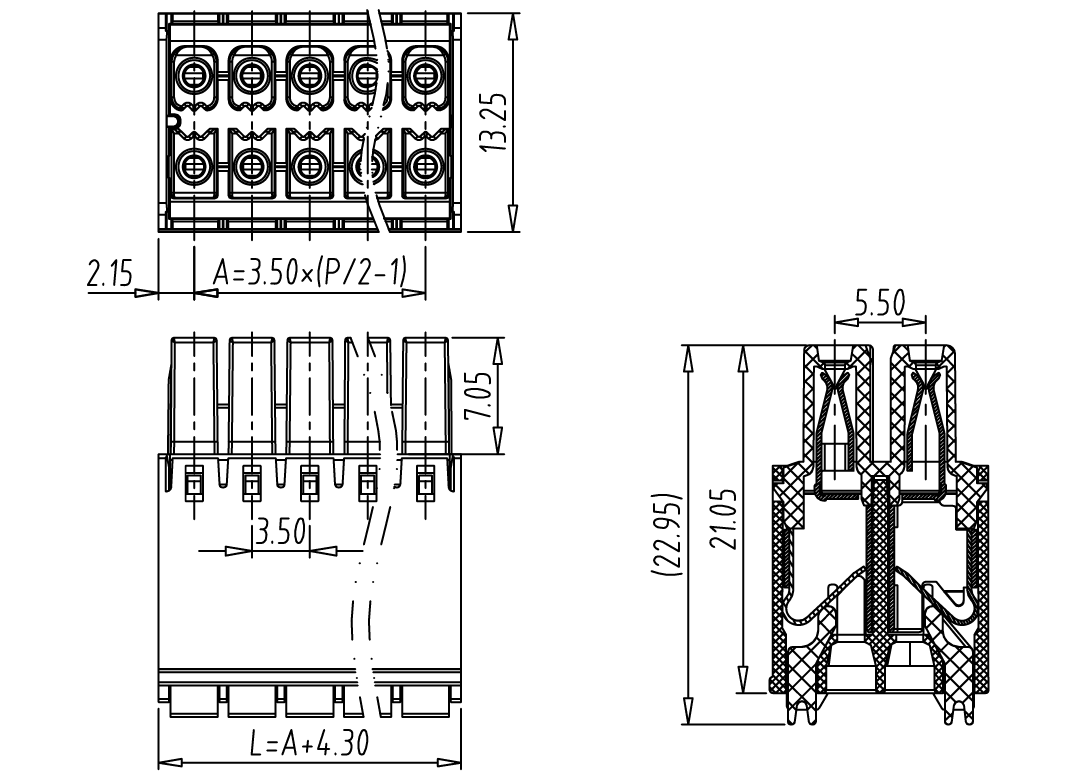

| 04 | TLPSD-010-04P | |
| : | : | |
| 48 | TLPSD-010-48P | |
 |
||
 |

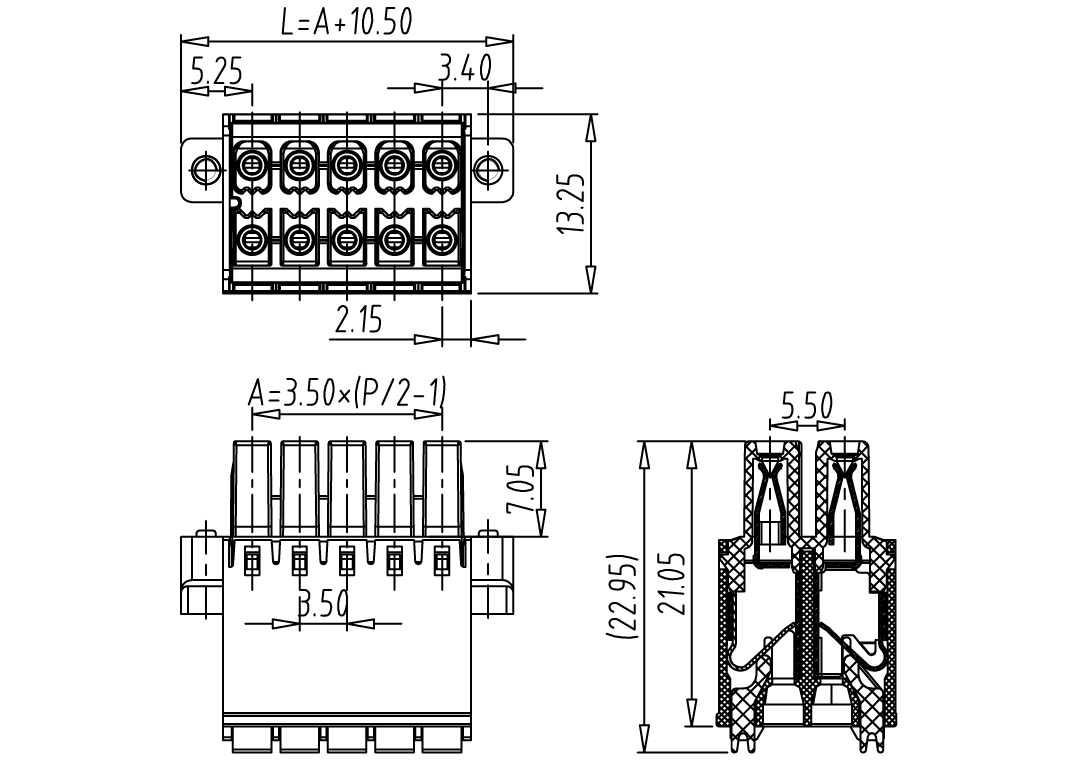

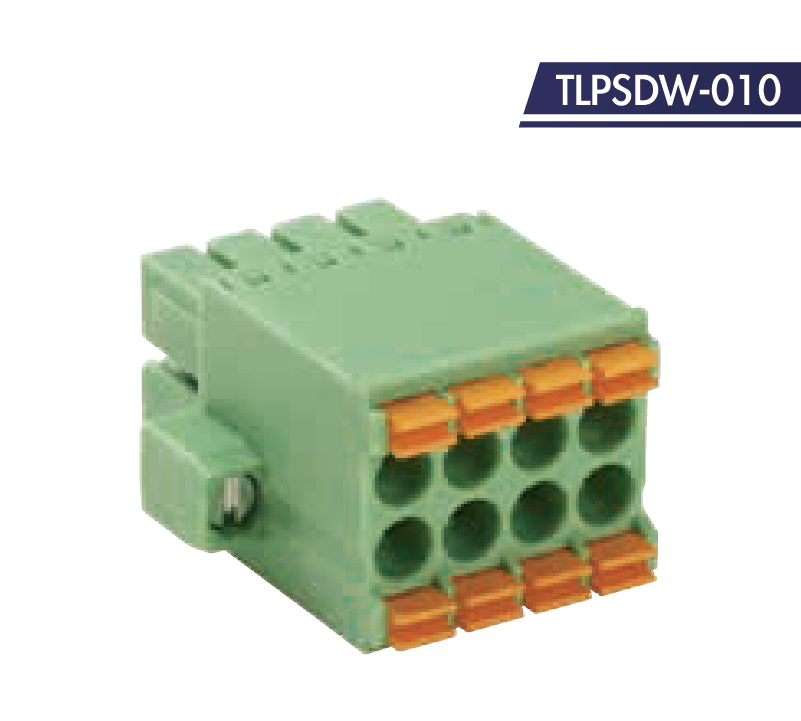

||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval | |
|
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 0.34-1.5mm | 0.34-1.5mm2 |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 04 | TLPSDW-010-04P | |
| : | : | |
| 48 | TLPSDW-010-48P | |
