    HomeAutomation & FacilityI/Os and fieldbus systemsPlugs for Pluggable Terminal Blocks TLP Series

    I/Os and fieldbus systems

    Plugs for pluggable terminal blocks TLP Series

    Part No.:
    TLPSW-800V
    TLPS-900V
    TLPSW-900V
    add to cart Inquiry Now
    guide

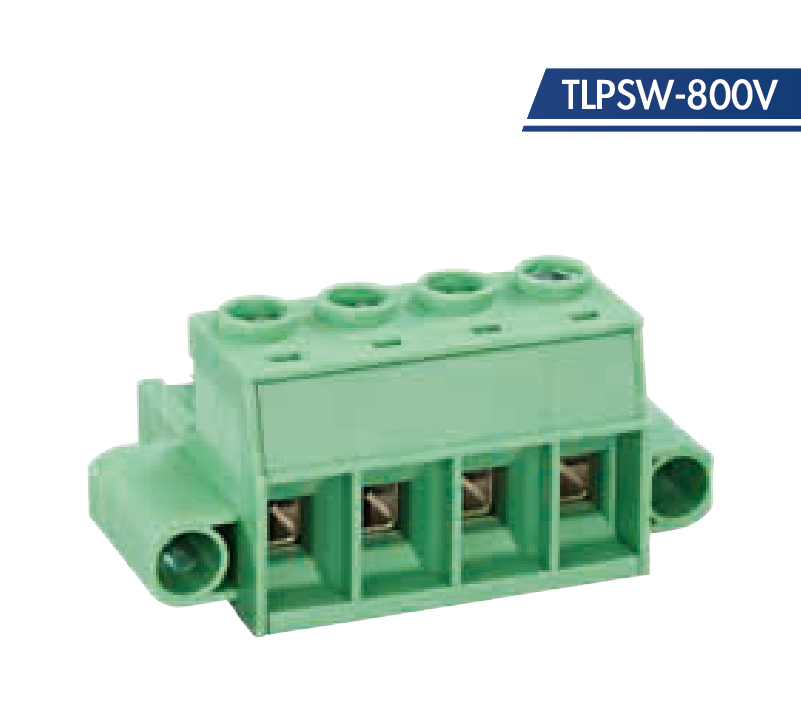

    TLPSW-800V

    TLPSW-800V-2

    Technical data
    Pitch 10.16mm
    Approval UL(Applying) IEC(Applying)
    Rated voltage 600V 1000V
    Rated current 55A 76A
    Wire range 20-6AWG 0.5-16mm2
    Screw M4
    Part Number
    Poles Model
    02 TLPSW-800V-02P
    : :
    24 TLPSW-800V-12P

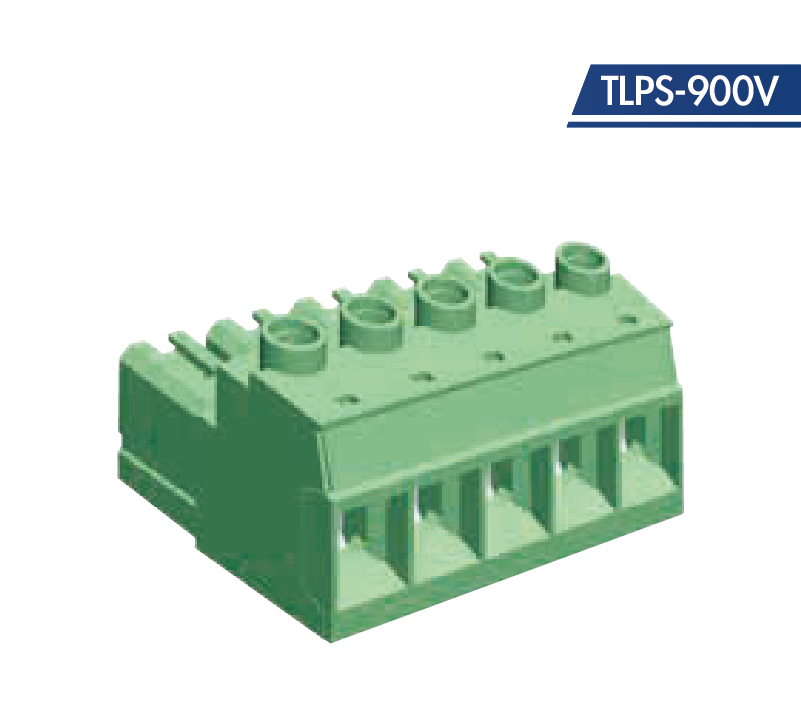

    TLPS-900V

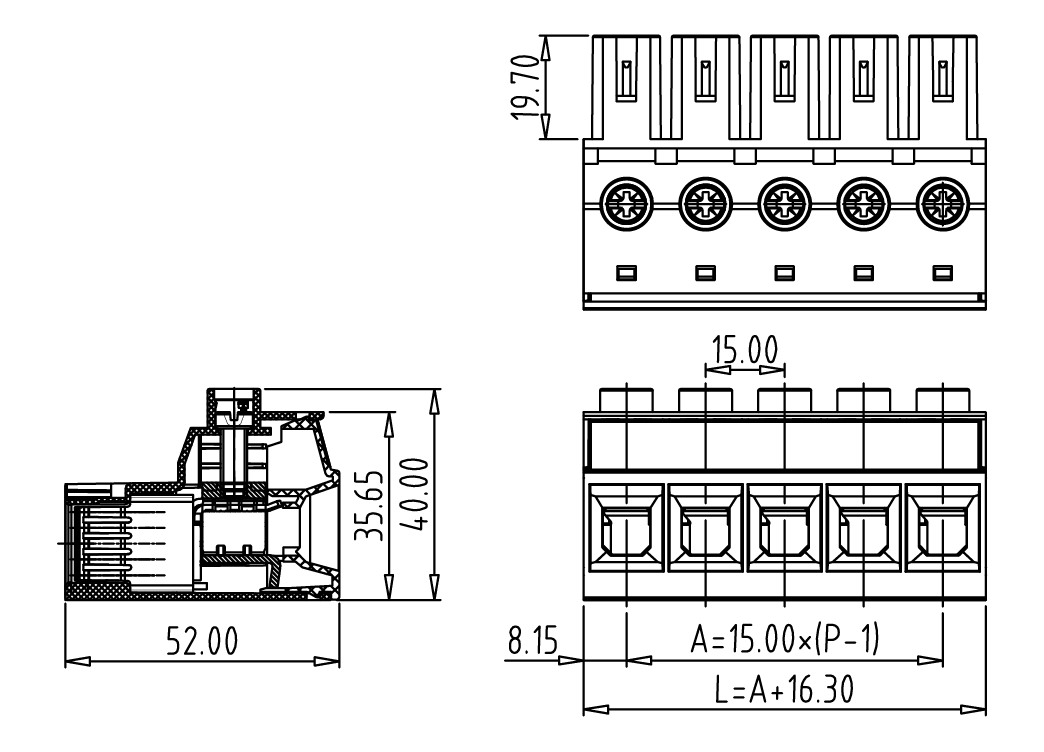

    TLPS-900V-2

    Technical data
    Pitch 15.00mm
    Approval UL(Applying) IEC(Applying)
    Rated voltage 600V 1000V
    Rated current 115A 115A
    Wire range 20-2AWG 0.5-35mm2
    Screw M5
    Part Number
    Poles Model
    02 TLPS-900V-02P
    : :
    24 TLPS-900V-08P

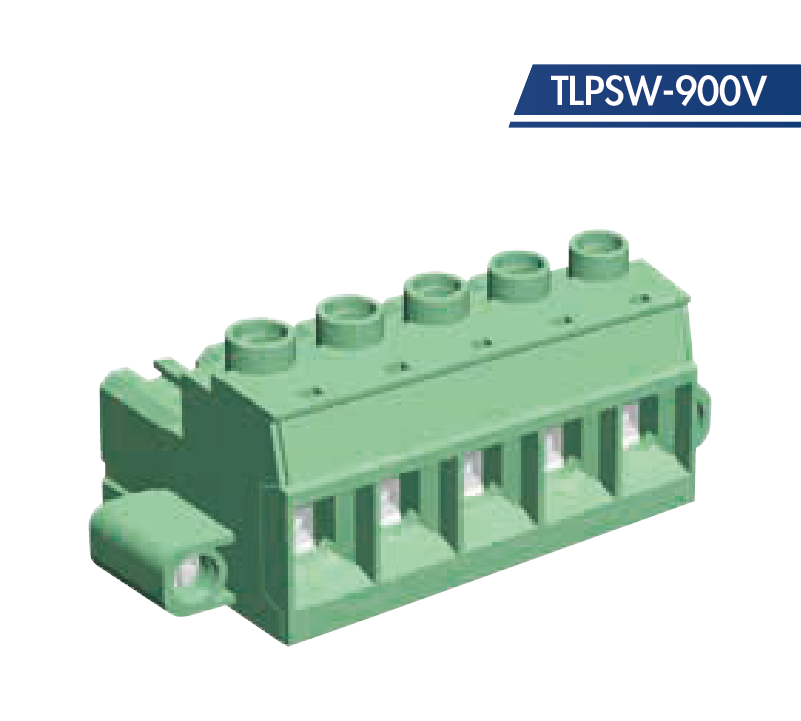

    TLPSW-900V

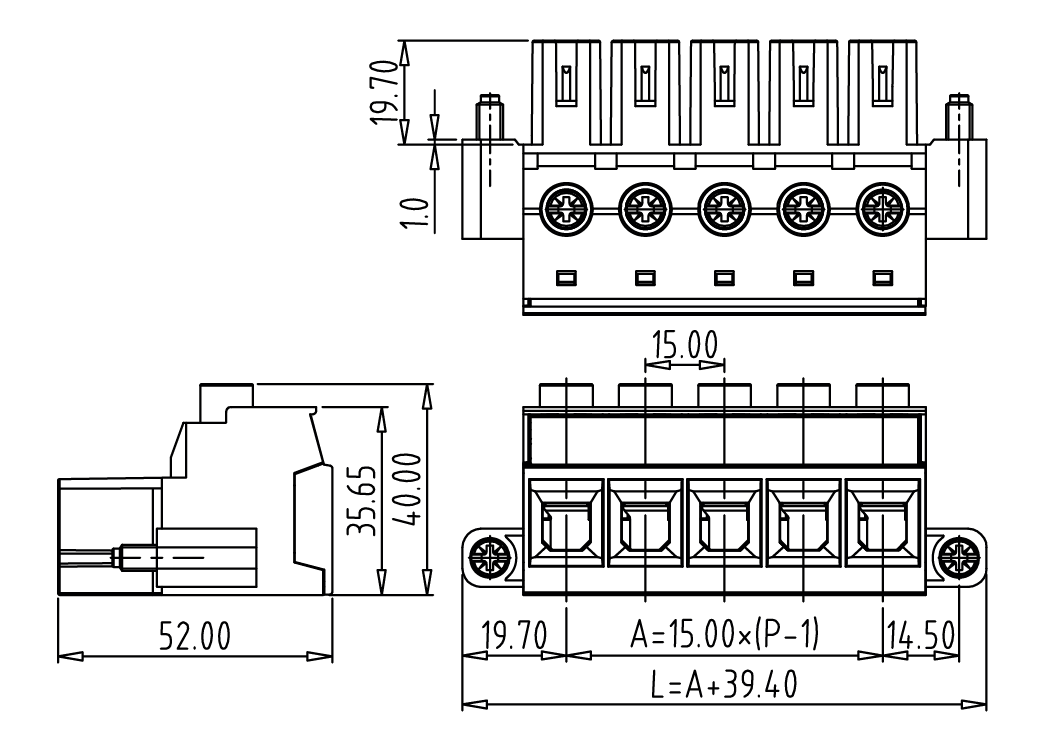

    TLPSW-900V-2

    Technical data
    Pitch 15.00mm
    Approval UL(Applying) IEC(Applying)
    Rated voltage 600V 1000V
    Rated current 115A 125A
    Wire range 20-2AWG 0.5-35mm2
    Screw M5
    Part Number
    Poles Model
    02 TLPSW-900V-02P
    : :
    24 TLPSW-900V-08P
