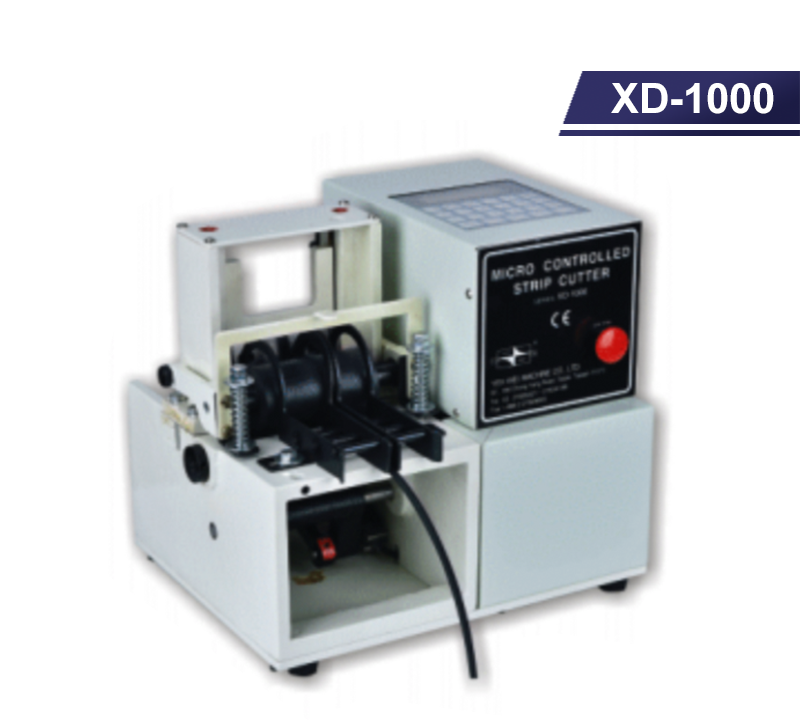

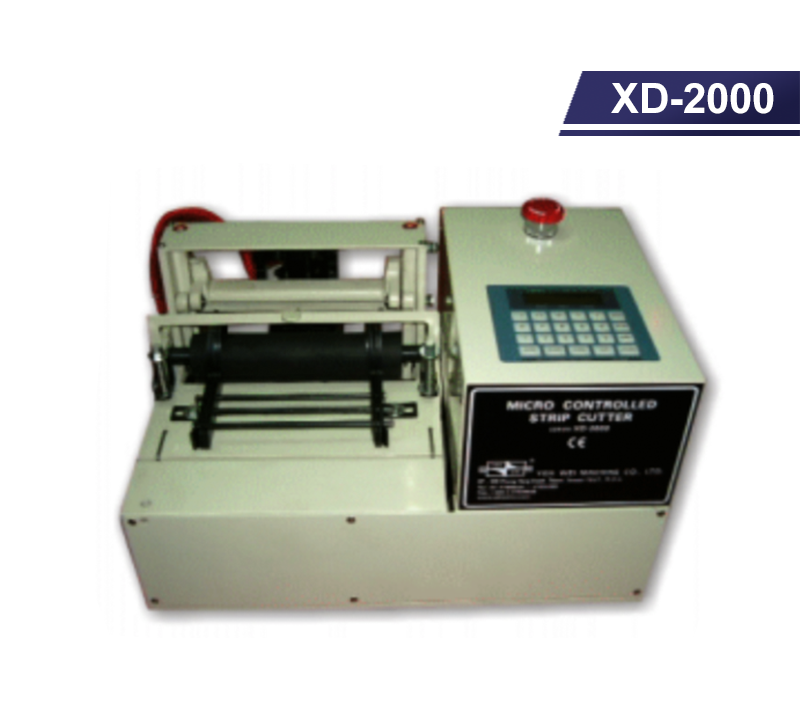

Programmable Desk-top Strip Cutter

Fully automatic cut the most of strip, tube and wire, such as small cables, flexible tube, heat-shrinkable tube, webbing, paper and other.
Rolling feeder and cutter cooperate with each other precisely, cut into any length within 99,999 mm aocurately.

• -quaity Alloy steel SK--2 is used for cutting blade, durable and long life.
• A Maro-Processor controlled stepping motor is installed to program the operation. Fully automatic for batch, reel and individual runs.
• Programmaible to cut length and speed control through the panel.
• Built-in counter with the function of automnatic counting and pre-stop.
• For cutting operation of various thin materials, such as flexible tube, insulation paper, cables, metal films, copper wire etc.
• With CE certificate and popular in all over the world.



Model (mm)	XD-1000	XD-2000	XD-2000
Max. Cutting Width	60 mm	160 mm	170 mm
Max. Cutting Length	99999 mm
Max Cutting Thickness	13
Max. Feeding Speed	1250 mm/sec.
Motor	25W
Power	100-240V AC, 50/60Hz
Dimension (LxWxH)	280x220x270	460x290x290	460x290x290
Net Weight	21.5 kgs	38 kgs	40 kgs
Holder	V	V	V
Stop sensor	X	X	X
