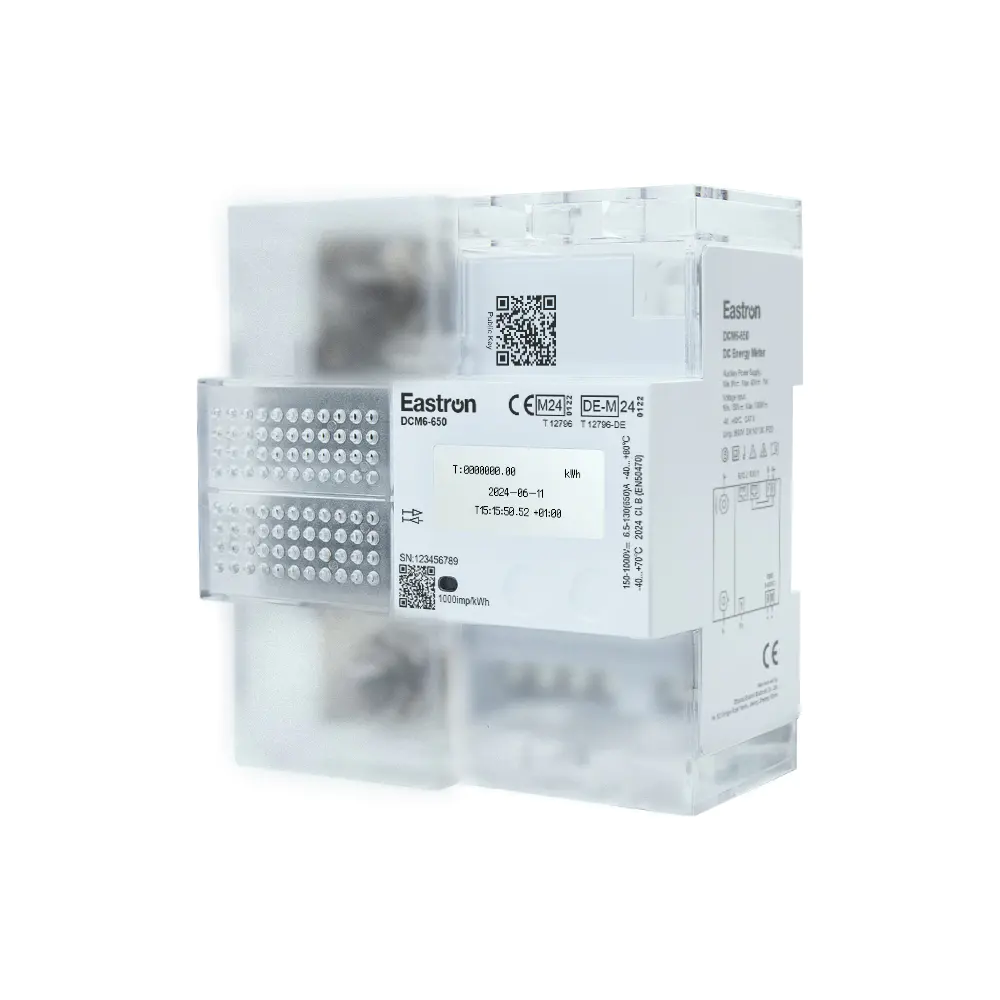

Ptb/ Mid/eichrecht Dc Energy Meter For German Mess Ev Regulation Eastron DCM6-650
- Voltage up to 1000V
- Max. current 650A
- Charging Data recording
- Charging Duration Monitoring
- Signed and Encrypted Charging Data
- Line loss energy measurement
| Voltage |
| Umax |
1000V DC |
| Umin |
150V DC |
| Auxiliary power supply voltage |
9-40V DC |
| Current |
| Ist (Starting current) |
0.52A |
| Imin(Minimum current) |
6.5A |
| Itr (Current) |
13A |
| Iref (Normal current) |
130A |
| Imax(Maximum current) |
650A |
| Display |
| LCD |
Dot Matrix |
| Life Cycle |
>12 Years |
| Serial Output |
| Type |
2xRS485 (RTU) |
| Ports |
2 xRJ12+1 plug-in terminal |
| RS485 interface |
| 4800~115200bps(19200bps default) 8N1(Settable) |
