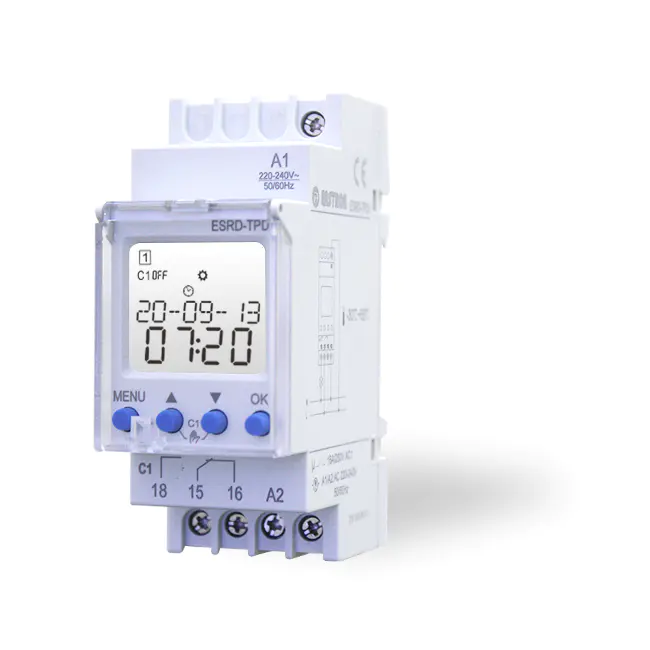

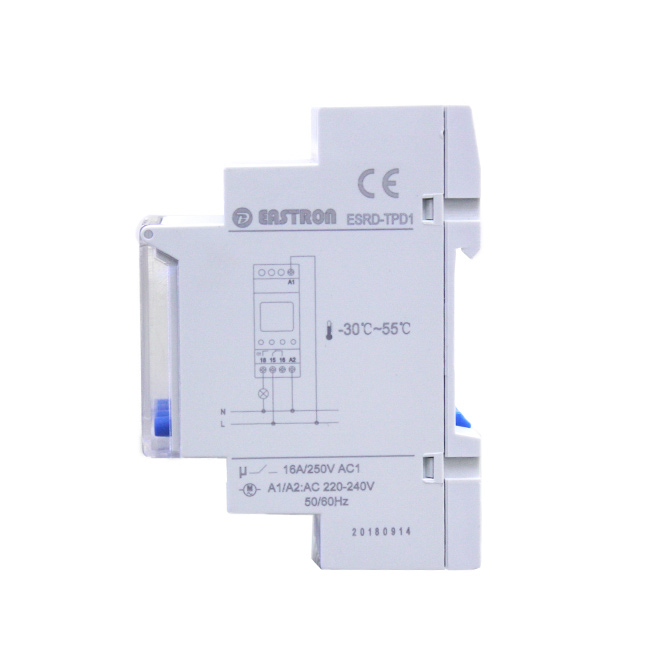

Pulse Program Single Channel Digital Weekly Time Switch Eastron ESRD-TPD1
- Weekly time switch with pulse program
- 3 or 10 years power reserve(lithium battery).
- 52 programs
- Sealable cover of the front panel, easy setting by 4 keys.
- Automatic summer/winter time switchover
- LCD display
- Holiday mode.
- Single channel
- Manual control by keys combination.
- Automatic transfer of weekdays
- 220-240VAC or 24-264VAC/DC input supply.
- 2 module Din-rail mounting
|
Technical data |
|
|
Supply terminals |
A1-A2 |
|
Rated voltage |
AC/DC 24-264V |
|
Rated frequency |
50/60HZ |
|
Power consumption |
1W |
|
Number of channels |
1 |
|
Number of programs |
52 |
|
Program |
Weekly, daily, pulse |
|
Operating modes |
Manual, automatic, holiday |
|
Summer/ winter time |
Off, automatic changes |
|
Time tolerance |
<1 s/day at 25 ℃ |
|
Power reserve |
10 years |
|
Number of contacts |
16A/250VAC1 |
|
Switching capacity |
4000VA/AC1, 384W/DC |
|
Mechanical life |
106 |
|
Rated insulation voltage |
250V |
|
Protection degree |
IP20 |
|
Pollution degree |
3 |
|
Ambient temperature |
-20 ℃~55 ℃ |
|
Storage temperature |
-30 ℃~70 ℃ |
|
Wire size |
1mm2 〜4mm2 |
|
Standard |
IEC/EN60730-1/IEC/EN60730-2-7 |
