Dispensing

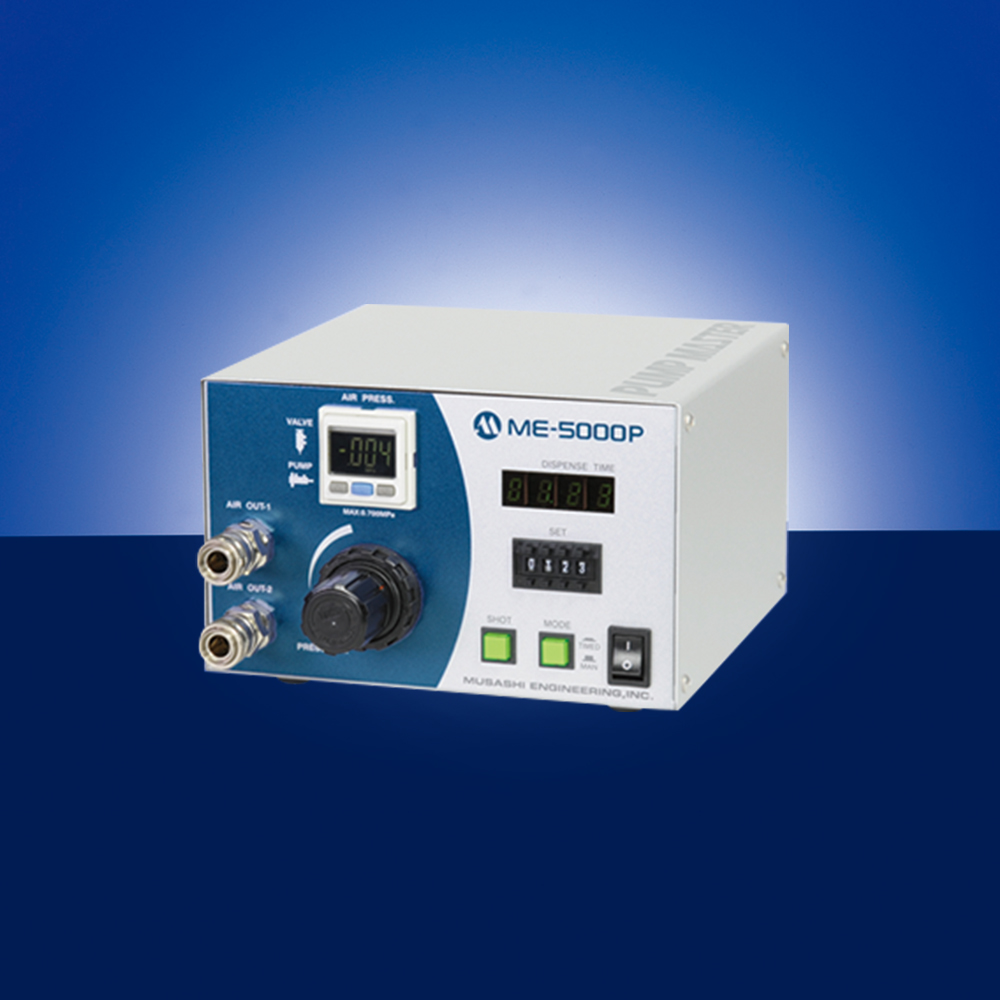

Pump controller Musashi ME-5000P
- For JUSTRO PUMP
- CE Marking certified, EU RoHS compliant.
- ME-5000P
| Model | ME-5000P | |
| Control system | Electro/pneumatic method | |
| Valve actuation pressure setting range | 0.200 to 0.700 MPa | |
| Time setting range of fluid valve opening | 0.010 to 9.999 s 0.01 to 99.99 s 0.1 to 999.9 s 1 to 9999 s |
|
| External Input/ output signal | Input | Dispense |
| Output | Dispensing completion | |
| Rated voltage and frequency | AC100-240 V 50/60 Hz | |
| Power consumption | 5 W | |
| External dimensions | W175×D175×H108 mm | |
| Weight | 2.0 kg | |
