Mold Parts

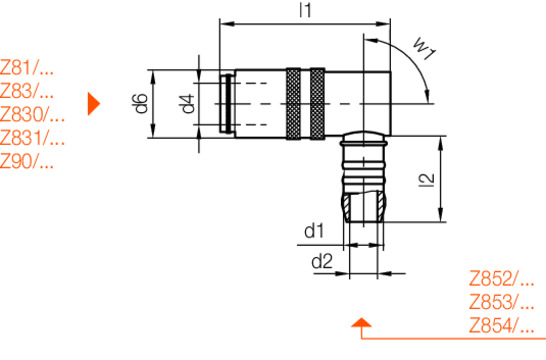

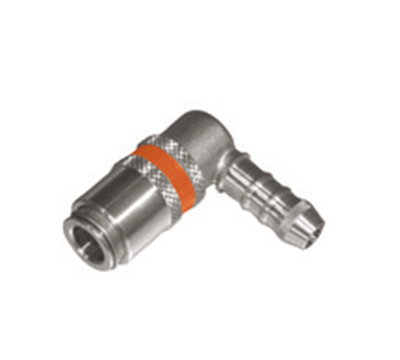

Rapid coupling, open flow, 90° angled
| p | l2 | l1 | d6 | d4 | d2 | d1 | w1 | Product |
|---|---|---|---|---|---|---|---|---|
| 25 | 24 | 41 | 17 | 9 | 6 | 9 | 90 |
Z801HT/9x90
|
| 25 | 28 | 51 | 22 | 13 | 9 | 13 | 90 |
Z801HT/13x90
|
