    Mold Parts

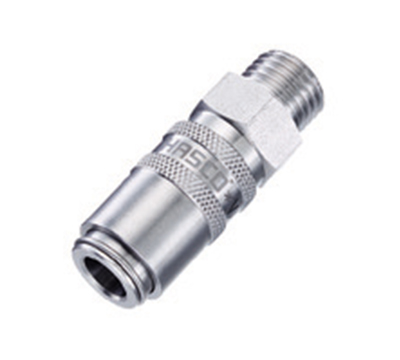

    Rapid coupling, Stainless Steel, open flow

    • Hasco Z808/d4xd7/Mat
    • 1.4305
    • max. 25 bar
    Rapid coupling, Stainless Steel, open flow

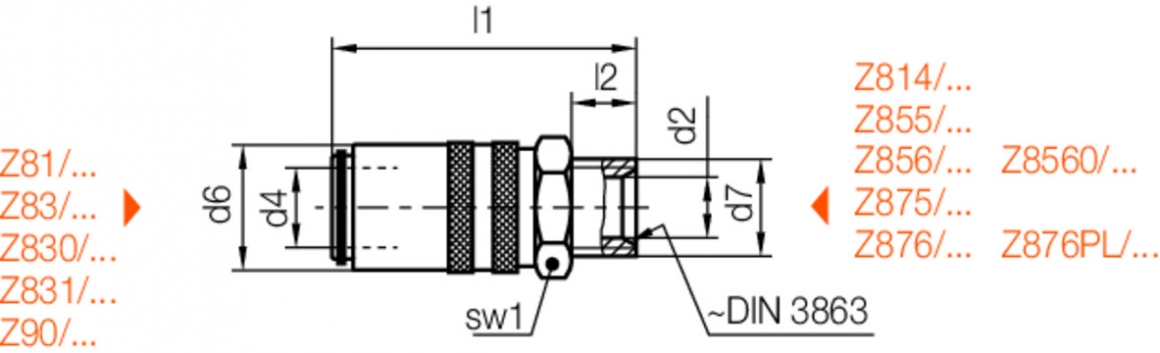

    351281637434119784-DESKTOP-DEFAULT


    p sw1 l2 l1 d6 d2 d4 d7 Mat Product
    25 17 9 48 17 6 9 M14x1,5 VA
    Z808/9x14x1,5/VA
    25 22 9 51,5 22 9 13 M16x1,5 VA
    Z808/13x16x1,5/VA

    The new HASCO cooling range in stainless steel is employed in cleanrooms or medical technology applications for the temperature control of injection moulds in reliable processes, using hot/cold water or oil. The high-quality 1.4305 material of the HASCO coupling system guarantees reliable and durable temperature control applications. The special FKM materials of the O-rings are eminently suitable for high temperature applications. The low compression set allows optimum and reliable deployment. Production losses due to leaks are considerably reduced.


    • Ideal for medical and clean-room technology
    • Seals in special FKM
    • Standard system: ≤ 150°C (water), ≤ 200°C (oil)
    • HT-System: ≤ 180°C (water), ≤ 220°C (oil)
    • Low compression set
    • Thread tightness even with large temperature differences
    • Choice between open flow, or shut-off valves on one or both sides
    • Quality material 1.4305
    • Damage to functional surfaces is avoided
    • Easy one-hand operation
    • Compatible with the HASCO brass cooling range
