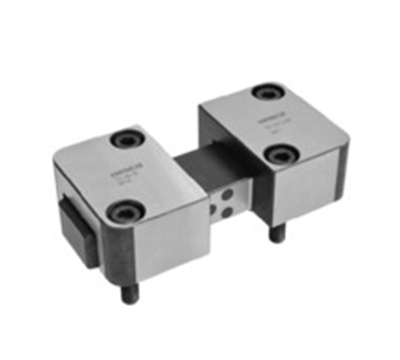

Rectangular guide unit

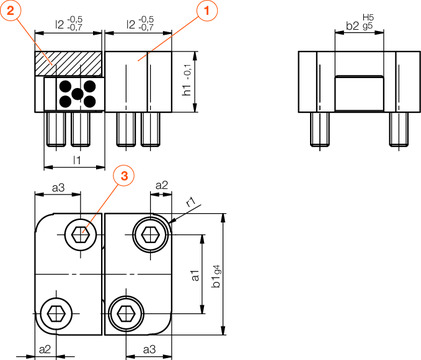

| Pos3 | Pos2 | Pos1 | r1 | a3 | a2 | a1 | h1 | b1 | l2 | b2 | l1 | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z31/6x25 | Z17/22/16 | Z07/22/16x20 | 6 | 15 | 7 | 26 | 20 | 40 | 22 | 16 | 20 |
Z0717/22x16x20
|
| Z31/6x25 | Z17/22/16 | Z07/22/16x40 | 6 | 15 | 7 | 26 | 20 | 40 | 22 | 16 | 40 |
Z0717/22x16x40
|
| Z31/6x25 | Z17/27/20 | Z07/27/20x25 | 6 | 19 | 7 | 31 | 22 | 45 | 27 | 20 | 25 |
Z0717/27x20x25
|
| Z31/6x25 | Z17/27/20 | Z07/27/20x50 | 6 | 19 | 7 | 31 | 22 | 45 | 27 | 20 | 50 |
Z0717/27x20x50
|
| Z31/6x30 | Z17/36/25 | Z07/36/25x32 | 8 | 27 | 9 | 35 | 25 | 50 | 36 | 25 | 32 |
Z0717/36x25x32
|
| Z31/6x30 | Z17/36/25 | Z07/36/25x63 | 8 | 27 | 9 | 35 | 25 | 50 | 36 | 25 | 63 |
Z0717/36x25x63
|
| Z31/8x40 | Z17/46/32 | Z07/46/32x40 | 8 | 35 | 11 | 45 | 32 | 63 | 46 | 32 | 40 |
Z0717/46x32x40
|
| Z31/8x40 | Z17/46/32 | Z07/46/32x80 | 8 | 35 | 11 | 45 | 32 | 63 | 46 | 32 | 80 |
Z0717/46x32x80
|
| Z31/10x45 | Z17/56/40 | Z07/56/40x50 | 10 | 40 | 15 | 60 | 36 | 85 | 56 | 40 | 50 |
Z0717/56x40x50
|
| Z31/10x45 | Z17/56/40 | Z07/56/40x100 | 10 | 40 | 15 | 60 | 36 | 85 | 56 | 40 | 100 |
Z0717/56x40x100
|
