    Sensor

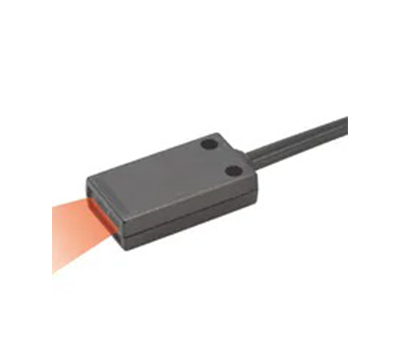

    Reflective Fiber Unit

    Model No.:Keyence FU-11

    Specifications


    Model

    FU-11*1

    Fibre unit length

    2 m78.74" free-cut

    Fibre unit diameter

    ø2.2×2

    Minimum bend radius

    R25 mm0.984"

    Minimum detectable object

    Metal wire (parallel) with a diameter of 0.005 mm0.0002" *2

    Environmental resistance

    Ambient temperature

    -40 to +70 °C -40 to 158 °F

    Weight

    Approx. 19 g

    *1 For details on the detecting distance, see the fiber amplifier catalog.
    *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
