    Sensor

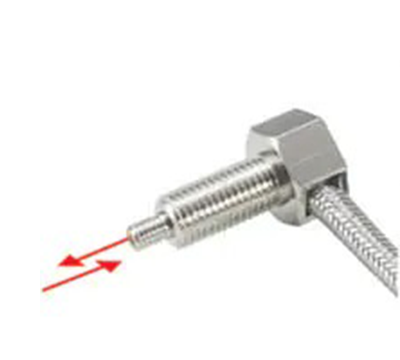

    Reflective Fiber Unit

    Model No.:Keyence FU-35TG

    Specifications


    Model

    FU-35TG*1

    Size

    M6

    Detection arrangement

    Coaxial

    Fibre unit length

    1 m39.37" cannot be cut

    Shape

    Threaded

    Minimum bend radius

    R10 mm0.394" , stainless

    Minimum detectable object

    Gold wire with a diameter of 0.005 mm0.0002" *2

    Environmental resistance

    Ambient temperature

    -40 to +50 °C -40 to 122 °F

    Weight

    Approx. 32 g

    *1 For details on the detecting distance, see the fiber amplifier catalog.
    *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
