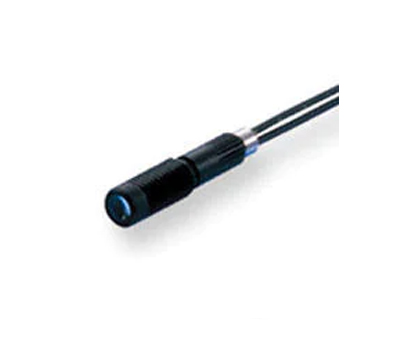

Reflective Sensor Head, Spot Type, Compact, Straight

Model

CZ-10

Type

Reflective (Small size
adjustable spot)

Detecting area

10 to 30 mm0.39" to 1.18"

Smallest spot diameter

0.9 to 3.5 mm dia.0.04" to 0.14"

Allowable bending radius

R25 mm R0.98"

Cable length

2 m (free-cut) 6.6'

Environmental resistance

Enclosure rating

IP40

Ambient temperature

-40 to +70 °C -40 to 158 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Material

Fiber: Plastic (Polyethylene sheathed)

Case material

Lens case: Aluminium, Fibre case: Stainless steel

Weight

Approx. 5 g
