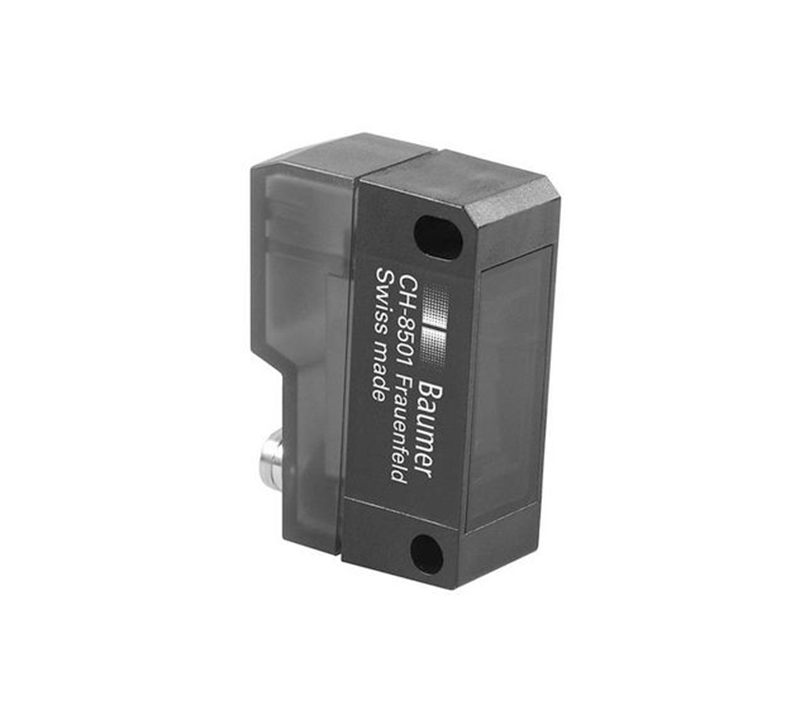

Retro-reflective sensors Baumer FPDK 14P5101/S35A
| general data |
| type |
retro-reflective sensor |
| light source |
pulsed red LED |
| actual range Sb |
7 m |
| nominal range Sn |
7.2 m |
| polarization filter |
yes |
| alignment / soiled lens indicator |
flashing light indicator |
| light indicator |
LED yellow |
| sensitivity adjustment |
no |
| wave length |
660 nm |
| suppression of reciprocal influence |
yes |
| electrical data |
| response time / release time |
< 1 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
25 mA |
| current consumption typ. |
20 mA |
| voltage drop Vd |
< 1.8 VDC |
| output function |
light / dark operate |
| output circuit |
PNP |
| output current |
< 100 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
14.8 mm |
| height / length |
43 mm |
| depth |
31 mm |
| type |
rectangular |
| housing material |
plastic (ASA, MABS) |
| front (optics) |
PMMA |
| connection types |
connector M8 4 pin |
| ambient conditions |
| operating temperature |
-25 ... +65 °C |
| protection class |
IP 67 |
