Sensor

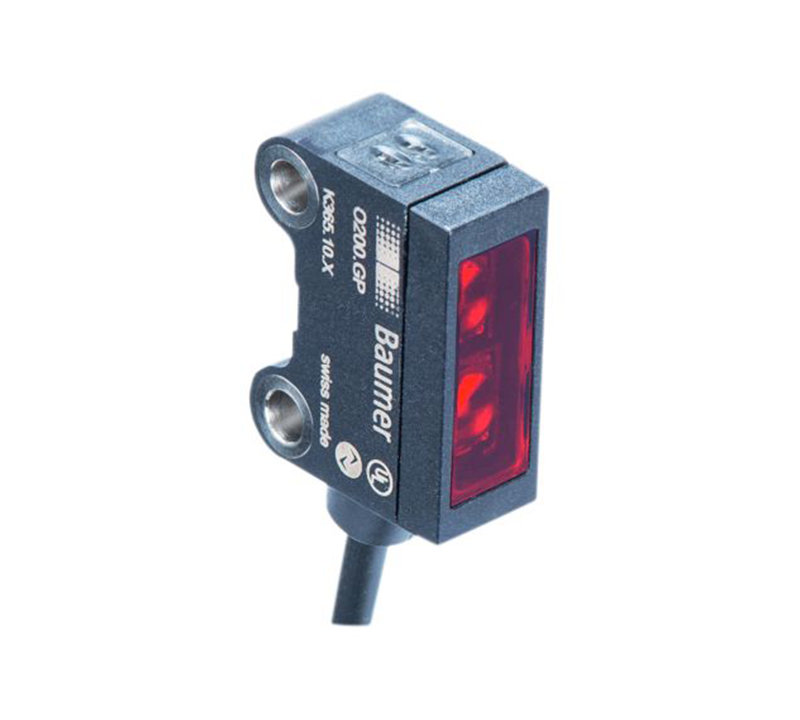

Retro-reflective sensors Baumer O200.RR-11212601
| general data |
| type |
retro-reflective sensor |
| light source |
pulsed red LED |
| actual range Sb |
3 m |
| nominal range Sn |
4 m |
| smallest object recognizable typ. |
7 mm (FTAR 013A000) |
| polarization filter |
yes |
| alignment / soiled lens indicator |
flashing output indicator |
| output indicator |
LED yellow |
| power on indication |
LED green |
| sensitivity adjustment |
no |
| wave length |
644 nm |
| suppression of reciprocal influence |
yes |
| alignment optical axis |
< 1,5° |
| electrical data |
| response time / release time |
< 0,5 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
20 mA (@ 30 VDC) |
| current consumption typ. |
16 mA (@ 24 VDC) |
| voltage drop Vd |
< 2 VDC |
| output function |
light / dark operate |
| output circuit |
PNP complementary |
| output current |
< 50 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
8 mm |
| height / length |
25,1 mm |
| depth |
15,8 mm |
| type |
rectangular |
| mechanical mounting |
sleeve smooth (stainless steel) |
| housing material |
plastic (ASA, PMMA) |
| front (optics) |
PMMA |
| connection types |
flylead connector M8 4 pin, L=200 mm |
| cable characteristics |
PVC / PVC 4 x 0,08 mm² |
| ambient conditions |
| operating temperature |
-25 ... +50 °C |
| protection class |
IP 67 |
