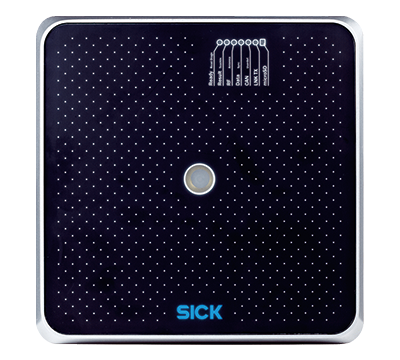

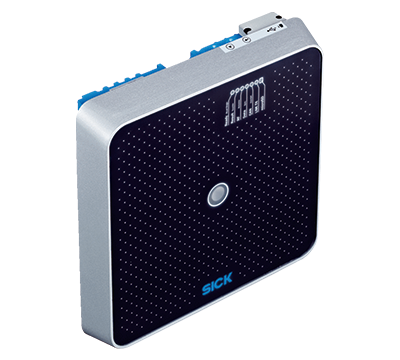

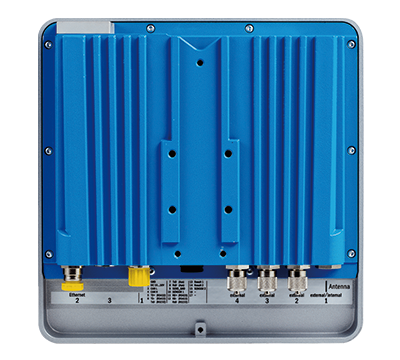

    RFID SICK RFU63x / RFU630-131xx

    Type:RFU630-13105
    Part No.:1057943
    add to cart Inquiry Now
    RFID SICK RFU63x / RFU630-131xx RFU630-13105

    Features
    Version Long Range
    Product category RFID read/write device with integrated antenna
    Radio approval

    China

    Thailand
    Frequency band UHF (860 MHz ... 960 MHz)
    Carrier frequency 920.625 MHz ... 924.375 MHz
    Output power 2 W (ERP, with integrated antenna, alternatively 30 dBm at the external antenna port, output power adjustable)
    RFID standard EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C
    Modulation PR-ASK, DSB-ASK
    Read range ≤ 10 m 1)
    Antenna Integrated
    Transmitting power Adjustable
    Polarization Circular
    Axial ratio Typ. 2 dB
    Aperture angle 72°
    Front-to-back ratio > 17 dB
    External antennas 3 external antennas (Up to + 30 dBm, can be adjusted separately)
    Further functions Diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6U-P00100 (for firmware ≥ 2.0.0)
    • 1) Depending on transponder used and ambient conditions.

    Mechanics/electronics
    Connection type

    1 x M12, 17-pin male connector, A-coded

    1 x M12, 4-pin female connector, D-coded

    1 x USB, 5-pin micro-B socket
    Supply voltage 18 V DC ... 30 V DC
    Power consumption Typ. 20 W
    Housing Aluminum die cast
    Housing color Blue, black, silver
    Enclosure rating IP67
    Protection class III
    Weight 2.6 kg
    Dimensions (L x W x H) 239 mm x 239 mm x 64 mm
    MTBF 28 years 1)
    • 1) Operation at +25 °C.

    Interfaces
    Ethernet ✔ , TCP/IP, OPC UA
    Remark Companion Spec V1.0 from firmware 2.20
    Function Host, AUX
    Data transmission rate 10/100 MBit/s
    PROFINET ✔
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2), Host
    Data transmission rate 10/100 MBit/s
    EtherNet/IP™ ✔
    Function Host
    Data transmission rate 10/100 MBit/s
    EtherCAT® ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Function Host
    Serial ✔ , RS-232, RS-422
    Remark RS-422 only via 4-wire
    Function Host, AUX
    Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud
    CAN ✔
    Remark CSN (SICK CAN Sensor Network)
    Function Host
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    Function Host
    USB ✔
    Remark USB 2.0
    Function AUX
    CANopen ✔
    Function Host
    Digital inputs 2 (physical, 2 additional logical inputs via optional CMC600 parameter memory in CDB620 / CDM420)
    Digital outputs 2 (physical, 2 additional logical outputs via optional CMC600 parameter memory in CDB620 / CDM420)
    Optical indicators

    7 LEDs, multi-color (device status)

    1 RGB LED (Process feedback)
    Acoustic indicators 1 beeper (Feedback)
    Control elements 2 buttons (choose and start/stop functions)
    Operator interfaces Web server
    Configuration software SOPAS ET 1)
    Programming interface Application-specific programming using the SICK AppStudio development environment
    Memory card microSD memory card (parameter cloning, data storage)
    • 1) Another alternative is to generate your own configuration tools based on the SICK command language CoLa (e.g. in your own software or on PLC function blocks).

    Ambient data
    Electromagnetic compatibility (EMC) EN 301489-3
    Vibration resistance EN 60068-2-64:2008-02
    Shock resistance EN 60068-2-27:2009-05
    Ambient operating temperature –30 °C ... +60 °C 1)
    Storage temperature –30 °C ... +70 °C
    Permissible relative humidity ± 90 %, Non-condensing
    • 1) From Firmware version V2.02.

    Classifications
    ECl@ss 5.0 27280401
    ECl@ss 5.1.4 27280401
    ECl@ss 6.0 27280401
    ECl@ss 6.2 27280401
    ECl@ss 7.0 27280401
    ECl@ss 8.0 27280401
    ECl@ss 8.1 27280401
    ECl@ss 9.0 27280401
    ECl@ss 10.0 27280401
    ECl@ss 11.0 27280401
    ETIM 6.0 EC002998
    ETIM 7.0 EC002998
    ETIM 8.0 EC002998
    UNSPSC 16.0901 52161523
