Sensor
|
Model |

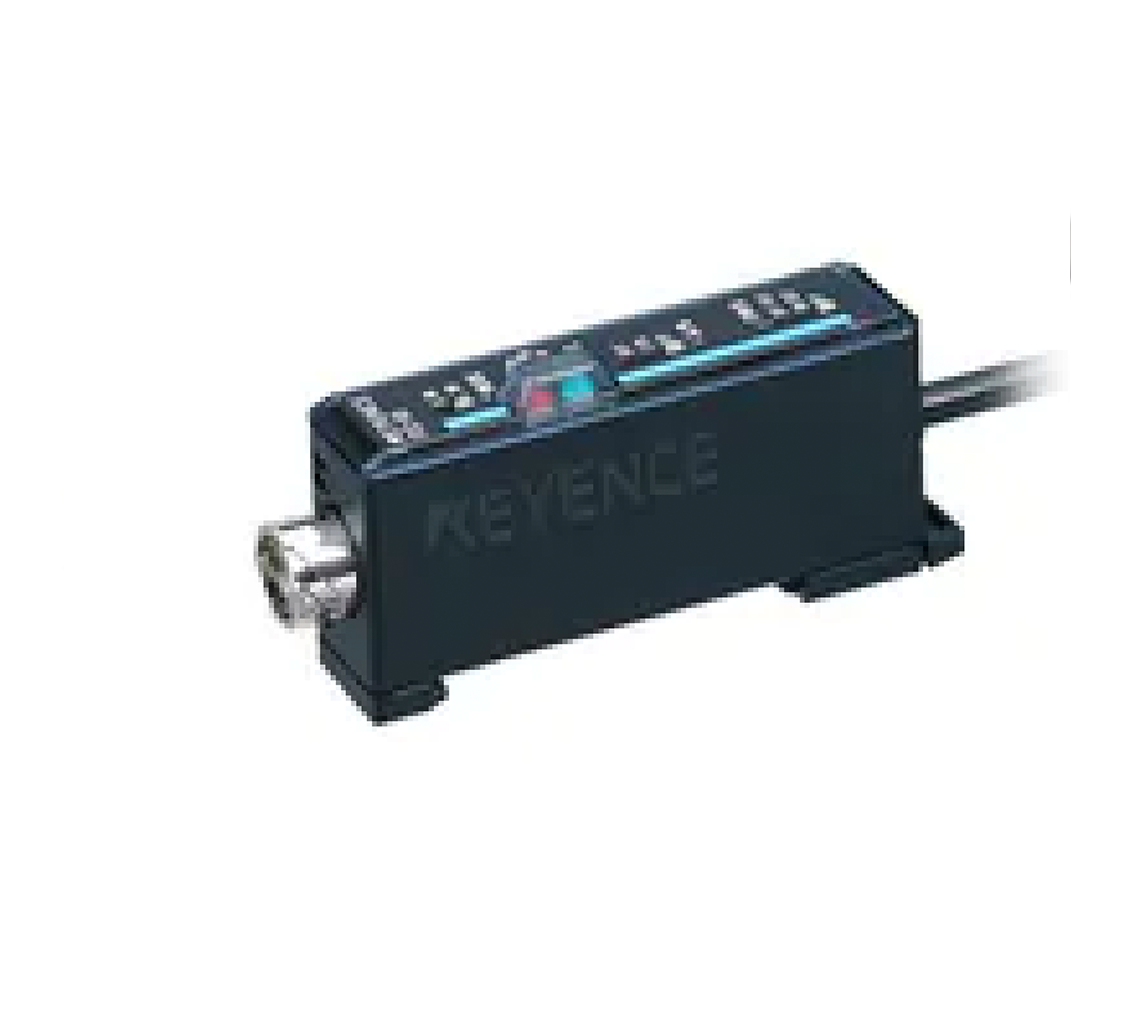

FS2-65P |
|||
|
Type |
Trimmer：Hohe Ansprechgeschwindigkeit |
|||
|
Light source |
Red LED |
|||
|
Sensitivity adjustment |
8-turn trimmer |
|||
|
Response time |
50 µs |
|||
|
Operation mode |
LIGHT-ON/DARK-ON (switch-selectable) |
|||
|
Indicator lamp |
Output: Red LED |
|||
|
Timer function |
ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable) |
|||
|
External calibration input signal |
― |
|||
|
Buzzer mode |
Buzzer ON when control output turns ON/Buzzer ON when alarm output turns ON/Buzzer OFF (switch-selectable) |
|||
|
Output |
PNP output |
|||
|
Control output |
PNP open-collector 100 mA max. (30 V max.), Residual voltage 1 V max. |
|||
|
Stability output |
PNP open-collector 50 mA max. (30 V max.), Residual voltage 1 V max. |
|||
|
Protection circuit |
Reversed polarity protection, Overcurrent protection, Surge absorber |
|||
|
Rating |
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
|
Current consumption |
35 mA or less |
|||
|
Environmental resistance |
Ambient light |
Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. |
||
|
Ambient temperature |
-10 to +55 °C 14 to 131 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
500 m/s2, 3 times in each of the X, Y, and Z directions |
|||
|
Material |
Polycarbonate |
|||
|
Weight |
Approx. 61 g |
|||
