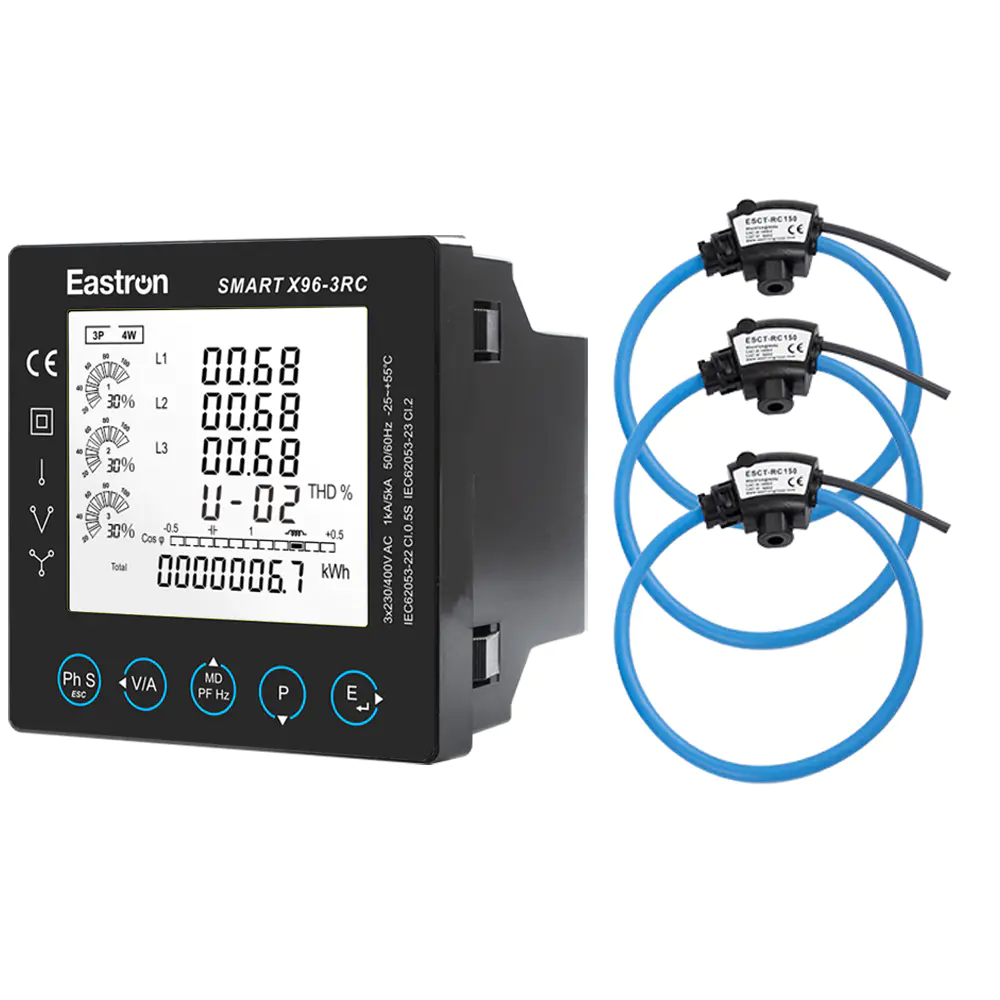

Rogowski Coils Connected Three Phase Multi-function Panel Meters For Electricity Distribution Eastron Smart X96-3RC
- Rogowski Coils Connection
- Aux. Power Supply
- Multi-parameters measurement
- Multi-tariffs (RTC) available
- Up to 63rd THD and IHD
- RS485 Modbus RTU and Pulse outputs
- High Accuracy of Class 0.5s
- Bar graph for power indication
- Backlit LCD display for full viewing angles
- Push-in installation and plug-in connection
|
Electrical characteristics |
||
|
Type of measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement accuracy |
Active power |
1.0% of range maximum |
|
Reactive power |
1.0% of range maximum |
|
|
Apparent power |
1.0% of range maximum |
|
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
1.0% of range maximum to IEC 62053-24 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current |
Rated Current |
85mV/kA |
|
Max Current |
1Ka/ 5kA |
||
|
Voltage |
Aux.Power supply |
230V L-N AC or 120V~380V DC |
|
|
Measured Voltage |
50V ~ 600V (3P4W) 50V ~480V (3P3W) |
||
|
Communication |
RS485 port |
Modbus RTU (RS485) |
|
|
Type |
2-wire half duplex |
||
|
Baud rate |
2400,4800, 9600, 19200, 38400 bps |
||
|
Address |
1 to 247 |
||
|
Pariy |
None (default), Even, Odd |
||
|
Stop Bit |
1 or 2 |
||
|
Mechanical Characteristics |
|
|
Weight |
420g |
|
IP Degree of Protection (IEC 60529) |
IP51 front display |
|
Dimensions (WxHxD) |
96x96X92mm |
|
Panel cut-out |
Vertical |
|
Material of meter case |
Self-extinguishing UL 94 V-0 |
|
Terminals |
Shrouded screw-clamp. |
|
Environmental Characteristics |
|
|
Operating Temperature |
-25 to 55°C |
|
Storage Temperature |
-40 to 70°C |
|
Humidity Rating |
<95% RH at 50 °C (non-condensing) |
|
Pollution Degree |
2 |
|
Altitude |
2000m |
