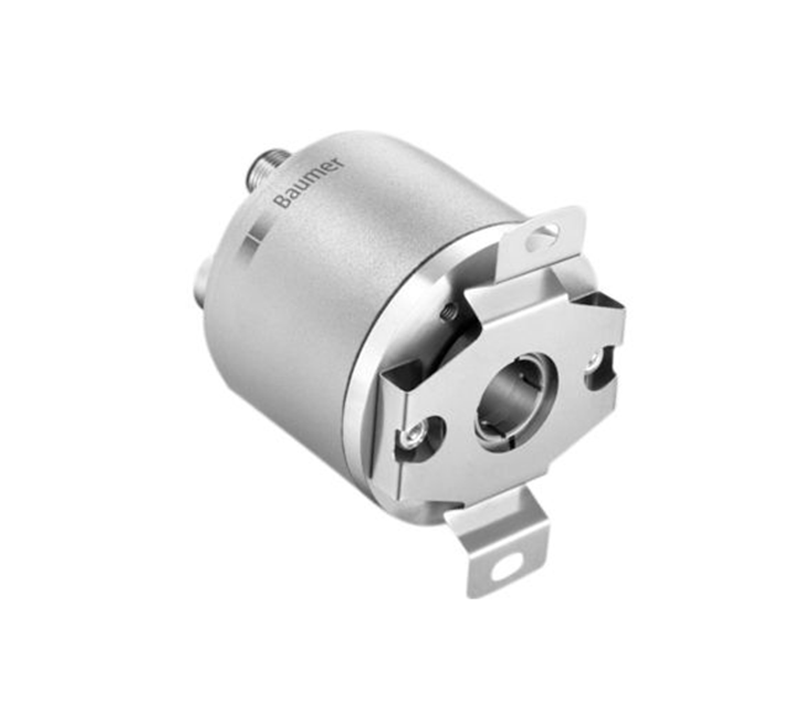

Sensor
| Technical Data - Electrical Ratings | |
|---|---|
| Voltage Supply | 10...30 VDC |
| Consumption Typ. | 90 mA (24 VDC, w/o load) |
| Initializing Time | ≤10 s after power on |
| Interface | PROFINET IO |
| Function | Multiturn |
| Steps per Revolution | ≤16384 / 14 bit |
| Number of Revolutions | ≤65536 / 16 bit |
| Absolute Accuracy | ±0.15° (+20 ±15 °C), ±0.25° (-40...+85 °C) |
| Sensing Method | Magnetic |
| Interference Immunity | DIN EN 61000-6-2 |
| Emitted Interference | DIN EN 61000-6-4 |
| Status Indicator | 4x LED integrated in housing |
| Technical Data - Mechanical Design | |
| Size (Flange) | ø58 mm |
| Shaft Type | ø10...15 mm (blind hollow shaft) |
| Protection DIN EN 60529 | IP 65 (without shaft seal), IP 67 (with shaft seal) |
| Operating Speed | ≤6000 rpm |
| Starting Torque | ≤2 Ncm (+20 °C, IP 65), ≤2.5 Ncm (+20 °C, IP 67) |
| Materials | Housing: steel zinc-coated, Flange: aluminium, Hollow shaft: stainless steel |
| Operating Temperature | -40...+85 °C (see general information) |
| Relative Humidity | 95 % |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz, DIN EN 60068-2-27 Shock 250 g, 6 ms |
| Weight Approx. | 360 g |
| Connection | Flange connector 3 x M12 |
