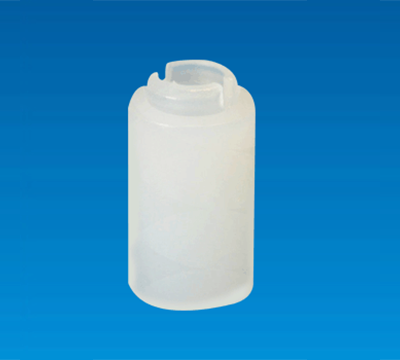

ROUND SPACER SUPPORT ADF-2M

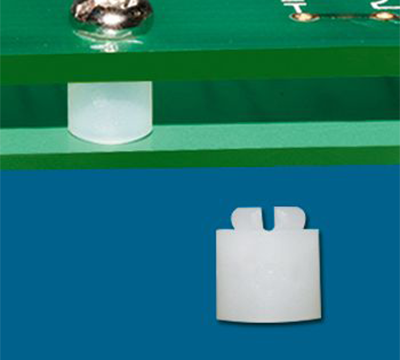

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
ROUND SPACER SUPPORT ADF-2M
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

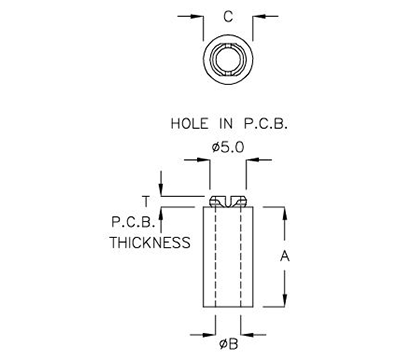

| PART NO | A | B | C | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| ADF-2M | 2.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | 1000 |
| ADF-03 | 3.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-3M | 3.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-04 | 4.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-4M | 4.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-05 | 5.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-5M | 5.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-06 | 6.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-6M | 6.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-07 | 7.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-7M | 7.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-08 | 8.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-8M | 8.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-09 | 9.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-10 | 10.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-11 | 11.0 | Ø3.5 | Ø7.0 | 1.6~1.8 | |
| ADF-17RM | 17.5 | Ø3.5 | Ø7.0 | 1.6~1.8 | 500 |
