ROUND SPACER SUPPORT ADHM-14

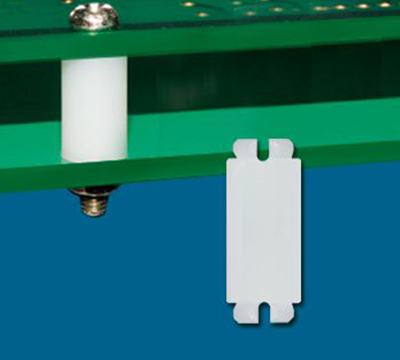

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
ROUND SPACER SUPPORT ADHM-14
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

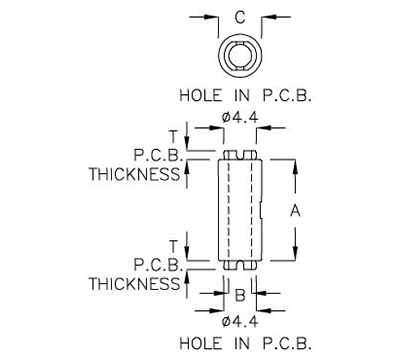

| PART NO | A | B | C | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| ADHM-14 | 14.0 | Ø3.2 | Ø6.0 | 1.4~1.6 | 500 |
