    Round Water-resistant Connectors (M12 Threads) OMRON XS2C-D4S6

    M12 Threads Water-resistant Connectors, for DC, Right-angle, 4 pole, Screw, Applicable cable diameter 3 to 4 mm dia.

    Type:Water-resistant Connectors
    Application:for DC
    Number of poles:4 pole
    Location of lead output:Right-angle
    Fastening method:M12 Threads
    Ratings / Performance

    Type Water-resistant Connectors
    Application for DC
    Number of poles 4 pole
    Plug/socket Socket
    Location of lead output Right-angle
    Fastening method M12 Threads
    Rated voltage 250 VDC
    Rated current 4 A
    Contact resistance 40 mΩ max. (20 mV max, 100 mA max.)
    Applicable cable / Outer diameter 3 to 4 mm dia.
    Ambient temperature range (Operating) -25 to 70 ℃
    Ambient humidity range (Operating) 20 to 85%
    Insulation resistance 1000 MΩ min. (at 500 VDC)
    Dielectric strength 1,500 VAC 1 min (Leakage current 1mA max.)
    Degree of protection IP67
    Applicable connector XS2
    XS5
    Connection method Screw
    Material Pin block: PBT resin
    Cover: PBT resin
    Contact: Copper alloy (gold plating)
    Fixture: Copper alloy (Nickel platin)
    O-ring: Rubber parts
    Insertion durability 200 time

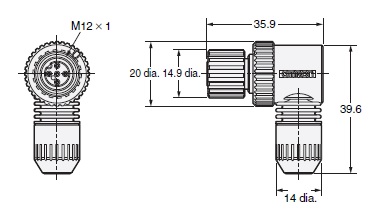

    Dimensions
    round-water-resistant-connectors-(m12-threads)-omron-xs2c-d4s6-2
