Round Water-resistant Connectors (M12 Threads) OMRON XS2F-D821-GH0-C
M12 Threads Water-resistant Connectors, for DC, Standard PVC cable (5 m), Straight, 8 pole
Type：Water-resistant Connectors
Application：for DC
Number of poles：8 pole
Location of lead output：Straight
Fastening method：M12 Threads
Cable length：5 m
Type：Water-resistant Connectors
Application：for DC
Number of poles：8 pole
Location of lead output：Straight
Fastening method：M12 Threads
Cable length：5 m
Ratings / Performance

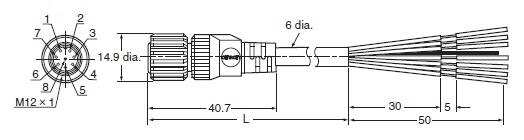

Dimensions
-omron-xs2f-d821-gh0-c.jpg "round-water-resistant-connectors-(m12-threads)-omron-xs2f-d821-gh0-c")
| Type | Water-resistant Connectors | |
|---|---|---|
| Application | for DC | |
| Number of poles | 8 pole | |
| Plug/socket | Socket | |
| Location of lead output | Straight | |
| Fastening method | M12 Threads | |
| Rated voltage | 36 VDC | |
| Rated current | 1.5 A | |
| Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) | |
| Cable specifications | Type | Standard PVC cable |
| Outer diameter | 6 mm dia. | |
| Number of wires | 8 cores | |
| Cable length | 5 m | |
| Ambient temperature range (Operating) | -25 to 70 ℃ | |
| Insulation resistance | 1000 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,000 VAC 1 min (Leakage current 1mA max.) | |
| Degree of protection | IP67 | |
| Material | Pin block: PBT resin Cover: Soft PBT resin Contact: Brass (gold plating) Fixture: Brass (nickel plated) O-ring: Rubber parts Body: Brass (nickel plated) Nut: Brass (nickel plated) |
|
| Insertion durability | 200 time min. | |
Dimensions
