Round Water-resistant Connectors (M12 Threads) OMRON XS2G-D4S4
M12 Threads Water-resistant Connectors, for DC, Right-angle, 4 pole, Screw, Applicable cable diameter 4 to 5 mm dia.
Type：Water-resistant Connectors
Application：for DC
Number of poles：4 pole
Location of lead output：Right-angle
Fastening method：M12 Threads
Type：Water-resistant Connectors
Application：for DC
Number of poles：4 pole
Location of lead output：Right-angle
Fastening method：M12 Threads
Ratings / Performance

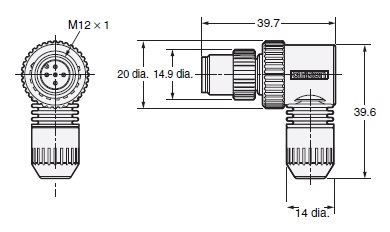

Dimensions
-omron-xs2g-d4s4.jpg "round-water-resistant-connectors-(m12-threads)-omron-xs2g-d4s4")
| Type | Water-resistant Connectors | |
|---|---|---|
| Application | for DC | |
| Number of poles | 4 pole | |
| Plug/socket | Plug | |
| Location of lead output | Right-angle | |
| Fastening method | M12 Threads | |
| Rated voltage | 250 VDC | |
| Rated current | 4 A | |
| Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) | |
| Applicable cable/ Outer diameter | 4 to 5 mm dia. | |
| Ambient temperature range (Operating) | -25 to 70 ℃ | |
| Ambient humidity range (Operating) | 20 to 85% | |
| Insulation resistance | 1000 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,500 VAC 1 min (Leakage current 1mA max.) | |
| Degree of protection | IP67 | |
| Connection method | Screw | |
| Material | Pin block: PBT resin Cover: PBT resin Contact: Copper alloy (gold plating) Fixture: Copper alloy (Nickel platin) O-ring: Rubber parts |
|
| Insertion durability | 200 time | |
Dimensions
