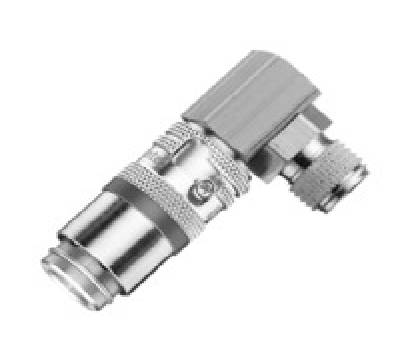

Safety coupling, open flow, 90° angled
With its safety couplings Z80700HT/... to Z80801HT/..., HASCO is setting new safety standards in mould
temperature control. They are ideal for high heating and cooling applications with hot water or heating/cooling oil.
Decoupling can be easily performed thanks to the forced rotating guide on the locking sleeve, but nevertheless
requires an intentional manual unlocking movement. Unintented unlocking is not possible.
| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 15 | 11 | 56 | 18 | 6 | 9 | G1/4 | 90 |
Z80800HT/9xG1/4x90
|
| 25 | 17 | 12,5 | 55,5 | 23,5 | 9 | 13 | G3/8 | 90 |
Z80800HT/13xG3/8x90
|
| 25 | 15 | 11 | 56 | 18 | 9 | 9 | G3/8 | 90 |
Z80800HT/9xG3/8x90
|
| 25 | 15 | 11 | 56 | 18 | 6 | 9 | M14x1,5 | 90 |
Z80800HT/9x14x1,5x90
|
| 25 | 17 | 12 | 55,5 | 23,5 | 9 | 13 | M16x1,5 | 90 |
Z80800HT/13x16x1,5x90
|
| 25 | 17 | 11 | 55,5 | 23,5 | 10 | 13 | M18x1,5 | 90 |
Z80800HT/13x18x1,5x90
|
With its safety couplings Z80700HT/... to Z80801HT/..., HASCO is setting new safety standards in mould
temperature control. They are ideal for high heating and cooling applications with hot water or heating/cooling oil.
Decoupling can be easily performed thanks to the forced rotating guide on the locking sleeve, but nevertheless
requires an intentional manual unlocking movement. Unintented unlocking is not possible.
- Automatic safety lock to prevent unintentional decoupling
- Locking sleeve with forced rotating guide and optical colour coding in the locked state
- High-temperature sealing rings for maximum load
- Optionally with free throughput or locking with connecting thread or hose nozzle
- Available in cooling system diameters of 9 and 13mm
