Mold Parts

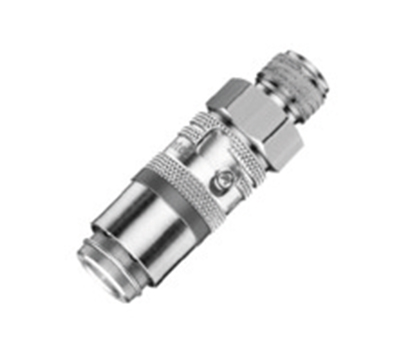

Safety coupling, open flow

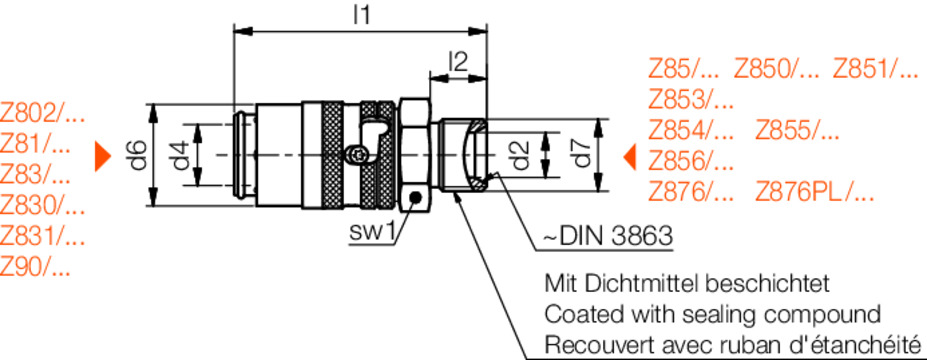

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | Product |
|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 11 | 56,5 | 18 | 6 | 9 | G1/4 |
Z80800HT/9xG1/4
|
| 25 | 17 | 11 | 56,5 | 18 | 8 | 9 | G3/8 |
Z80800HT/9xG3/8
|
| 25 | 17 | 11 | 56,5 | 18 | 6 | 9 | M14x1,5 |
Z80800HT/9x14x1,5
|
| 25 | 22 | 12,5 | 56 | 23,5 | 9 | 13 | G3/8 |
Z80800HT/13xG3/8
|
| 25 | 22 | 12,5 | 56 | 23,5 | 9 | 13 | M16x1,5 |
Z80800HT/13x16x1,5
|
| 25 | 22 | 12,5 | 56 | 23,5 | 9 | 13 | M18x1,5 |
Z80800HT/13x18x1,5
|
With its safety couplings Z80700HT/... to Z80801HT/..., HASCO is setting new safety standards in mould temperature control. They are ideal for high heating and cooling applications with hot water or heating/cooling oil. Decoupling can be easily performed thanks to the forced rotating guide on the locking sleeve, but nevertheless requires an intentional manual unlocking movement. Unintented unlocking is not possible.
- Automatic safety lock to prevent unintentional decoupling
- Locking sleeve with forced rotating guide and optical colour coding in the locked state
- High-temperature sealing rings for maximum load
- Optionally with free throughput or locking with connecting thread or hose nozzle
- Available in cooling system diameters of 9 and 13mm
