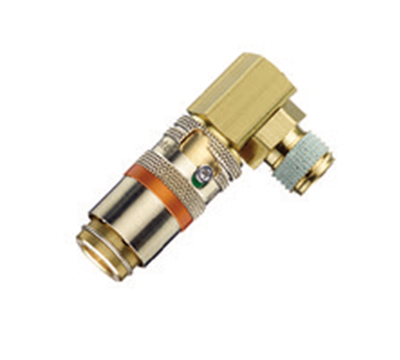

Safety coupling, with valve, 90° angled
- Hasco Z80700HT/d4xd7xw1
- 2.0401
- max. 25 bar
Safety coupling, with valve, 90° angled

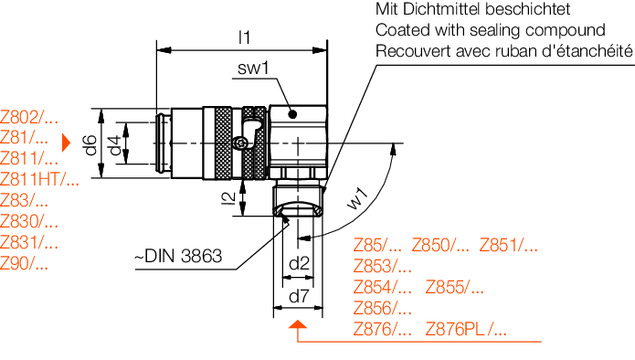

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 11 | 56 | 18 | 6 | 9 | G1/4 | 90 |
Z80700HT/9xG1/4x90
|
| 25 | 17 | 11 | 56 | 18 | 9 | 9 | G3/8 | 90 |
Z80700HT/9xG3/8x90
|
| 25 | 17 | 11 | 56 | 17,2 | 6 | 9 | M14x1,5 | 90 |
Z80700HT/9x14x1,5x90
|
| 25 | 22 | 12,5 | 55,5 | 23,5 | 9 | 13 | G3/8 | 90 |
Z80700HT/13xG3/8x90
|
| 25 | 22 | 12 | 55,5 | 22,5 | 9 | 13 | M16x1,5 | 90 |
Z80700HT/13x16x1,5x90
|
| 25 | 22 | 11 | 55,5 | 23,5 | 10 | 13 | M18x1,5 | 90 |
Z80700HT/13x18x1,5x90
|
