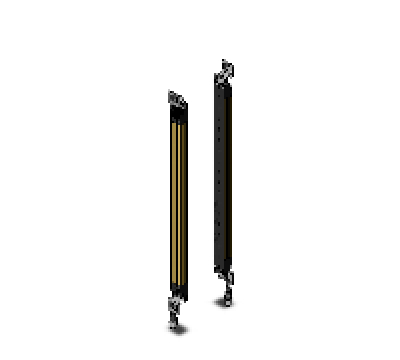

    Safety Light Curtain OMRON F3SJ-A0470P30

    Detection capability: 30 mm dia., 19 axis beams, Protective height: 470 mm, Max. operating range: 9 m, IP65

    Appication:Hand/arm protection
    Detection capability:Opaque objects of 30 mm dia.
    Number of beams:19 axis
    Protective height:470 mm
    Ratings / Performance

    Appication Hand/arm protection
    Detection capability Sensing object Opaque objects
    dia. 30 mm dia.
    Beam gap 25 mm
    Number of beams 19 axis
    Protective height 470 mm
    Lens diameter 5 mm dia.
    Operating Range 0.2 to 9 m
    Response time (Normal mode) ON→OFF 11 ms
    OFF→ON 44 ms
    Light source Infrared LED (870 nm)
    Startup waiting time 2 s max. (2.2 s max. for cascade connection)
    Electrical specification Power supply voltage (Vs) 24 VDC±20% Ripple 10% max.
    Current consumption Receiver: 68 mA max. (No load)
    Emitter: 76 mA max. (No load)
    Control output (OSSD) Two PNP transistor outputs
    Load current: 300 mA max.
    Residual voltage: 2 V max.
    Capacitive load: 2.2 µF
    Leakage current: 1 mA max.
    Auxiliary output (non-safety output)   One PNP transistor output
    Load current: 300 mA max.
    Residual voltage: 2 V max.
    Leakage current: 1 mA max.
    External indicator output (non-safety output) Available indicators: Incandescent lamp: 24 VDC/3 to 7 W, LED lamp: Load current: 10 to 300 mA max., Leak current: 1 mA max. (To use an external indicator, an F39-JJ3N universal indicator cable or an F39-A01P[]-PAC dedicated external indicator kit is required.)
    Output operation mode Safety output: Light-ON
    Auxiliary output 1: Reverse output of safety output
    Auxiliary output 2: Turns ON when the point of 30,000 operating hours is reached
    External indicator output 1: Reverse output of safety output for a basic system, ON when muting/override for a muting system
    External indicator output 2: ON when lock-out for a basic system, ON when muting/override for a muting system
    Input voltage (ON voltage) RESET 9 V to Vs (short circuit current: approx. 2.0 mA)
    EDM 9 V to Vs (short circuit current: approx. 3.5 mA)
    TEST 9 V to Vs (short circuit current: approx. 2.0 mA)
    MUTE 9 V to Vs (short circuit current: approx. 2.0 mA)
    Interlock select 9 V to Vs (short circuit current: approx. 2.0 mA)
    Input voltage (OFF voltage) RESET 0 to 1.5 V, or open
    EDM Open
    TEST 0 to 1.5 V, or open
    MUTE 0 to 1.5 V, or open
    Interlock select 0 to 1.5 V, or open
    Input voltage (Caption) The Vs indicates a supply voltage value in your environment
    Protective Circuit Output short-circuit protection
    Power supply reverse polarity protection
    Insulation resistance 20 MΩ min. (at 500 VDC)
    Dielectric strength 1000 VAC 50/60 Hz for 1 min
    Functional specification Mutual interference prevention Interference light prevention algorithm, sensing distance change function
    Cascade connection Number of connections 4 set max. (between F3SJ-Bs only)
    Total number of beams 400 axes
    Cable length between sensors 15 m max. (not including cascading cable (F39-JJR3W or F39-JJR□L) and power cable)
    Test functions Self-test (at power-on, and during operation)
    External test (light emission stop function by test input)
    Safety-Related Functions Start interlock, restart interlock (Must be set with a setting tool when the muting function is used.)
    EDM
    Muting (Lamp burnout detection, override function included. F39-CN6 key cap for muting is required.)
    Fixed blanking (must be set by a setting tool)
    Floating blanking (must be set by a setting tool)
    Connections Type of Connection M12 connectors: 8-pin
    Environmental Ambient temperature (Operating) -10 to 55 ℃(non-icing)
    Ambient temperature (Storage) -30 to 70 ℃
    Ambient humidity (Operating) 35 to 85%(non-condensing)
    Ambient humidity (Storage) 35 to 95%
    Ambient illuminance Incandescent lamp: 3000 lx max.
    Sunlight: 10000 lx max.
    Degree of Protection IP65 (IEC60529)
    Vibration resistance 10 to 55 Hz, 0.7 mm double amplitude, for 20 sweeps each in X, Y and Z directions
    Shock resistance 100 m/s2, for 1000 times each in X, Y, and Z directions
    Materials Case: Aluminum, Zinc diecast
    Front window: PMMA resin (acrylic)
    Caps: ABS resin
    Cable: Oil resistant PVC
    Weight Main Unit: Approx. 0.9 kg
    Package: Approx. 1.8 kg
    Accessories Instruction manual
    Error mode label
    Top/bottom mounting bracket (F39-LJ1)
    Quick Installation Manual (QIM)
    Conformity Conformed standards Please check the catalog for details.
    Safety category Safety purpose of category 4, 3, 2, 1, or B
    Accessory (sold separately) Cables Single ended cable: F39-JD3A, F39-JD7A, F39-JD10A, F39-JD15A, F39-JD20A
    Double ended cable: F39-JDR5B, F39-JD1B, F39-JD3B, F39-JD5B, F39-JD7B, F39-JD10B, F39-JD15B, F39-JD20B
    Power cable: F39-JJR3K
    Cascading Cable: F39-JJR3W
    Side-by-side Series connection cable: F39-JJR06L, F39-JJR15L
    Cable for Reduce Wiring: F39-JD0303BA, F39-JD0307BA, F39-JD0310BA, F39-JD0503BA, F39-JD0507BA, F39-JD0510BA, F39-JD1003BA, F39-JD1007BA, F39-JD1010BA
    General External Indicator Cable: F39-JJ3N
    Reduced Wiring Connector: F39-CN5
    Mounting Brackets Standard top/bottom mounting bracket (accessory): F39-LJ1
    Flat side mounting bracket: F39-LJ2
    Free-Location mounting bracket: F39-LJ3
    F3SN Intermediate Bracket Replacement Spacers: F39-LJ3-SN
    Top/bottom mounting bracket B: F39-LJ4
    Bracket for replacing short-length F3SN: F39-LJ5
    Space-saving mounting bracket: F39-LJ8
    Mounting bracket used when replacing an F3W-C: F39-LJ9
    Top/bottom mounting bracket C: F39-LJ11
    Other accessory Safety relay: G7SA-2A2B, G7SA-3A1B, G7S-4A2B-E, G7S-3A3B-E
    Connector Terminal Box/Muting Terminals: F39-TC5P01, F39-TC5P02
    Laser Pointer: F39-PTJ
    Dedicated External Indicator Set: F39-A01PR-PAC, F39-A01PG-PAC, F39-A01PY-PAC
    Mirrors: F39-MLG0406, F39-MLG0610, F39-MLG0711, F39-MLG0914, F39-MLG1067, F39-MLG1219, F39-MLG1422, F39-MLG1626, F39-MLG1830, F39-MLG2134
    Test Rod: F39-TRD30
    End Cap: F39-CN9
    Key Cap for Muting: F39-CN6
    Setting Support Software for the F3SJ: F39-GWUM
    Setting Console: F39-MC21
    Control Unit: F3SP-B1P
    Safety Terminal Relays: F3SP-T01
