    Safety Relays SICK UE403 / Muting Switching Amplifier

    Type:UE403-A0930
    Part No.:1026287
    add to cart Inquiry Now

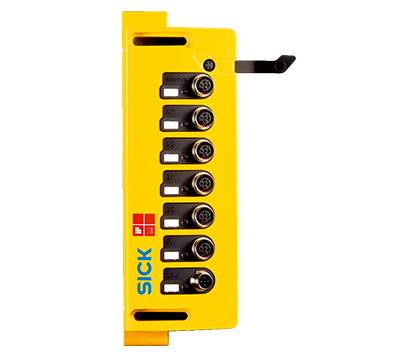

    Safety Relays SICK UE403 / Muting Switching Amplifier UE403-A0930

    Safety-related parameters
    Safety integrity level

    SIL3 (IEC 61508)

    SILCL3 (EN 62061)
    Category Category 4 (EN ISO 13849)
    Performance level PL e (EN ISO 13849)
    PFHD (mean probability of a dangerous failure per hour) 1.0 x 10-8 (EN ISO 13849) 1)
    TM (mission time) 20 years (EN ISO 13849) 1)
    • 1) Only in conjunction with M4000 Advanced, M4000 Advanced A/P and M4000 Advanced Curtain.

    Functions
    Concurrence monitoring ✔
    Monitoring of total muting time ✔
    Sensor gap monitoring ✔
    Belt stop ✔
    Muting with override ✔
    Exit monitoring ✔
    End of muting by ESPE ✔

    Interfaces
    Connection type Female connector M12, 5-pin

    Electrical data
    Protection class III (IEC 61140)
    Supply voltage VS 24 V DC (19.2 V DC ... 28.8 V DC) 1)
    Power consumption ≤ 2 A
    Inputs: override, reset, C1, belt stop, muting sensors
    ON state, switching voltage HIGH 24 V DC (11 V DC ... 30 V DC)
    OFF state, switching voltage LOW 0 V DC (–30 V DC ... 5 V DC)
    Input current HIGH 6 mA ... 15 mA
    Input current LOW –0.5 mA ... 1.5 mA
    Outputs: voltage supply for reset, override, C1
    Supply voltage 24 V DC (15 V DC ... 28.8 V DC)
    Output current ≤ 400 mA 2)
    Outputs: muting sensors
    Supply voltage 24 V DC (15 V DC ... 28.8 V DC)
    Output current ≤ 500 mA 2)
    Muting lamp
    Output current HIGH (monitored) 20 mA ... 400 mA 3)
    Output current HIGH (not monitored) 0 mA ... 400 mA 3)
    • 1) Via connected ESPE.
    • 2) Total of all supply currents from the connections RES/OVR, A1, A2, B1 and B2 (pin 1 in each case): max. 1000 mA.
    • 3) At max. 5 W power consumption.

    Mechanical data
    Dimensions (W x H x D) 76.5 mm x 225.2 mm x 40 mm
    Weight + 600 g
    Mounting Flexible mounting on the M4000 Advanced or directly in the system

    Ambient data
    Enclosure rating IP65 (IEC 60529)
    Ambient operating temperature –30 °C ... +55 °C
    Storage temperature –30 °C ... +70 °C

    Classifications
    ECl@ss 5.0 27371990
    ECl@ss 5.1.4 27371990
    ECl@ss 6.0 27371819
    ECl@ss 6.2 27371819
    ECl@ss 7.0 27371819
    ECl@ss 8.0 27371819
    ECl@ss 8.1 27371819
    ECl@ss 9.0 27371819
    ECl@ss 10.0 27371819
    ECl@ss 11.0 27371819
    ETIM 5.0 EC001449
    ETIM 6.0 EC001449
    ETIM 7.0 EC001449
    ETIM 8.0 EC001449
    UNSPSC 16.0901 41113704
