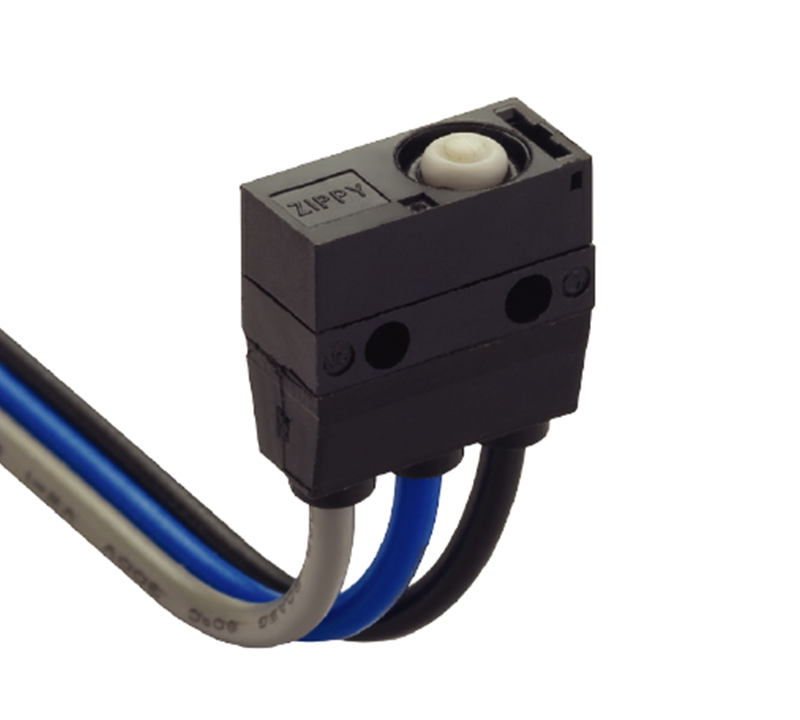

    Sealed Switches Water Proof Switches DFWIP67 Series

    DFWIP67 Series

    SPECIFICATIONS
    Operating frequency(mechanical):
       120 Operation / mim
    Operating frequency(electrical):
       10~30 Operation / mim
    Contact resistance:
       100m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Service life(mechanical)
       Min. 1,000,000 Operations
    Service life(electrical)
       Min. 10,000 Operations



    RATING
    0.1A/3A/5A 125/250VAC,3A 24VDC

    APPLICATION
    Automotive
    Air conditioner
    communication
    Electric tooth brush
    toys



    DIMENSIONS
    DFW67-dim_200

    ORDER INFORMATION
    DFW67-ord_250

    OPERATING CHARACTERISTICS
    DFW67-oper_250
